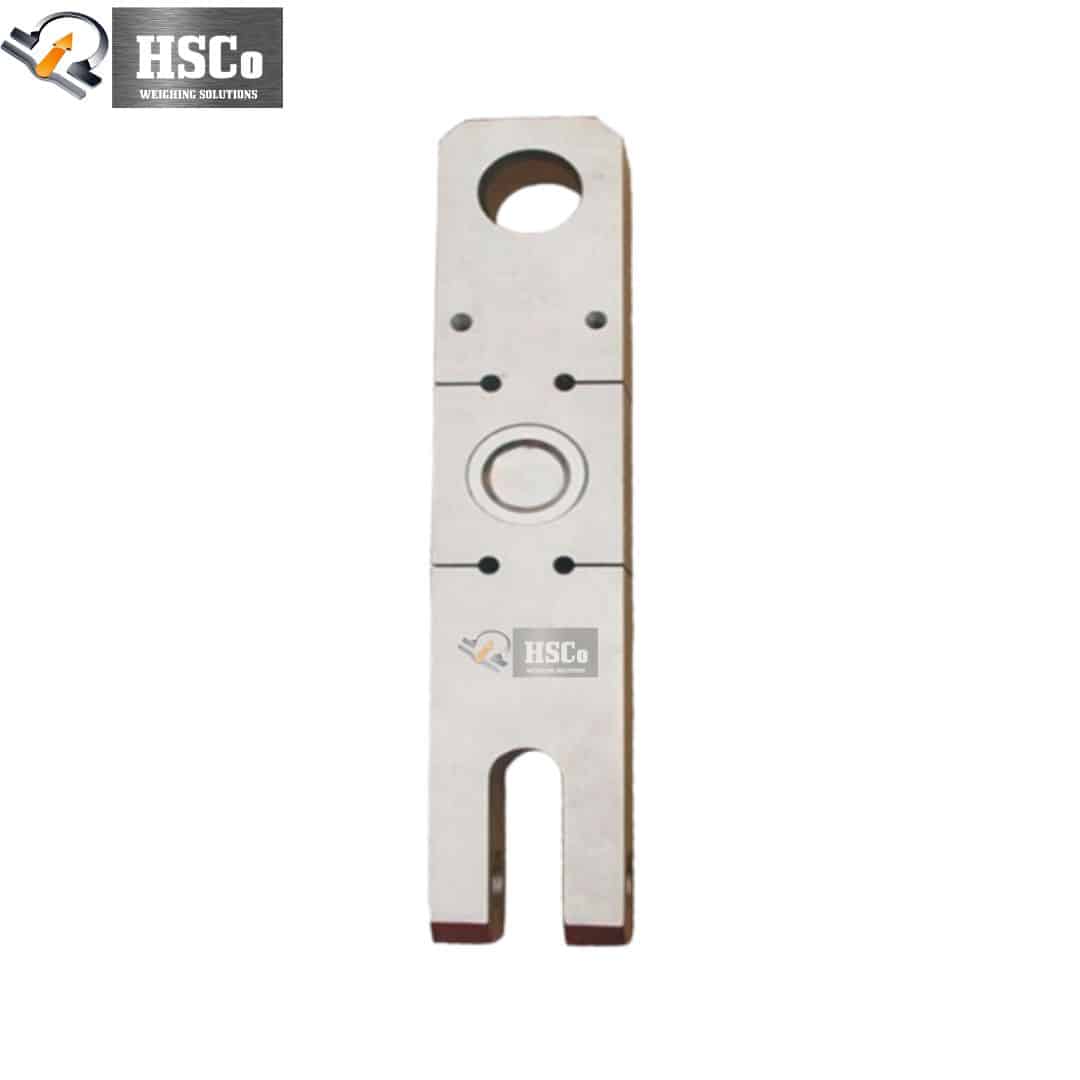

The HSC LCD-1 is a load cell made specially for crane and hook scales. Its body is a single piece of alloy steel with a lifting ring at the top and a hook fitting at the bottom, so the hanging scale assembles quickly. It is strong against overload, accurate to ±0.02% of full scale and resists off-centre loads well. It comes in capacities from 500 kg to 10 t, sealed to IP67 or IP68.
Why crane-scale makers choose it
- Made for hook and crane scales: lifting ring on top, hook fitting below.
- One-piece alloy steel body, strong against overload.
- Accurate: ±0.02% FS; good resistance to off-centre loads.
- Sealed to IP67 or IP68.
- 500 kg to 10 t.
Specifications
| Model | HSC LCD-1 |
|---|---|
| Type | Crane / hook scale load cell |
| Capacities | 500 kg, 1 t, 2 t, 3 t, 5 t, 10 t |
| Sensitivity | 1.5 ± 0.1 mV/V |
| Total error | ≤ ±0.02% FS |
| Creep | 0.03% FS |
| Zero balance | ±1.0% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −5 to +45 °C; operating −35 to +80 °C |
| Overload | Safe 120% FS; limit 150% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Impedance | Input 380 ± 10 Ω; output 380 ± 5 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel |
| Cable | 0.4 m, Ø 5 mm |
| Wiring | Exc + red, Exc − black, Sig + green, Sig − white, shield yellow |
| Standard | Made to OIML R60 |
| Warranty | 1 year |
Dimensions (mm), letters as on the drawing:
| Capacity | A | B | C | D | E | F | G | H | K | P | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 kg, 1 t | 30.5 | 130 | 19 | 13 | 35 | 33 | 10.5 | 16 | 12.5 | 14 | 12.5 |
| 3 t | 58 | 336 | 40 | 29.75 | 79 | 80 | 29 | 45 | 24 | 27 | 21 |
| 5 t | 70 | 365 | 45 | 35 | 95 | 84 | 35 | 48 | 26 | 27 | 25 |
| 10 t | 85 | 387 | 55 | 42 | 103 | 103 | 40 | 60 | 32.5 | 34.75 | 34.5 |
Which load cell?
For tension and compression in an S shape, see the LCS-2 S-type load cell. Browse all load cells.
Where it is used
Crane scales and hook scales.
