Link Load Cell HSC LCD-4 – 5, 7.5 and 12.5 t, Plate-and-Loop, for Crane and Lifting
Price on Request
Plate-and-loop link load cell HSC LCD-4 for crane and lifting weighing: 5, 7.5 or 12.5 t, thin-walled blind-hole design, strong against off-centre loads and impact, moisture-proof IP67 / IP68 seal, 1.5 or 2.0 mV/V, safe 150% / limit 180%. 1-year warranty.

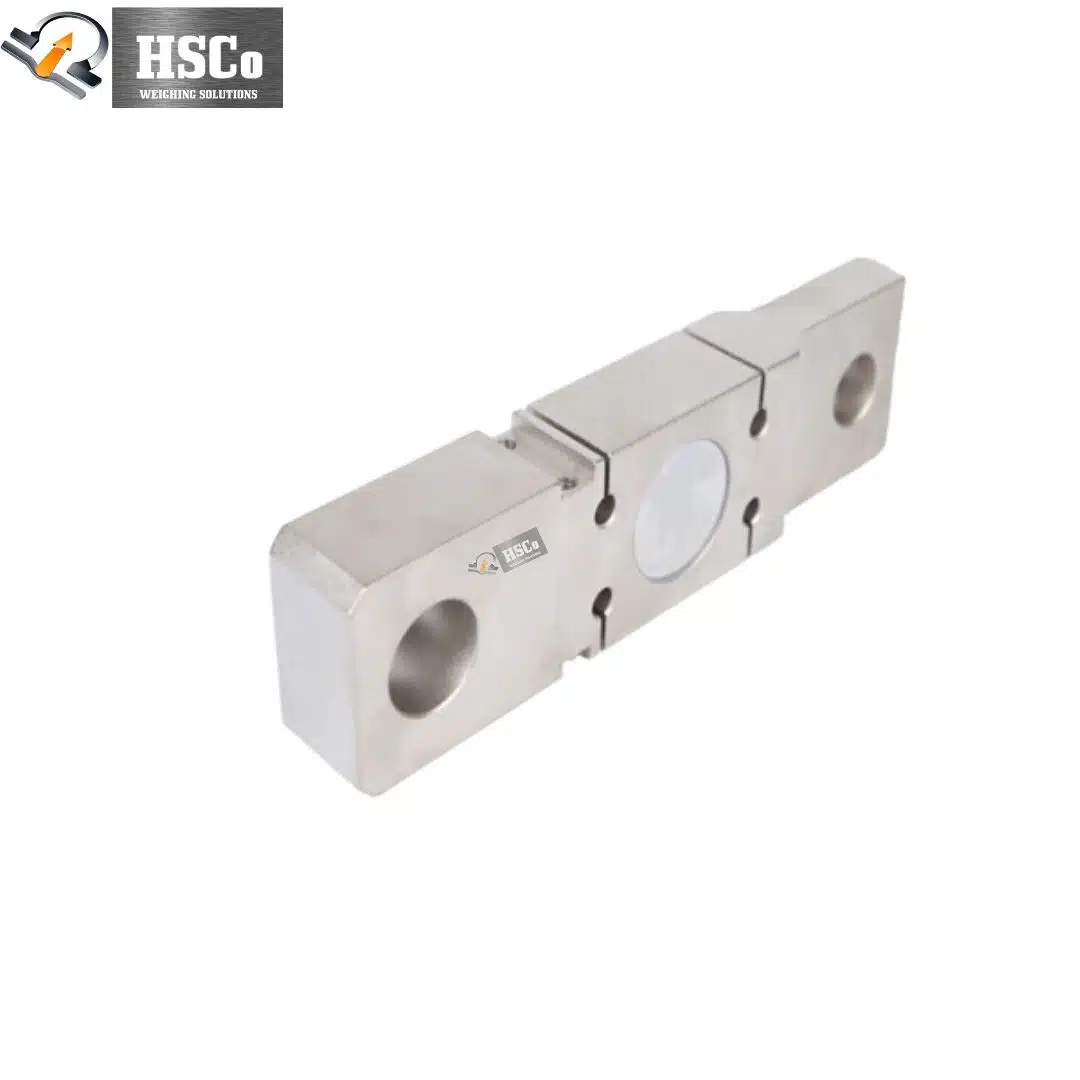

The HSC LCD-4 is a plate-and-loop (link) load cell for crane and lifting weighing, in 5, 7.5 and 12.5 tonne capacities. Its thin-walled blind-hole design gives high precision, it installs easily, and it handles off-centre loads and impact well. After a good moisture-proof seal (IP67 or IP68), it suits all kinds of lifting work. Sensitivity is 1.5 or 2.0 mV/V.
Why scale makers choose it
- 5, 7.5 and 12.5 t link cell.
- Precise thin-walled blind-hole design.
- Handles off-centre loads and impact.
- Sealed: IP67 or IP68.
Specifications
| Model | HSC LCD-4 |
|---|---|
| Type | Plate and loop (link), thin-walled blind hole |
| Capacities | 5, 7.5, 12.5 t |
| Sensitivity | 1.5 ± 0.002 mV/V or 2.0 ± 0.002 mV/V |
| Total error | ±0.05% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Input / output impedance | 380 ± 10 Ω / 380 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 or IP68, moisture-proof seal |
| Material | Alloy steel (stainless steel also listed) |
| Cable | 0.4 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white |
| Standard | OIML R60 |
| Warranty | 1 year |
Dimensions (mm):
| Capacity | A | B | C | D | E | F | G | H | Φ1 | Φ2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 t | 233 | 60 | 34 | 20 | 182 | 70 | 106 | 90 | 25 | 20 |
| 7.5 t | 245 | 60 | 40 | 33 | 181 | 79 | 106 | 90 | 34 | 27 |
| 12.5 t | 275 | 72 | 50 | 33 | 210 | 95 | 122 | 96 | 38 | 27 |
Which load cell?
For a flat plate-ring cell at 7.5 or 10 t, see the LCD-5; for hook-scale cells up to 10 t, the LCD-1. Browse all load cells.
Where it is used
Crane scales and all kinds of lifting work.
Questions buyers ask
5, 7.5 and 12.5 tonnes.
Yes, with a moisture-proof seal to IP67 or IP68.
Excitation + red, excitation − black, signal + green, signal − white.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
