CRHLC Dynamometer / Crane Scale – 3 t to 20 t, 40-Hour Battery
Price range: ₹24,000.00 through ₹60,000.00 (ex. GST) (₹28,320.00 – ₹70,800.00 incl. GST)
Heavy-duty electronic dynamometer (crane scale) for 3–20 t: die-cast aluminium body, shackle and safety hook, bright LED display, 40-hour battery, optional handheld or remote display and printer.
हिंदी में इसे वजन काटा कहते हैं. Vajan Kata (वजन काटा) – all types and prices

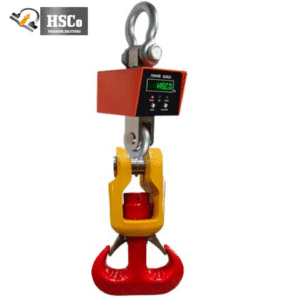

The HSCo CRHLC series is a heavy-duty electronic dynamometer (crane scale) for 3 to 20 tonne loads. A shackle at the top and a safety hook below carry the load through a die-cast aluminium body, and a bright LED display shows the weight, while a 40-hour battery keeps it running through long shifts. It is used for crane load checks, lifting and rigging, steel plants, docks and heavy industry.
Why buyers choose the CRHLC
- Strong and light. A die-cast aluminium body with a 90+ micron coating against rust and corrosion.
- Long battery life. Up to 40 hours on a charge, running on AC 230 V or DC 9 V, with sleep mode to save power.
- Accurate on moving loads. A stability chip for swinging loads, with auto zero tracking and auto calibration.
- Easy to read. A bright LED display, clear in all conditions.
- Grows with you. Optional handheld display, remote or jumbo display, printer and Bluetooth.

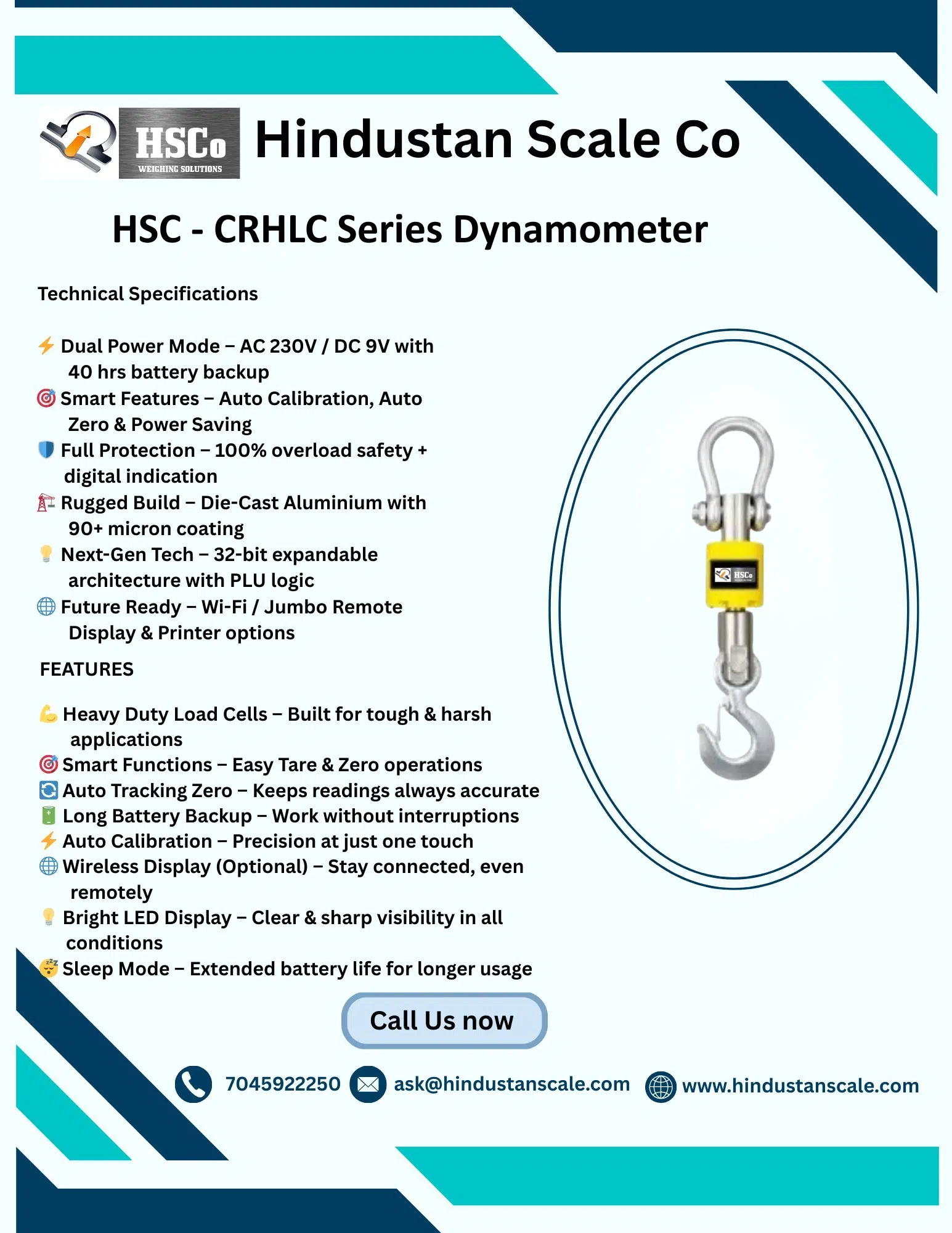

Specifications
| Capacities | 3,000, 5,000, 10,000, 20,000 kg |
|---|---|
| Accuracy options | 1 kg, 2 kg or 5 kg (choose above) |
| Body | Die-cast aluminium, 90+ micron coating |
| Rigging | Shackle top, safety hook bottom; double J hook optional |
| Display | Bright LED |
| Functions | Tare, zero, auto zero tracking, auto calibration, power saving, sleep mode |
| Power | AC 230 V / DC 9 V; battery backup up to 40 hours |
| Load cell overload | 200% |
| Warranty | 1 year |
Options

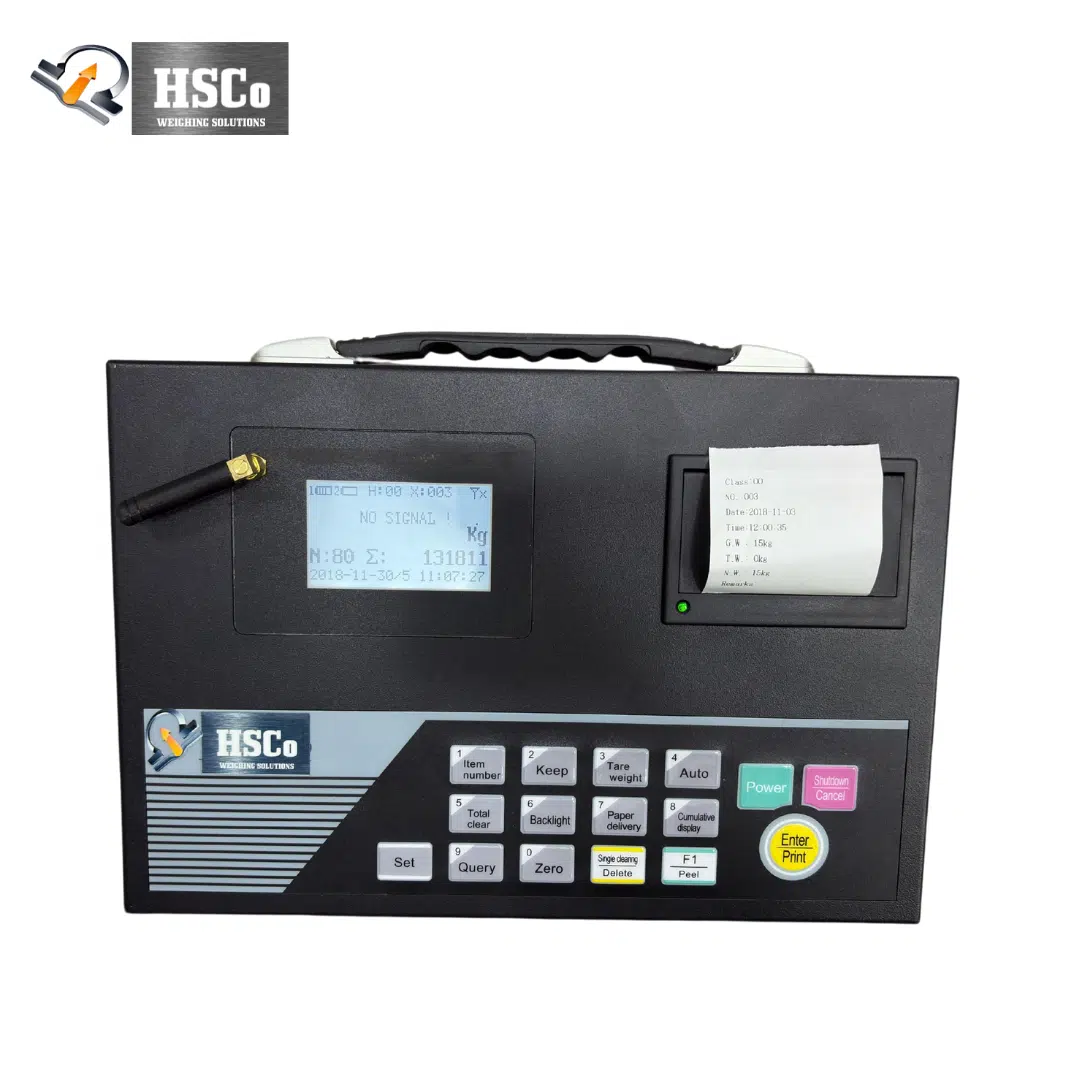

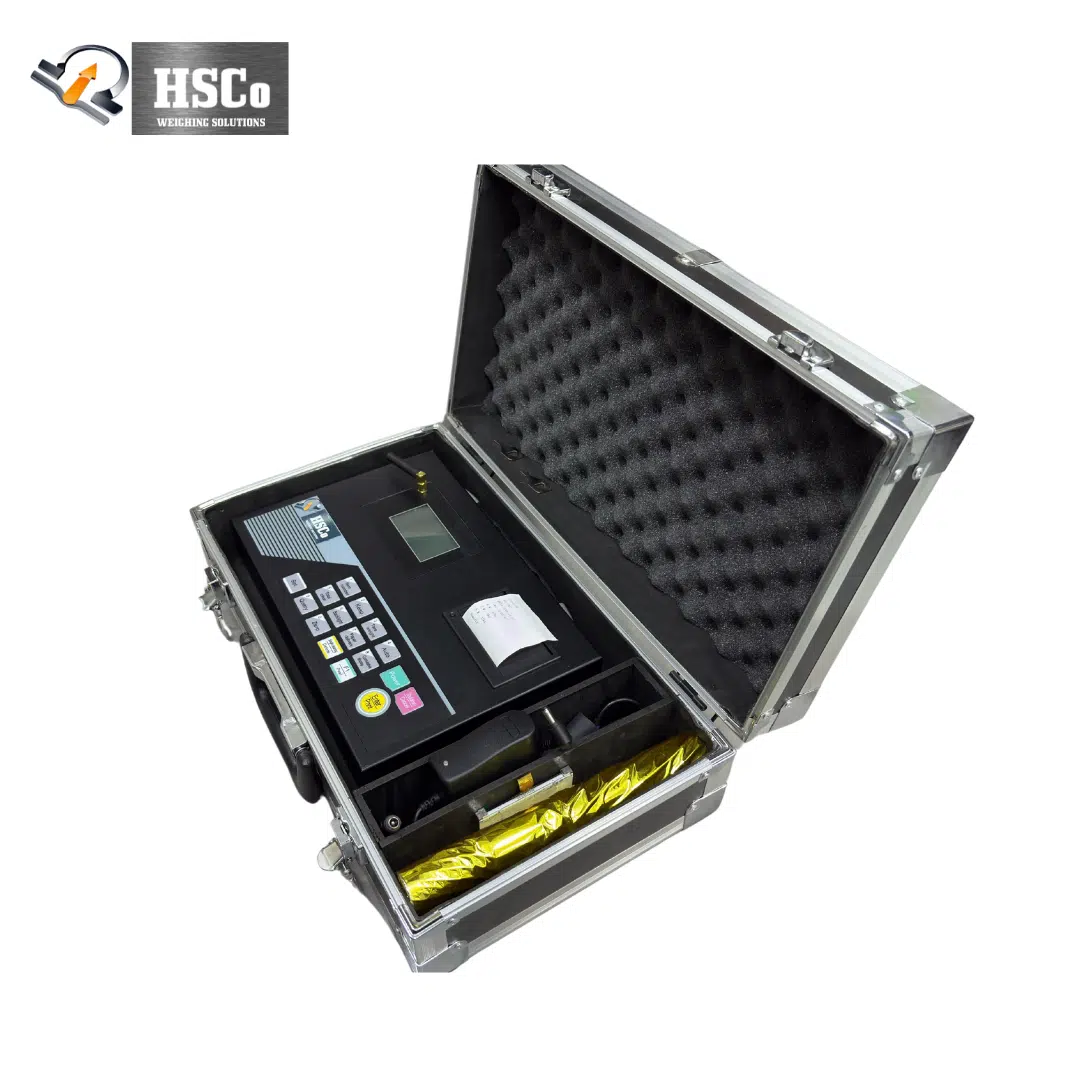

| Handheld display | Stores up to 30,000 records, custom print formats, thermal printer, range up to 30 m |
|---|---|
| Remote display | Green 20 mm LED, range up to 200 m |
| Jumbo display | Red or green 4-inch LED, range up to 20 m, all-weather housing |
| Handheld remote with jumbo display | Built-in printer and USB |
| Other | Desktop printer, Bluetooth, double J hook |
Where it is used
Steel industries, construction, crane testing, docks and naval use, timber, and heavy engineering. Read how to choose a crane scale, see the wireless dynamometer up to 100 t, or browse all crane scales.
Questions buyers ask
3, 5, 10 and 20 tonnes.
Up to 40 hours on a full charge.
Yes, with the optional handheld, remote or jumbo display.
Yes, with the handheld display’s thermal printer or a desktop printer.
Die-cast aluminium with a thick protective coating.
CRHLC dynamometer dispatch and stamping
When will my CRHLC dynamometer be dispatched?
If the CRHLC capacity you need is in stock, the dynamometer is dispatched from Mumbai in 1-2 working days.
Does a new CRHLC crane scale have Legal Metrology stamping?
Yes, every new CRHLC carries a Legal Metrology stamp that lasts 1 year.
Order or ask for a quotation
Choose the capacity and accuracy above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your lifting setup and display options. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 10000 kg, 20000 kg, 3000 kg, 5000 kg |
|---|---|
| Accuracy | 1 kg, 2 kg, 5 kg |
Powerful Dynamometer Weight Test ⚡ Easy & Accurate | Hindustan Scale Company (HSCo) · Watch it on our Help & Videos page
