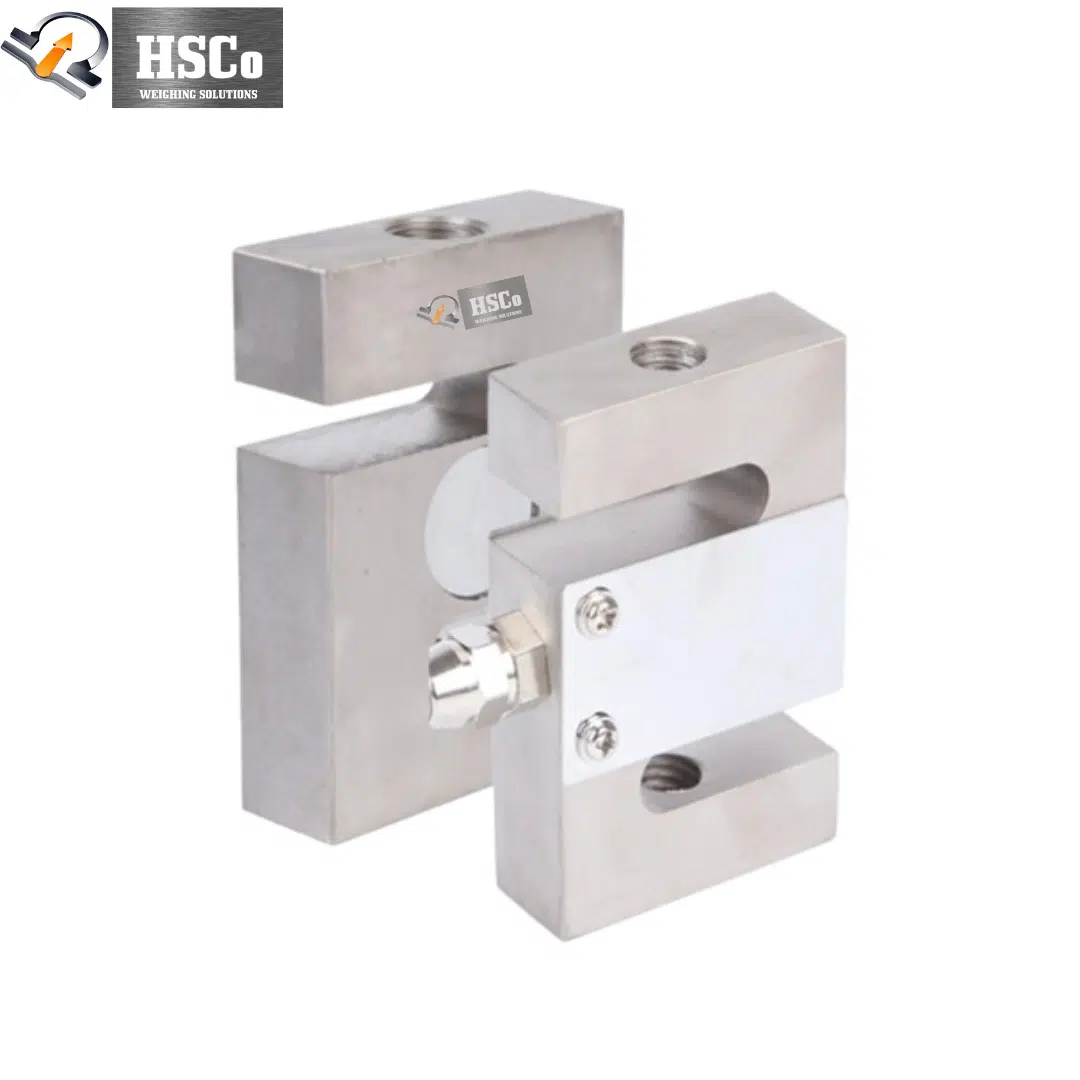

The HSC-LCS-1 is an S-type load cell that works in tension and compression, rated from 10 kg to 5,000 kg. Made of nickel-plated alloy steel with adhesive sealing to IP66/IP67, it resists water and corrosion and suits hook scales, batching scales, machine scales and other electronic weighing equipment.
Why builders choose it
- Wide range. 10 kg to 5,000 kg.
- Sealed. Adhesive sealing, IP66 / IP67; nickel-plated against corrosion.
- Accurate. ±0.03% FS total error; OIML R60.
- Strong overload margin. Safe 150%, limit 200% of full scale.
- Standard 350 Ω bridge with colour-coded cable.
Specifications
| Type | S-type, tension and compression |
|---|---|
| Rated capacities | 10 – 5,000 kg |
| Sensitivity | 2.0 ± 0.004 mV/V or 3.0 ± 0.005 mV/V |
| Total error | ±0.03% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C; span ±0.023% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −20 to +55 °C |
| Overload | Safe 150% FS; limit 200% FS |
| Excitation | 9 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 350 ± 5 Ω / 350 ± 5 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP66 / IP67 |
| Material | Alloy steel, nickel plated |
| Cable | Ø5.7 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Where it is used
Electronic hook scales, batching scales, machine and hopper scales, and other weighing equipment. For heavier compression loads, see the LCL-2 spoke load cell; browse all load cells.
Questions buyers ask
An S-shaped cell that measures pull or push through its two threaded ends.
From 10 kg to 5,000 kg.
It is sealed to IP66 / IP67.
Red Exc+, black Exc−, green Sig+, white Sig−.
