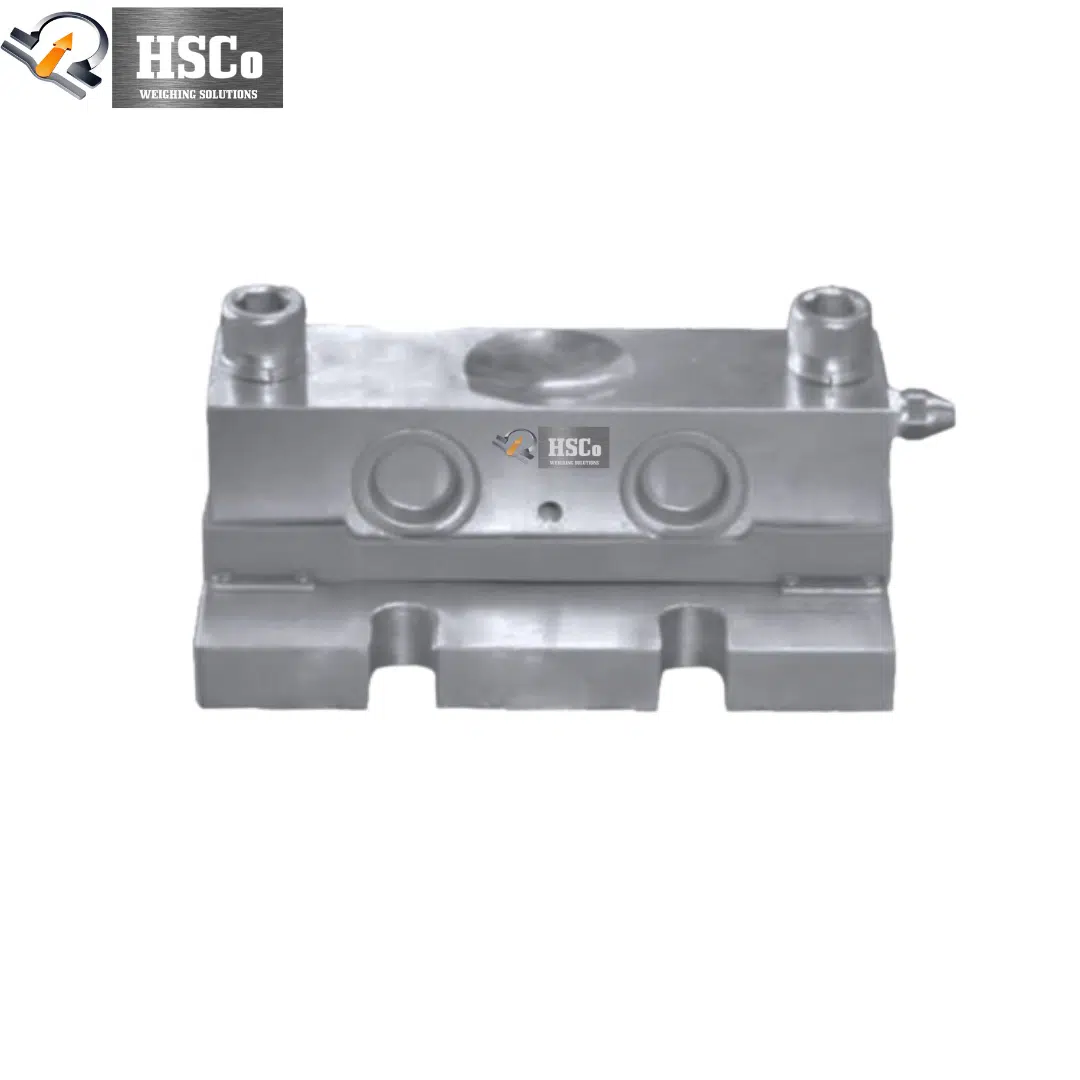

The HSC LCQ-11 is a bridge-type weighbridge load cell for 10 to 30 tonnes, used in truck scales, railway scales and other electronic weighing equipment. It is made of nickel-plated alloy steel, glue-sealed or welded, waterproof and corrosion-resistant to IP68, so it works in a wide range of environments. Sensitivity is 2.0 mV/V with ±0.03% FS total error, and it takes up to 300% overload.
Why scale makers choose it
- 10, 15, 20, 25 and 30 t.
- Waterproof and corrosion-resistant: IP68, nickel plated.
- Tough: limit overload 300% FS.
- Long cable: 15 or 16 m.
Specifications
| Model | HSC LCQ-11 |
|---|---|

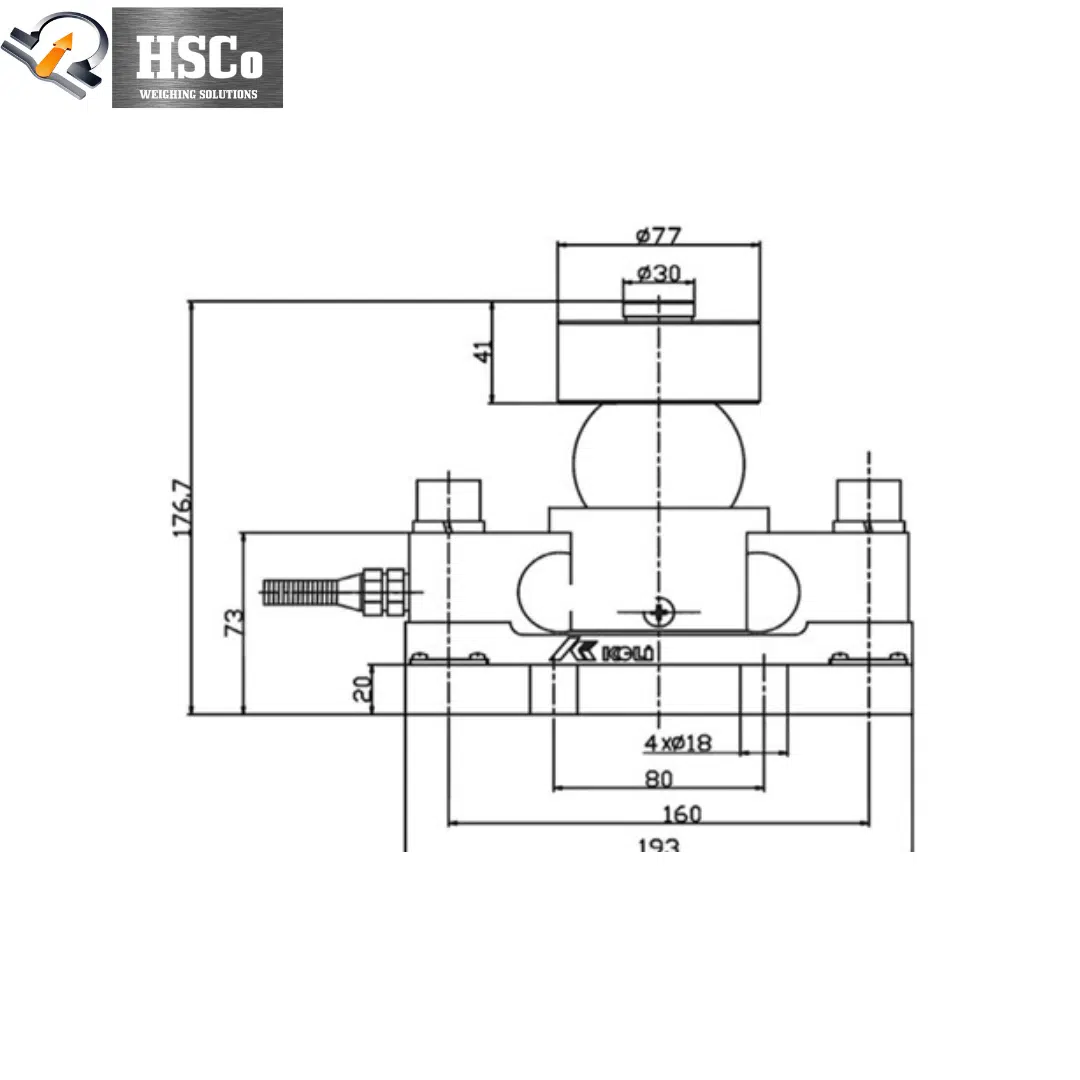

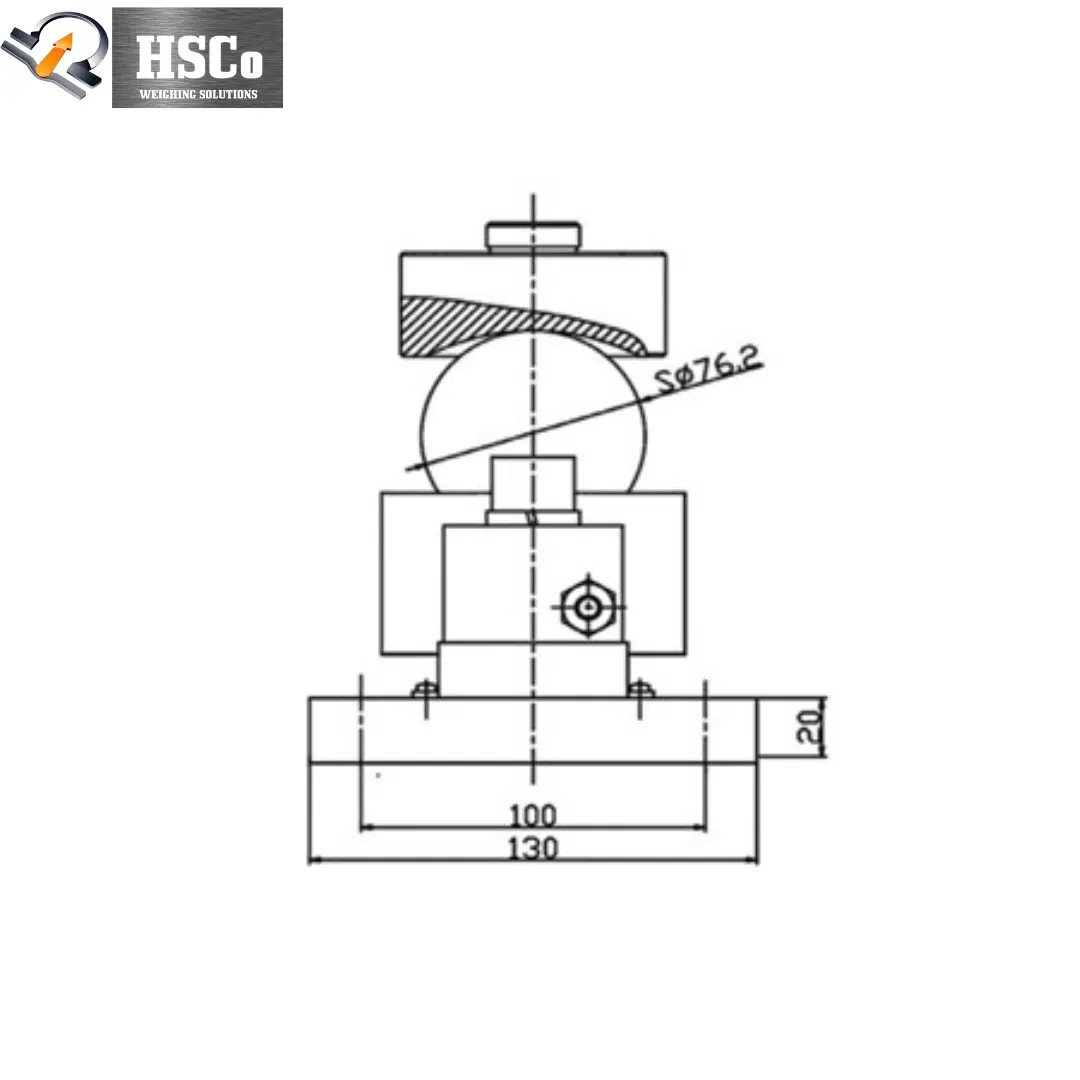

| Type | Bridge type, for weighbridges (shown with its mounting kit) |
| Capacities | 10, 15, 20, 25, 30 t |
| Sensitivity | 2.0 ± 0.004 mV/V |
| Total error | ±0.03% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 300% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Input / output impedance | 750 ± 10 Ω / 703 ± 2 Ω |
| Insulation | ≥ 5,000 MΩ |
| Protection | IP68; glue-sealed or welded |
| Material | Alloy steel, nickel plated |
| Cable | 15 m or 16 m, Ø5.7 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For other weighbridge cells, see the LCQ-10 (10 – 30 t), the LCQ-9 or the LCQ-1. To connect the cells of a weighbridge, use a junction box. Browse all load cells.
Where it is used
Truck scales (weighbridges), railway scales and other electronic weighing equipment.
Questions buyers ask
10, 15, 20, 25 and 30 tonnes.
Yes. It is waterproof and corrosion-resistant, sealed to IP68 with a nickel-plated alloy-steel body.
15 m or 16 m.
Order or ask for a quotation
Tell us the capacity and how many cells your weighbridge needs. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
