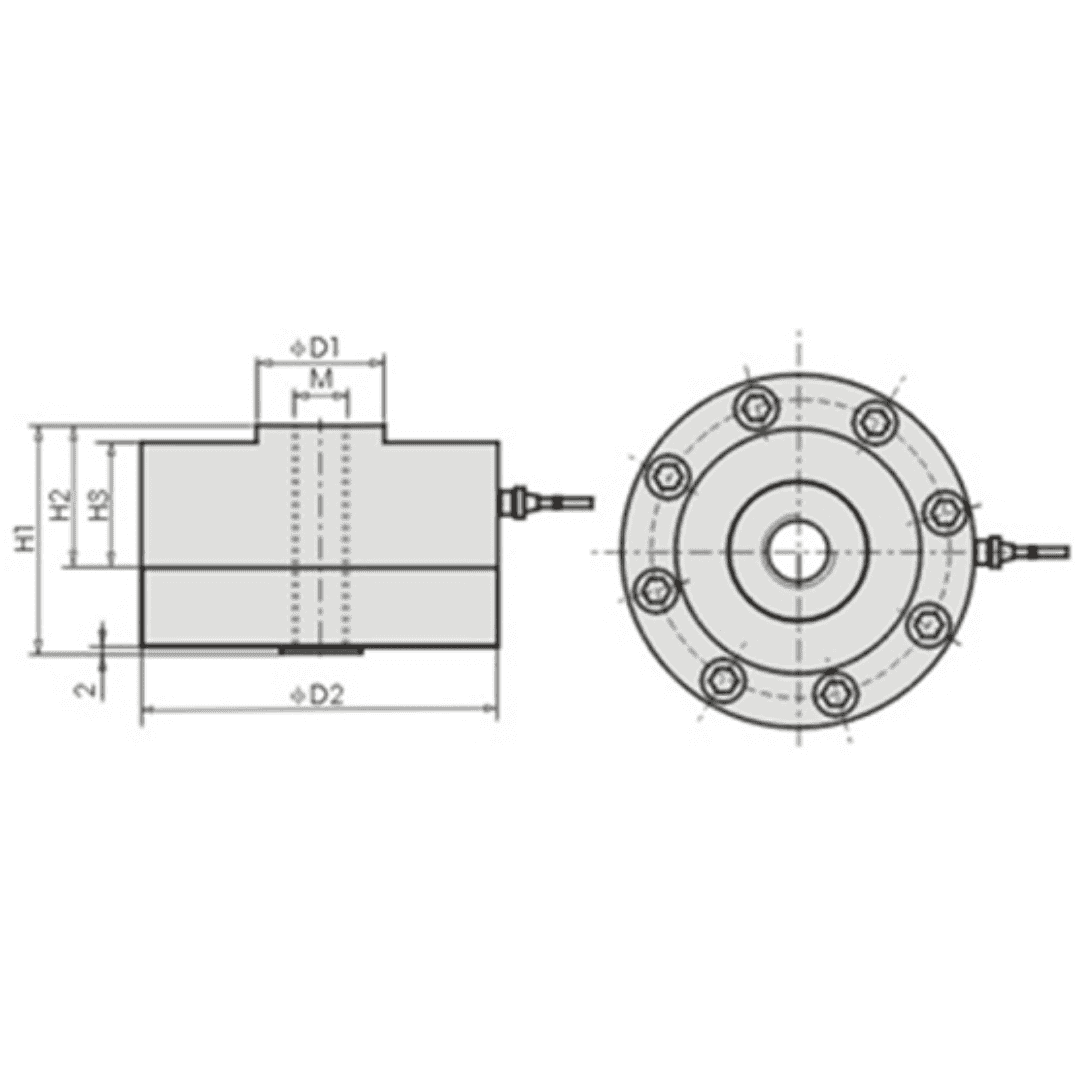

The HSCo pancake load cell is a low-profile, wheel-style load cell that works in compression and tension. Heat-treated, nickel-plated alloy steel makes it rugged and able to absorb shock loads, and C3 accuracy with 2.0 mV/V output suits it to industrial weighing, testing and tank monitoring.
Why builders choose it
- Low profile wheel design, easy to install.
- Compression and tension in one cell.
- Rugged. Heat-treated, nickel-plated alloy steel absorbs shock loads.
- C3 accuracy; non-linearity and creep under ±0.03% of full scale.
- Long cable. 12 m as standard.
Specifications
| Nominal output | 2.0 ± 0.004 mV/V |
|---|---|
| Accuracy class | C3 |
| Non-linearity | < ±0.03% FSO |
| Creep (30 min) | < ±0.03% FSO |
| Zero balance | < ±1% FSO |
| Excitation | 9 V DC; maximum 12 V DC |
| Safe / ultimate load | 120% / 150% of rated capacity |
| Input / output resistance | 700 ± 10 Ω / 700 ± 5 Ω |
| Temperature compensation | −10 to +60 °C |
| Insulation resistance | Above 5,000 MΩ |
| Material | Alloy steel (nickel plated) and stainless steel |
| Cable | 4 mm, 12 m |
| Warranty | 1 year |
Where it is used
Truck and hopper scales, rail scales, tensile and impact testing, tank and silo level monitoring and other industrial weighing systems. For higher capacities, see the HSC-LCL2 spoke load cell (0.1–100 t); browse all load cells.
Questions buyers ask
What is a pancake load cell?
A low, round, wheel-shaped load cell that measures force pressing down or pulling through its centre.
Does it work in tension?
Yes, in both compression and tension.
What accuracy class is it?
C3.
How long is the cable?
12 m, 4 mm diameter.
