The HSC-LCL2 is a spoke-type (short shear beam) compression load cell with excellent rigidity, strong resistance to side forces and built-in overload self-locking. It covers an unusually wide range, from 100 kg to 100 tonnes, sealed to IP67 (rubber seal) or IP68 (welded), and is used in truck scales, balances, dynamometers and crane scales.
Why builders choose it
- Wide range. From 0.1 t up to 100 t.
- Rigid and stable. Short, high shear beam spoke design resists lateral forces.
- Overload self-locking built into the structure.
- Sealed. IP67 rubber seal or IP68 welded seal.
- Accurate. Total error ±0.02% FS (±0.05% FS on some ranges); OIML R60.
Specifications
| Type | Spoke / short shear beam, compression |
|---|---|
| Capacities | 0.1, 0.5, 1, 3, 5, 10, 20, 25, 50, 100 t |
| Sensitivity | 2.0 ± 0.002 mV/V or 4.0 ± 0.002 mV/V |
| Total error | ±0.02% FS or ±0.05% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 380 ± 10 Ω or 750 ± 10 Ω / 350 ± 3 Ω or 700 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 (rubber seal) or IP68 (welded) |
| Material | Alloy steel or stainless steel |
| Cable | 10 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white |
| Standard | OIML R60 |
| Warranty | 1 year |

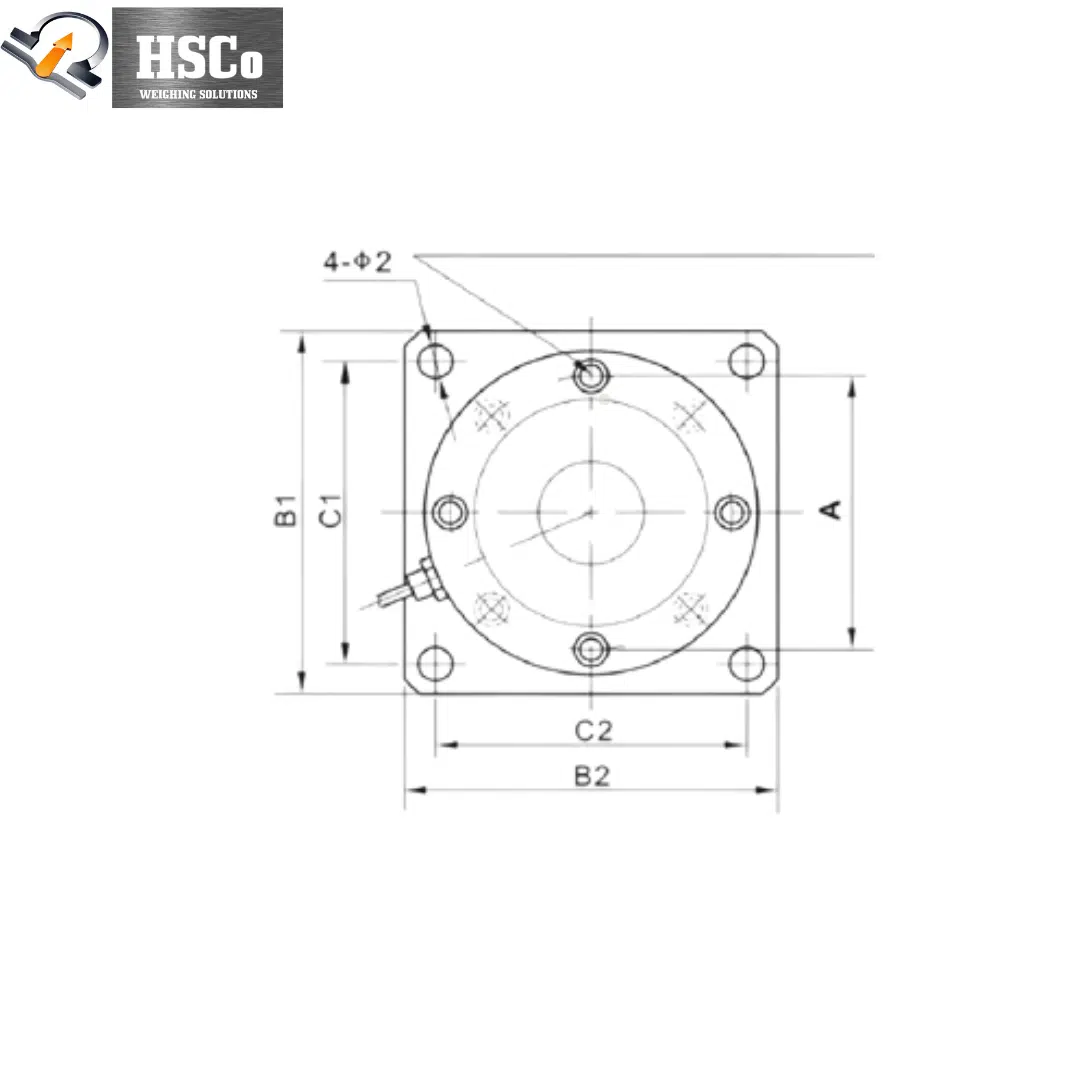

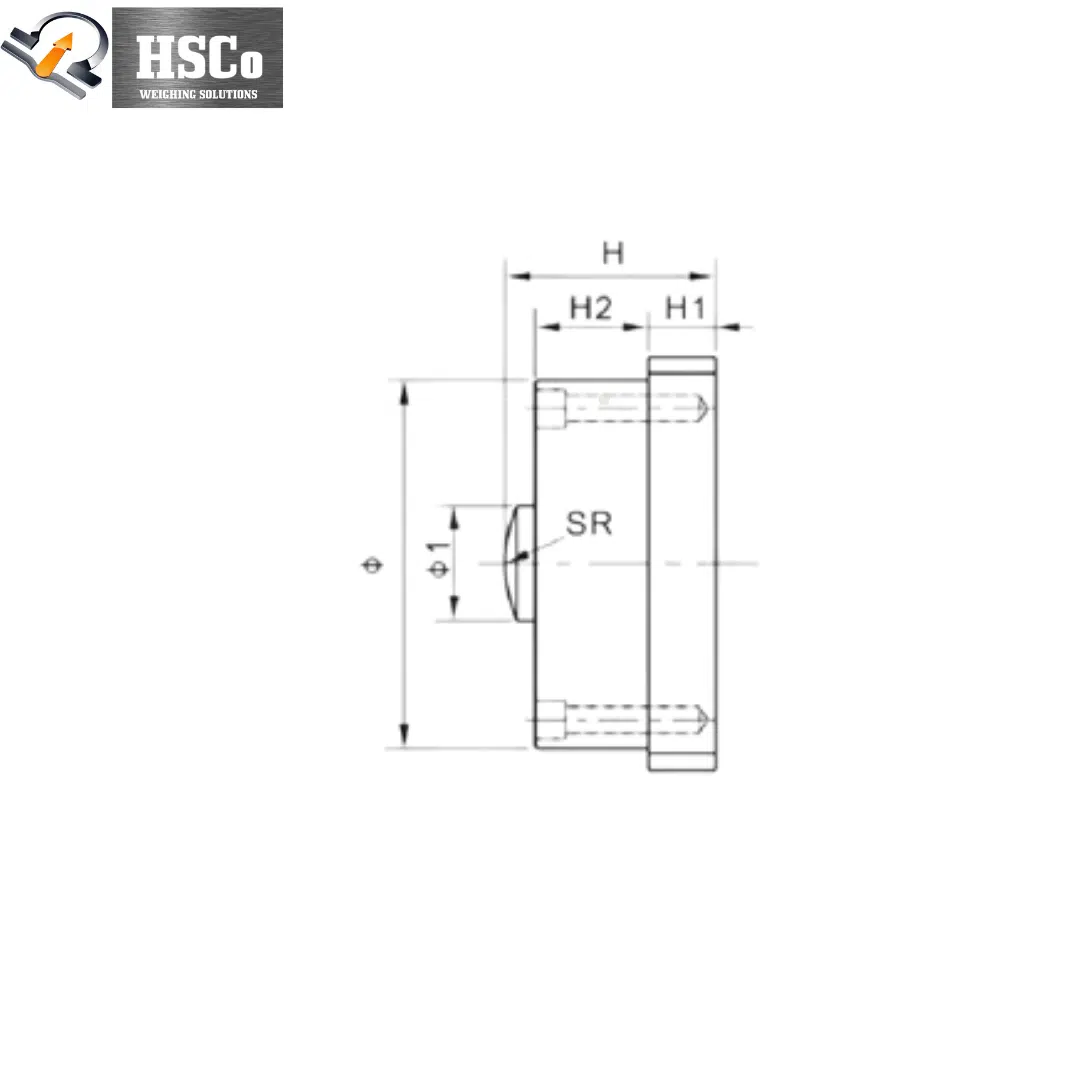

Dimensions (mm)
| Capacity (t) | A | Φ | Φ1 | H | Base B1 × B2 | Hole spacing C1 × C2 |
|---|---|---|---|---|---|---|
| 0.1 – 7.5 | 88.9 | 104.7 | 32.0 | 53.8 | 110 × 110 | 86 × 86 |
| 10 – 25 | 101.6 | 120.7 | 38.9 | 77.8 | 126 × 126 | 106 × 106 |
| 50 | 116.8 | 140.0 | 50.4 | 86.2 | 150 × 150 | 120 × 120 |
| 60 – 100 | 162.0 | 200.0 | 76.0 | 125.0 | 240 × 240 | 190 × 190 |
Where it is used
Truck weighbridges, balances, dynamometers, crane scales, tanks and hoppers. See also the LCQ-10 weighbridge load cell, or browse all load cells.
