Tank Weighing Assembly HSC-ZSD – 10 t to 50 t Load Cell Mount
Price on Request
ZSD series tank weighing assembly, 10–50 t: load cell mount that bolts to the tank leg, anti-overturn support bolt, nickel-plated alloy steel or stainless steel. For tanks, silos and hoppers.

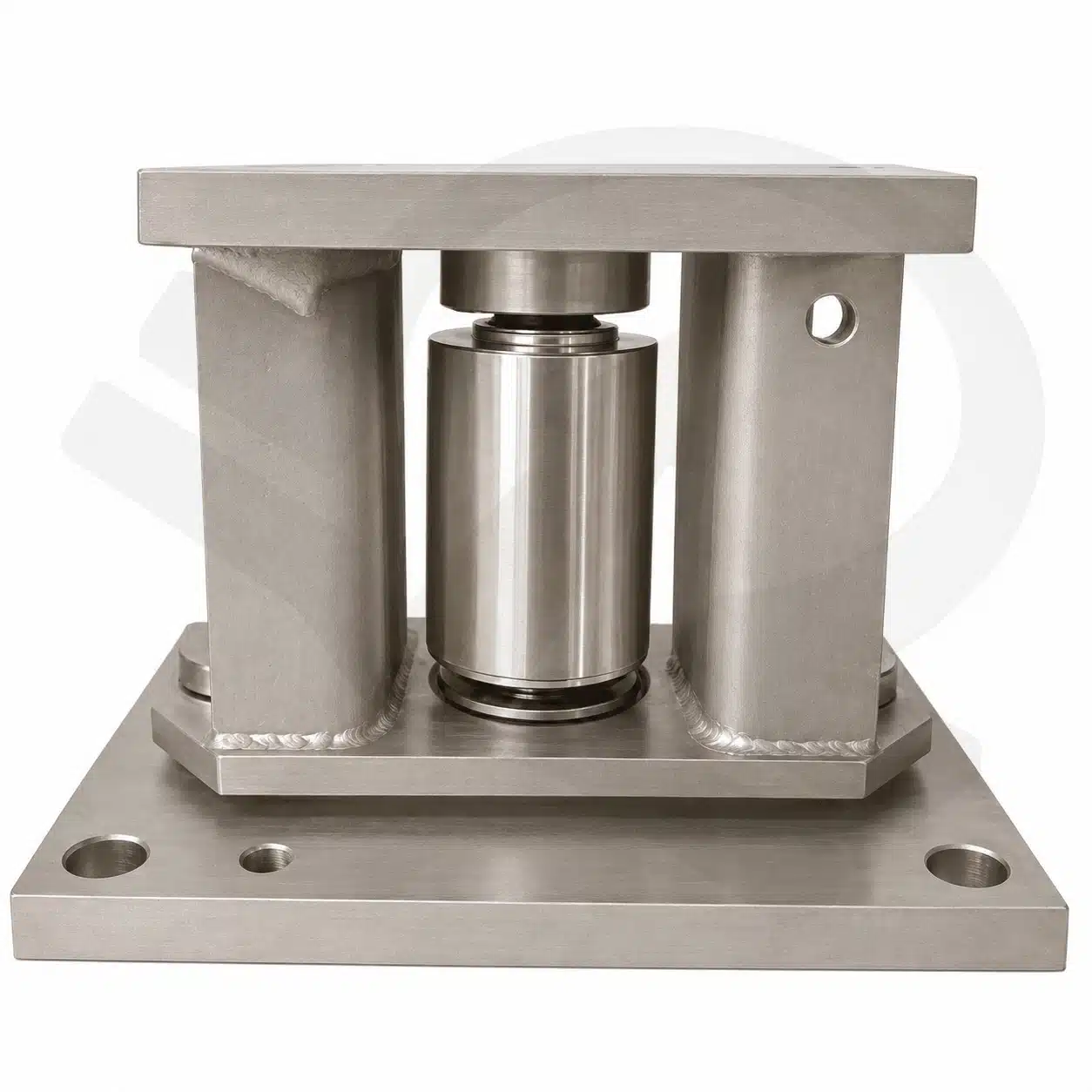

The HSC ZSD series tank weighing assembly turns a tank, silo or hopper into a scale. Each module holds a load cell in a heavy mounting frame that bolts straight to the tank leg, with a support bolt that stops the tank overturning. The ZSD series covers 10 t to 50 t per module and connects through a junction box to a weighing indicator.
Why plants choose it
- Mounts directly to tanks, hoppers and silos.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process and batch control.
- Rugged. Nickel-plated alloy steel or stainless steel construction.
- Easy to maintain and to connect to control and data systems.
- Configurable capacities and layouts.
At a glance
| Series | HSC ZSD load cell mounting assembly |
|---|---|
| Capacity | 10 t to 50 t |
| Mounting | Bolts to tank leg; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| System parts pictured | Mounting assembly, junction box, weighing indicator, printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
For lighter tanks, see the MA5 series (0.1–8 t) and the MAX series (0.1–5 t), or HSCWP3 weigh pads. Browse all tank weighing scales.
Questions buyers ask
How many modules does a tank need?
Usually one per leg; tell us the tank layout and weight and we will size it.
What capacity does the ZSD series cover?
10 t to 50 t.
Can it connect to my PLC or control system?
Yes, it is designed to integrate with control and data systems.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, number of legs and full weight. Hindustan Scale Company, Mumbai, since 1955.
