Weighbridge Load Cell HSC LCQ-9 – 10, 20 and 30 t, IP67/IP68
Price on Request
Rocker-column weighbridge load cell: 10, 20 or 30 t, 2.0 mV/V, total error ±0.02% FS, safe overload 150%, nickel-plated alloy steel, IP67/IP68, −30 to +80 °C, 8 m or 16 m cable, OIML R60. For truck and railway scales. 1-year warranty.

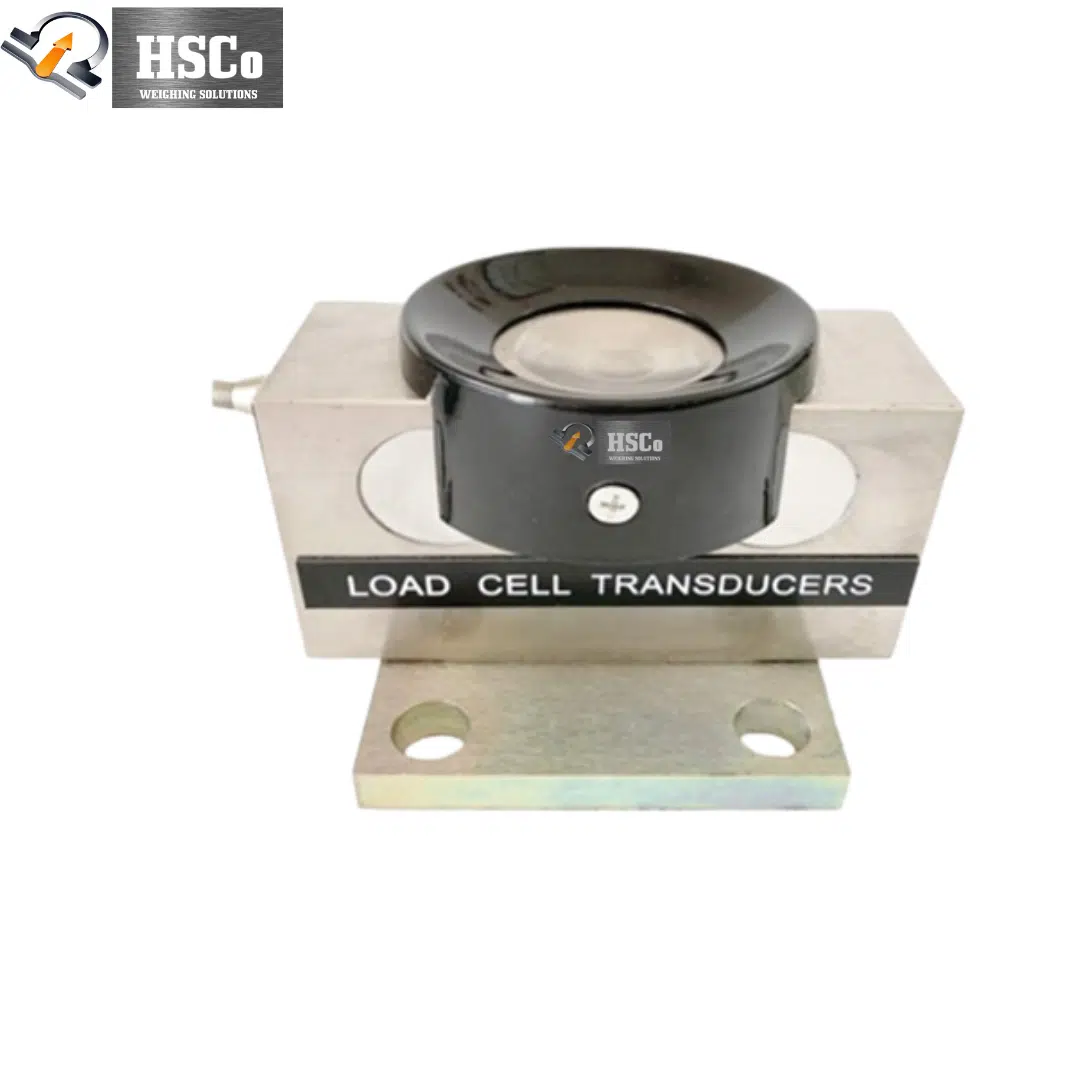

The HSC LCQ-9 is a rocker-column compression load cell for weighbridges (truck scales) and railway scales. It is made of nickel-plated alloy steel, sealed by gluing or welding, and rated IP67 or IP68, so it resists water and corrosion outdoors. It comes in 10, 20 and 30 tonne capacities, with a 2.0 mV/V output and ±0.02% FS total error. It is built to OIML R60.
Why buyers choose the LCQ-9
- Made for weighbridges. Rocker-column design for truck and railway scales.
- Weatherproof. IP67 or IP68; nickel-plated alloy steel, glue-sealed or welded.
- Accurate. Total error ±0.02% FS; creep 0.016% FS over 30 minutes.
- Overload margin. Safe overload 150% FS; limit overload 200% FS.
- Wide temperature range. Operates from −30 to +80 °C; compensated from −10 to +40 °C.
Specifications
| Model | HSC LCQ-9 |
|---|---|
| Capacities | 10 t, 20 t, 30 t |
| Sensitivity | 2.0 ± 0.004 mV/V |
| Total error | ±0.02% FS |
| Creep (30 min) | 0.016% FS |
| Zero balance | ±1% FS |
| Temperature effect on span | ±0.02% FS / 10 °C |
| Safe / limit overload | 150% / 200% FS |
| Excitation | 10 – 15 V DC recommended; 15 V DC maximum |
| Input / output impedance | 750 ± 5 Ω / 700 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ (50 V DC) |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +80 °C |
| Protection | IP67, IP68 |
| Material | Alloy steel, nickel plated |

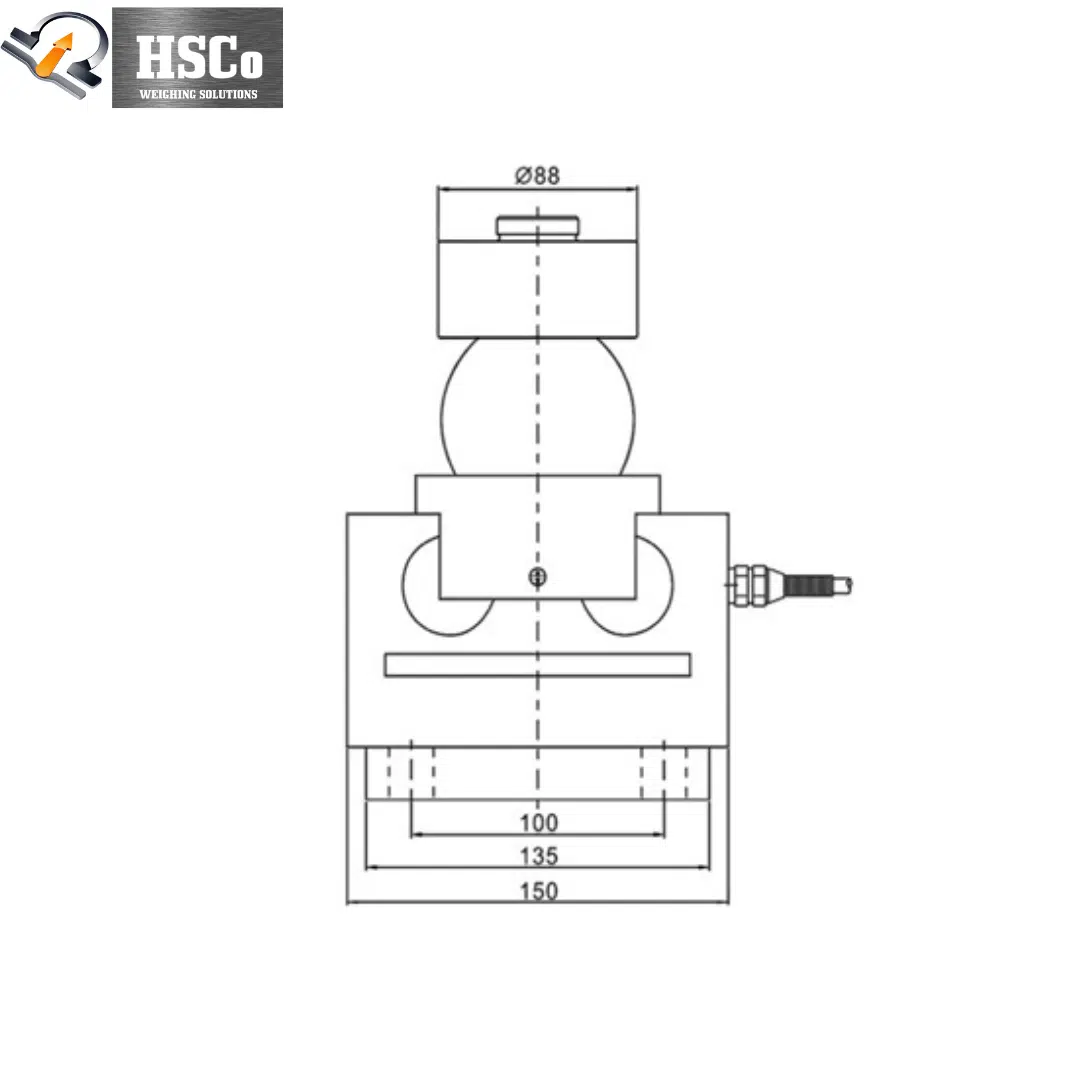

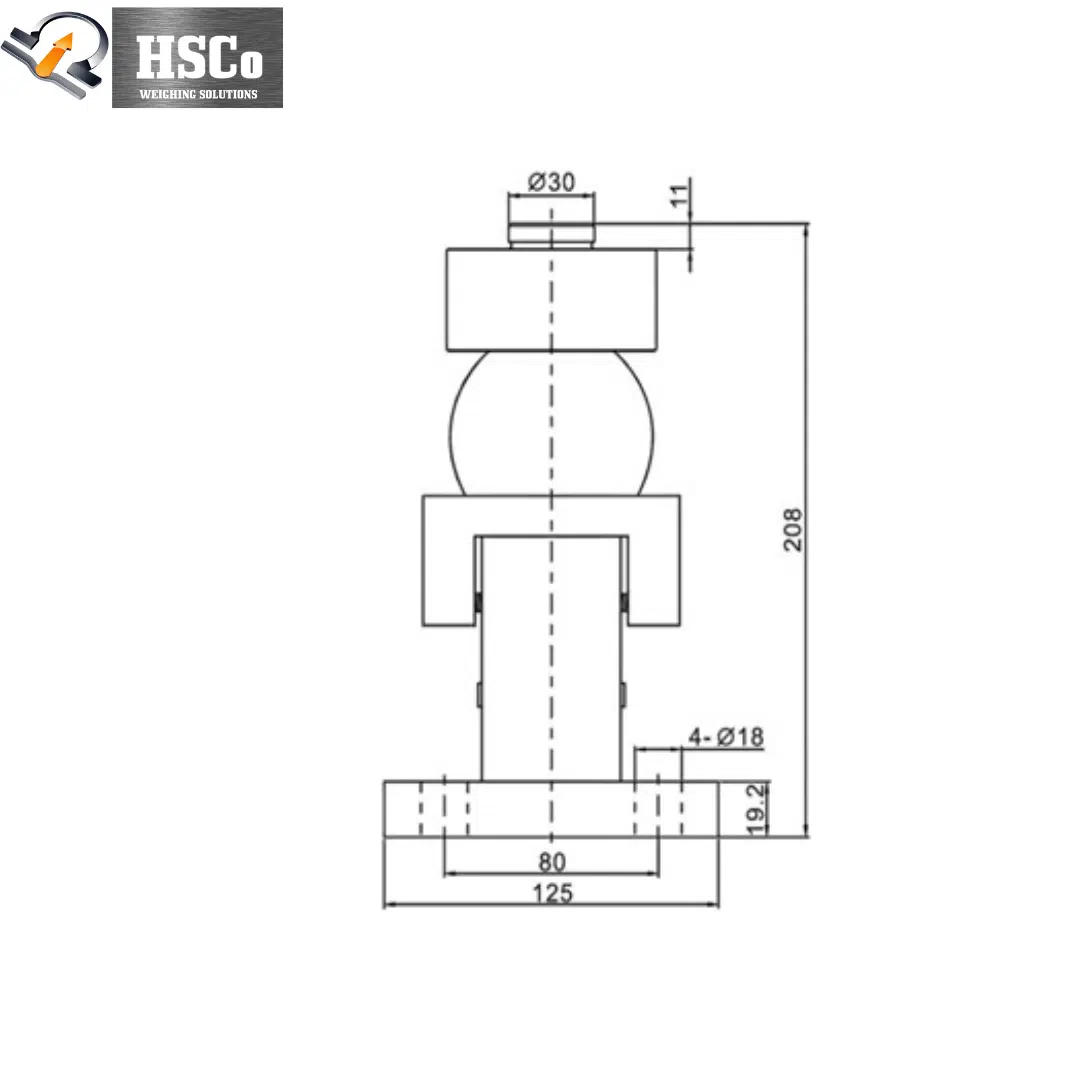

| Size | Height 208 mm; base 150 × 125 mm with 4 × Ø18 mm holes |
| Cable | 8 m or 16 m, Ø5.7 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
See also the weighbridge load cell LCQ-10, the LCL-2 load cell and the HSCo weighbridge load cell. Browse all load cells.
Where it is used
Truck scales and weighbridges, railway scales and other heavy electronic weighing equipment.
Questions buyers ask
10, 20 and 30 tonnes.
Yes. It is rated IP67 or IP68, nickel plated, and works from −30 to +80 °C.
Excitation + red, excitation − black, signal + green, signal − white, with a yellow shield wire.
8 m or 16 m.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity and number of cells you need. Hindustan Scale Company, Mumbai, since 1955.
