Low Profile Load Cell HSC LCL-5 – 2.5 to 30 t, Stainless Steel, IP68
Price on Request
Low-profile stainless-steel compression load cell HSC LCL-5: 2.5 to 30 t, welded seal IP68, strong against side forces, 2.0 mV/V, ±0.02% FS, 10 m cable, OIML R60. For weighbridges, tanks and silos. 1-year warranty.

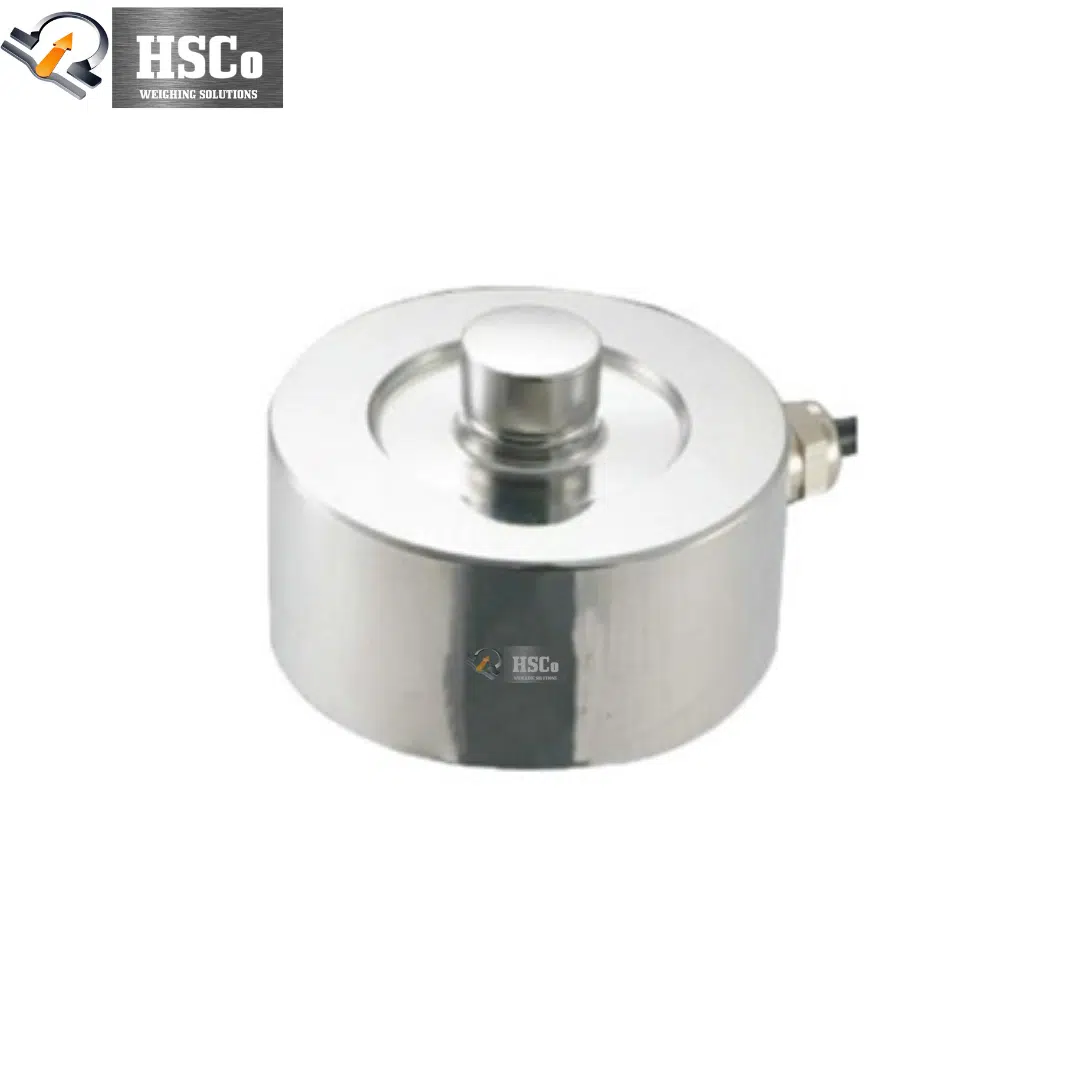

The HSC LCL-5 is a low-profile stainless-steel compression load cell, welded and sealed to IP68, with strong resistance to side forces. It comes in capacities from 2.5 to 30 tonnes and is used in weighbridges, tank and silo weighing and other heavy measuring equipment in harsh conditions.
Why scale makers choose it
- Low profile: fits where height is limited.
- Stainless steel, welded seal, IP68 for wet and dirty sites.
- Strong against side forces.
- 2.5 to 30 t capacities.
- Accurate: ±0.02% FS total error.
Specifications
| Model | HSC LCL-5 |
|---|---|
| Type | Low-profile compression |
| Capacities | 2.5, 5, 7.5, 10, 15, 30 t |
| Sensitivity | 2.0 ± 0.002 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 8 – 15 V DC recommended; 15 V DC maximum |
| Input / output impedance | 750 ± 10 Ω / 700 ± 5 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP68, welded seal (IP67 also listed) |
| Material | Stainless steel |
| Cable | 10 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For a wider range, from 0.1 to 100 t, see the LCL-2; for weighbridges, the LCQ-9. Browse all load cells.
Where it is used
Weighbridges, tank, silo and hopper weighing, and heavy industrial measuring equipment in harsh environments.
Questions buyers ask
2.5, 5, 7.5, 10, 15 and 30 tonnes.
Stainless steel, with a welded seal to IP68.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
