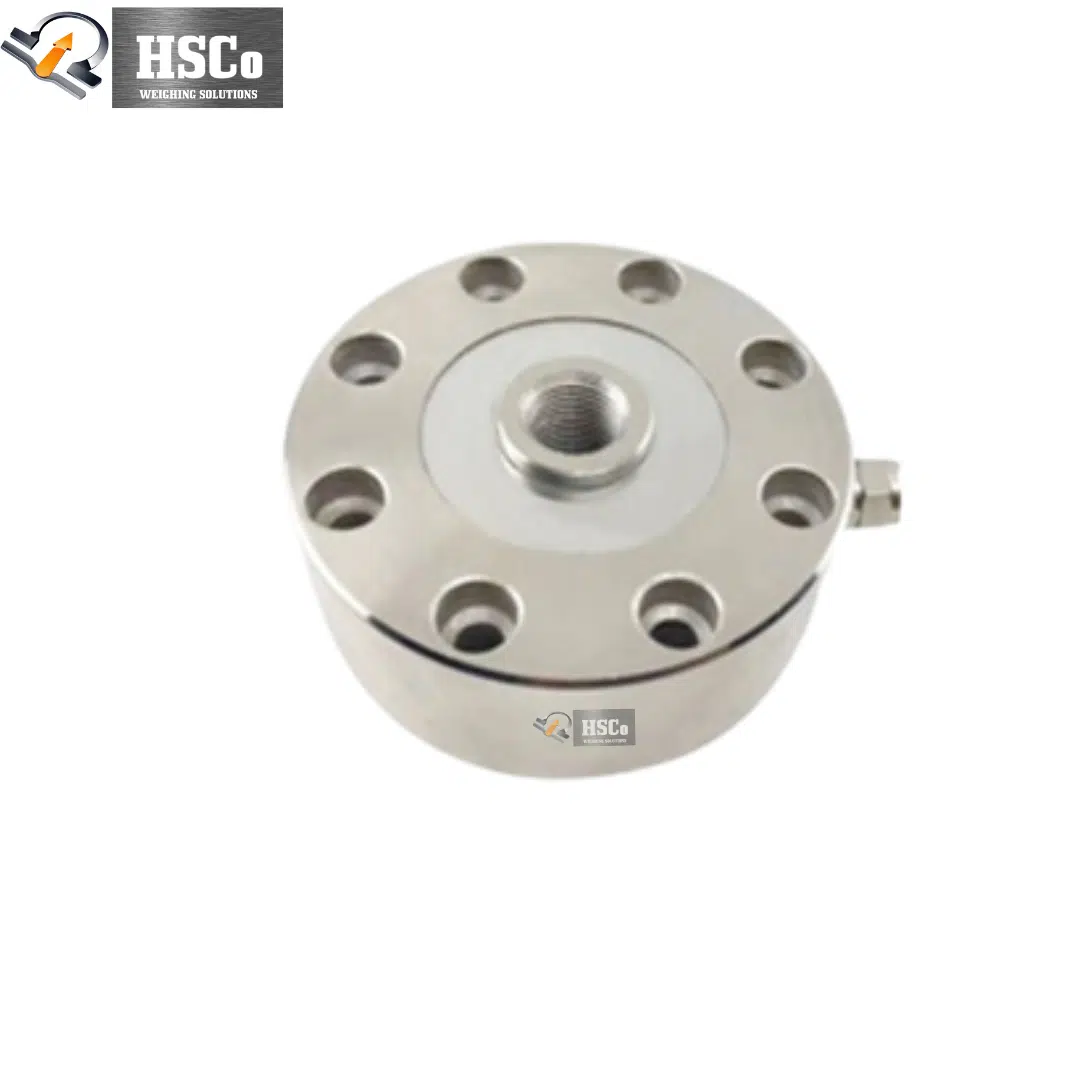

The HSC LCL-3 is a spoke-type load cell from 2 to 300 tonnes, for truck scales, balances, dynamometers and crane scales. Its short, tall shear-beam spokes make it very rigid and strong against side forces, and an overload stop is built into the structure. It comes with a rubber seal (IP67) or a welded seal (IP68), and gives 2.0 mV/V with ±0.03% FS total error.
Why scale makers choose it
- 2 to 300 t in one family.
- Very rigid, strong against side forces.
- Built-in overload stop.
- Rubber seal IP67 or welded seal IP68.
Specifications
| Model | HSC LCL-3 |
|---|---|
| Type | Spoke type, short shear beams, overload self-locking |
| Capacities | 2, 5, 10, 25, 40, 50, 100, 200, 300 t |
| Sensitivity | 2.0 ± 0.04 mV/V |
| Total error | ±0.03% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −35 to +80 °C |
| Overload | Safe 150% or 120% RO; limit 200% or 150% RO (two figures given) |
| Excitation | 8 – 15 V DC recommended; 15 V DC max |
| Input / output impedance | 750 ± 8 Ω / 700 ± 5 Ω, or 380 ± 10 Ω / 350 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | Rubber seal IP67 or welded seal IP68 |
| Material | Alloy steel or stainless steel |
| Cable | Ø5.7 mm; 8 m (2 – 25 t), 13 m (40 – 300 t); Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |

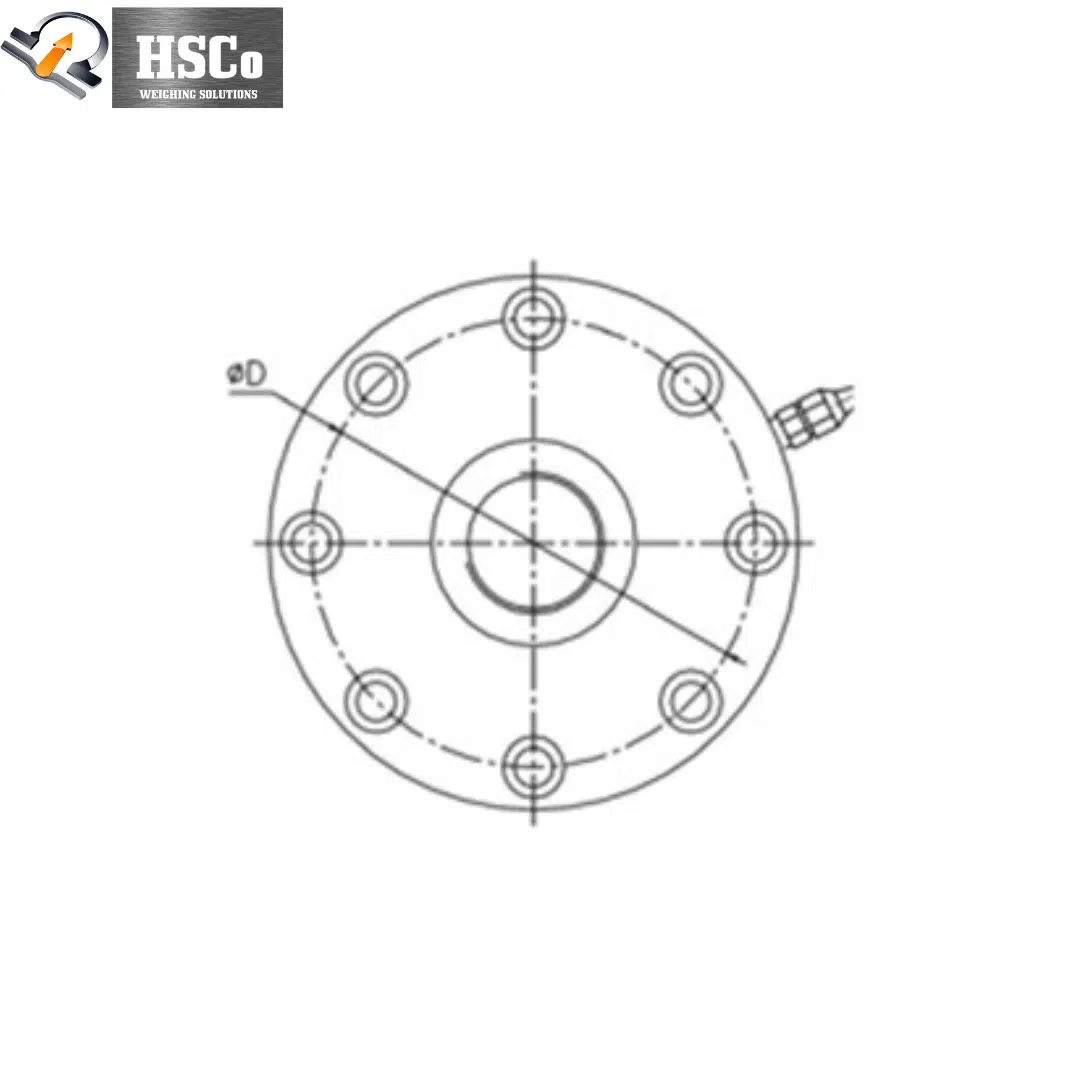

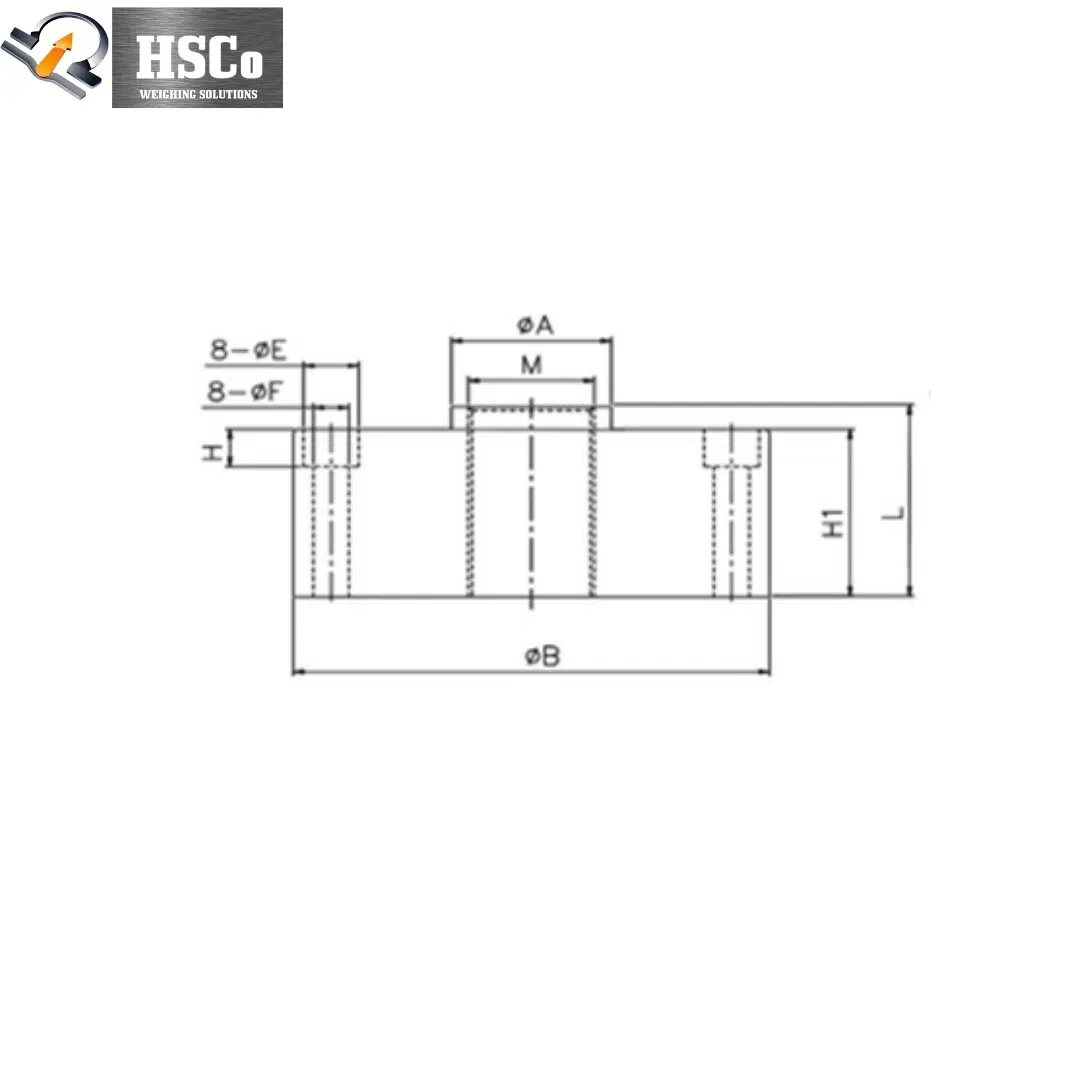

Dimensions (mm; M is the centre thread):
| Capacity | A | M | L | H1 | B | D | E | F | H |
|---|---|---|---|---|---|---|---|---|---|
| 2 – 5 t (5 – 10 klb) | 34 | M16 × 1.5 | 46 | 32 | 105 | 88.9 | 10.5 | 7.5 | 9.2 |
| 10 – 25 t (25 – 50 klb) | 41 | M32 × 1.5 | 53 | 47 | 122 | 101.7 | 14 | 9 | 10.5 |
| 50 t (100 klb) | 51 | M40 × 3 | 57.6 | 51 | 143 | 117 | 17 | 10.5 | 16 |
| 90.8 t (200 klb) | 76 | M64 × 3 | 83 | 70 | 200 | 162.6 | 20 | 13 | 18 |
| 200 t (440 klb) | 120 | M90 × 3 | 125 | 120 | 306 | 264 | 32 | 22 | 26 |
| 300 t (660.8 klb) | 150 | M120 × 3 | 185 | 180 | 350 | 296 | 38 | 26 | 32 |
