Through-Hole Tension Sensor HSC-LCZL-1 – Web Tension, 10× Overload Protection, Low Profile
Price on Request
Through-hole (ring) tension sensor HSC-LCZL-1 for paper and web tension: strain-gauge principle, accurate stable signal, 10× mechanical overload protection, low overall thickness for narrow frames, rated capacities 5 to 3,000 in the model list. 1-year warranty.
The HSCo HSC-LCZL-1 is a through-hole (ring) tension sensor for measuring the tension of paper and other webs. It works on the resistance strain-gauge principle for an accurate, stable signal, has a built-in mechanical overload protection of 10 times, and its low overall thickness suits narrow machine frames. A wide range of models covers rated capacities from 5 up to 3,000, each with its own dimensions.
Why machine builders choose it
- Accurate, stable signal from a strain-gauge sensor.
- 10× mechanical overload protection.
- Low, flat design for narrow frames.
- Many sizes: rated capacities 5 to 3,000.
Specifications

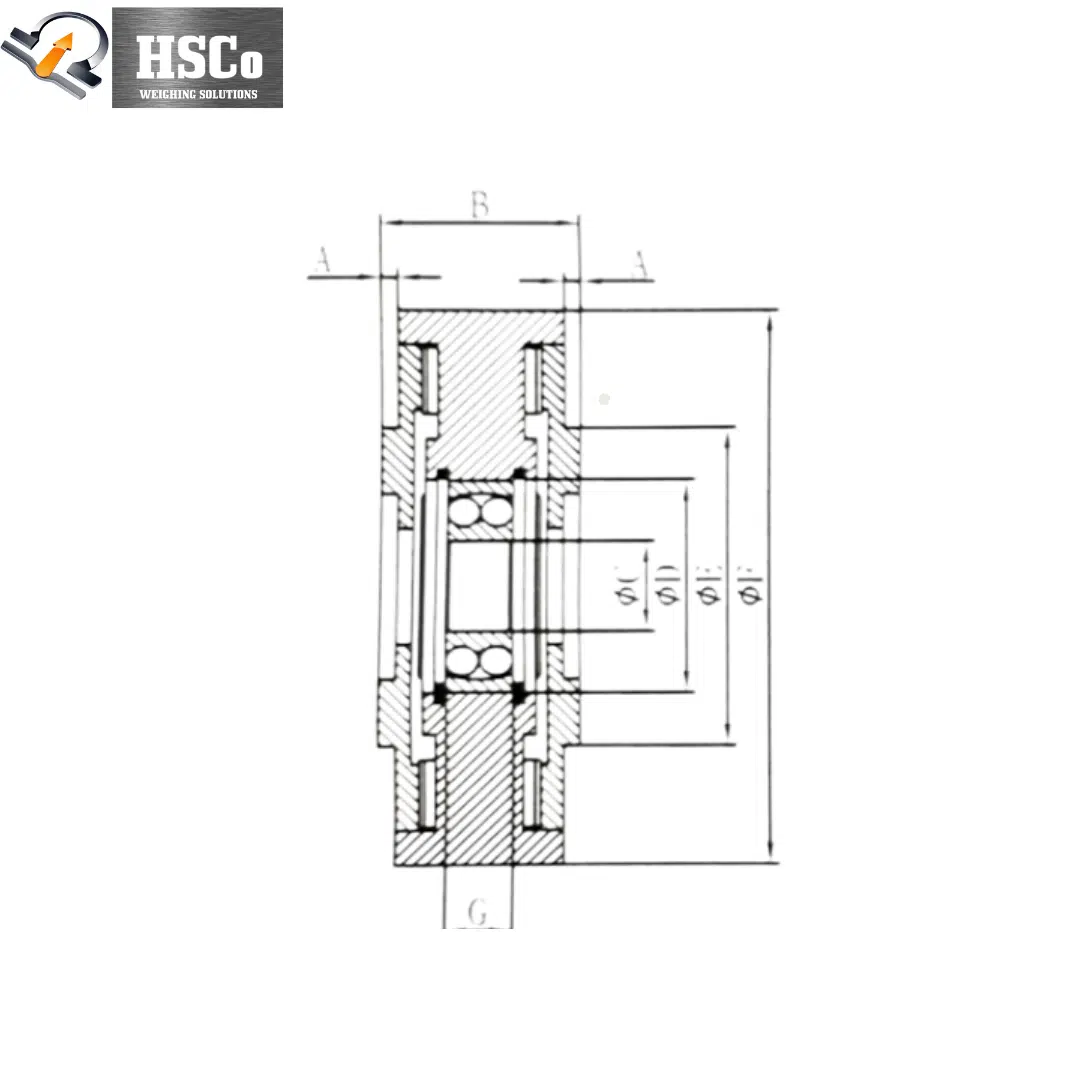

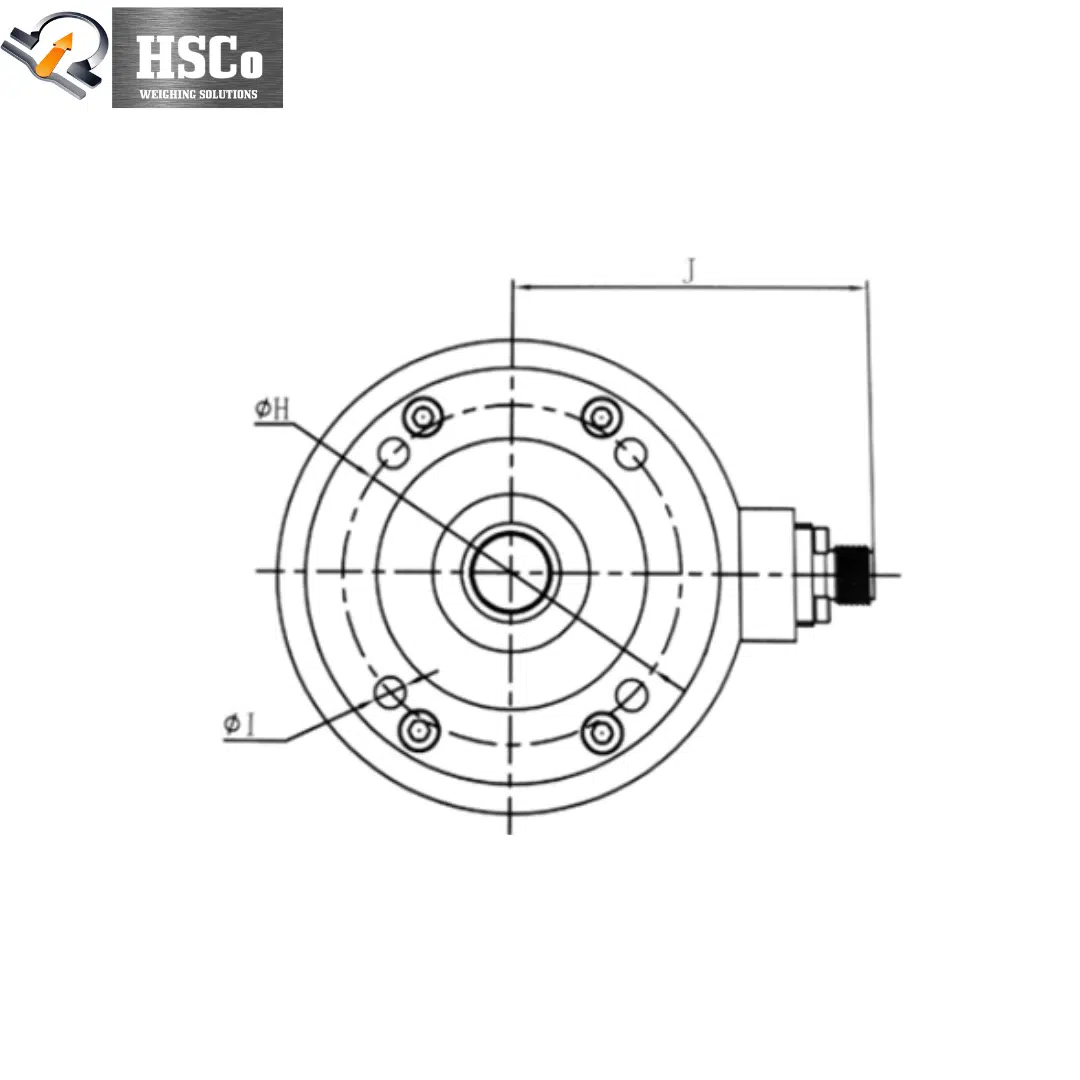

| Model | HSC-LCZL-1 series (e.g. LCZL-1-5-17 to LCZL-1-3000-65) |
|---|---|
| Type | Through-hole tension sensor, strain gauge |
| Rated capacities | 5, 10, 15, 25, 50, 75, 100, 150, 300, 500, 1,000, 2,000, 3,000 (model list) |
| Overload protection | Mechanical, 10 times |
| Build | Low overall thickness |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Warranty | 1 year |
Which sensor?
For weighbridge load cells, see the HSC-LCL 2 or the HSC LCQ-10. Browse all load cells.
Where it is used
Paper, film and other web-handling machines that need tension measured, and narrow mechanical frames needing compact pressure measurement.
Questions buyers ask
The tension of paper and other webs running through a machine.
Its mechanical protection handles 10 times the rated load.
Tell us the web tension range and frame size; the model list runs from 5 to 3,000.
Order or ask for a quotation
Tell us what you need it for and we will suggest the right model and size. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 1000 kg, 500 kg |
|---|
