Compression Load Cell HSC-LCL-1 – Ball Top, Square Base Plate, for Weighbridges
Price on Request
Compression load cell HSC-LCL-1 with spherical (ball) top and square base plate with four fixing holes, for truck scales (weighbridges) and heavy weighing; standard 4-wire plus shield. Capacities and datasheet on request. 1-year warranty.

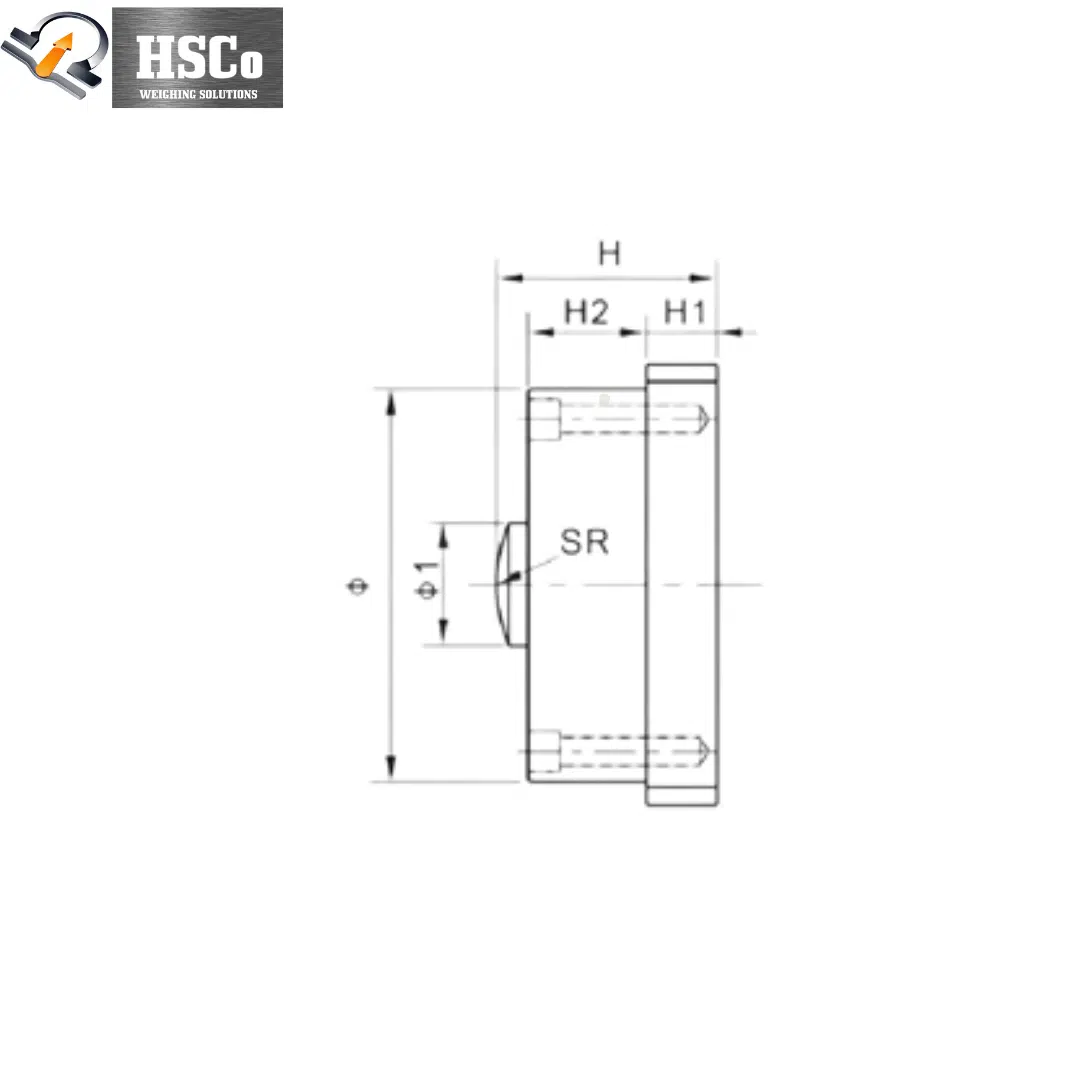

The HSCo HSC-LCL-1 is a compression load cell with a spherical (ball) top and a square base plate with four fixing holes, for truck scales (weighbridges) and other heavy weighing. The ball top lets the load settle on the cell, and the drawing gives the mounting dimensions. Capacities and the full datasheet are available on request.
Why scale makers choose it
- Ball top for self-centring loads.
- Square base plate with four fixing holes.
- For weighbridges and heavy weighing.
- Standard wiring with shield.
Specifications
| Model | HSC-LCL-1 |
|---|---|
| Type | Compression load cell, spherical (ball) top |

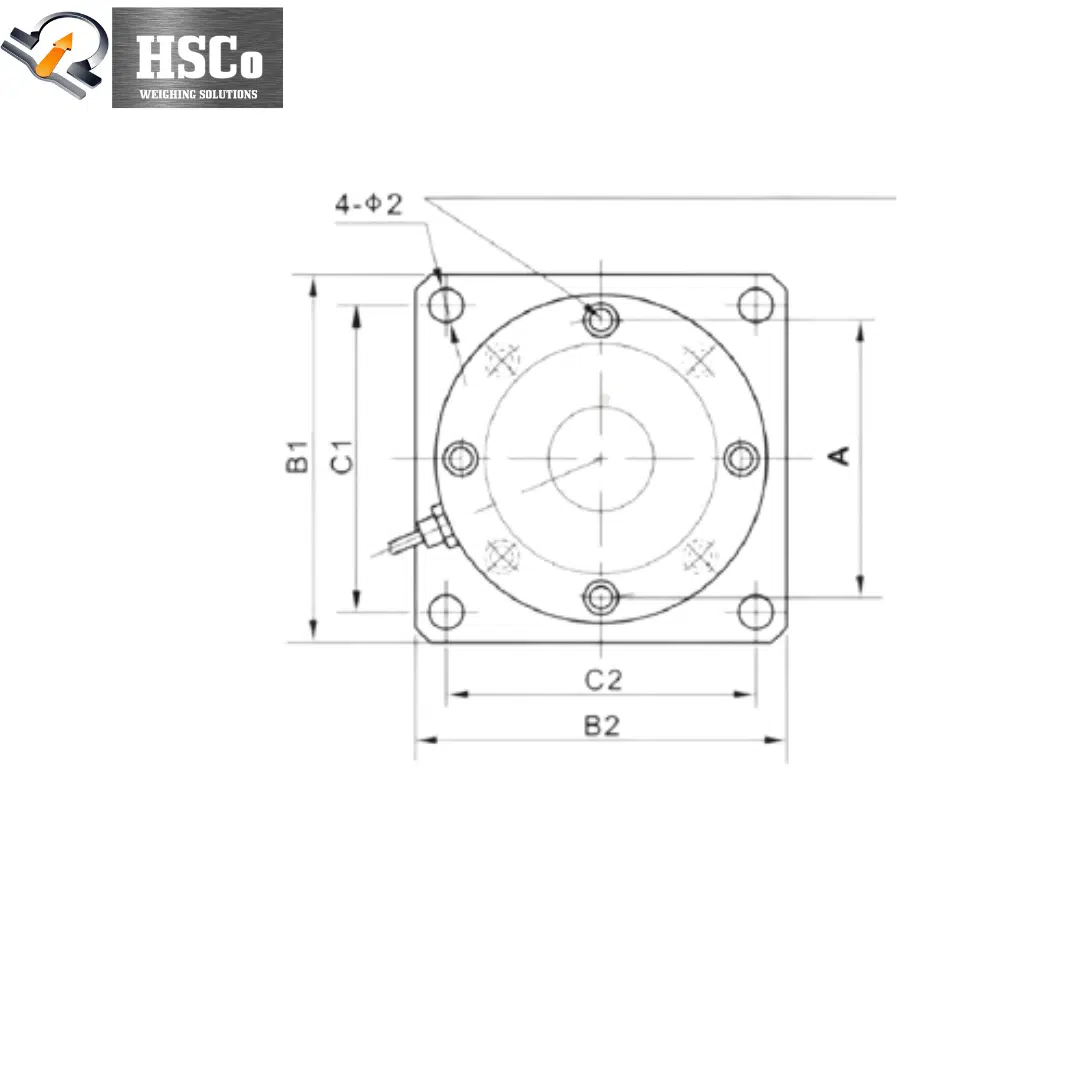

| Mounting | Square base plate, 4 fixing holes (see drawing) |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Capacities and datasheet | On request – tell us your load |
| Warranty | 1 year |
Which load cell?
For a spoke-type cell from 0.1 to 100 t, see the HSC-LCL 2; for a torsion-ring cell up to 470 t, the HSC LCL-4. Browse all load cells.
Where it is used
Truck scales (weighbridges) and other heavy weighing systems.
Questions buyers ask
It lets the load settle and centre itself on the cell.
With four bolts through its square base plate.
Tell us your load and we will send the capacity and datasheet.
Order or ask for a quotation
Tell us what you need it for and we will suggest the right model and size. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 1000 kg, 500 kg |
|---|
