HSCo Weigh Pads HSCWP2 – Portable Axle Weighing, 20 to 30 t per Pad, No Civil Work
Price on Request
HSCWP2 portable axle weigh pads: 20, 25 or 30 t per pad (40 – 60 t per axle), 30 or 45 mm high with built-in ramps, 20 micro load cells per pad, accurate on uneven ground, no civil foundation, Intellinet indicator with dynamic motion weighing, cabled or wireless, rechargeable batteries. 1-year warranty.
हिंदी में इसे वजन काटा कहते हैं. Vajan Kata (वजन काटा) – all types and prices

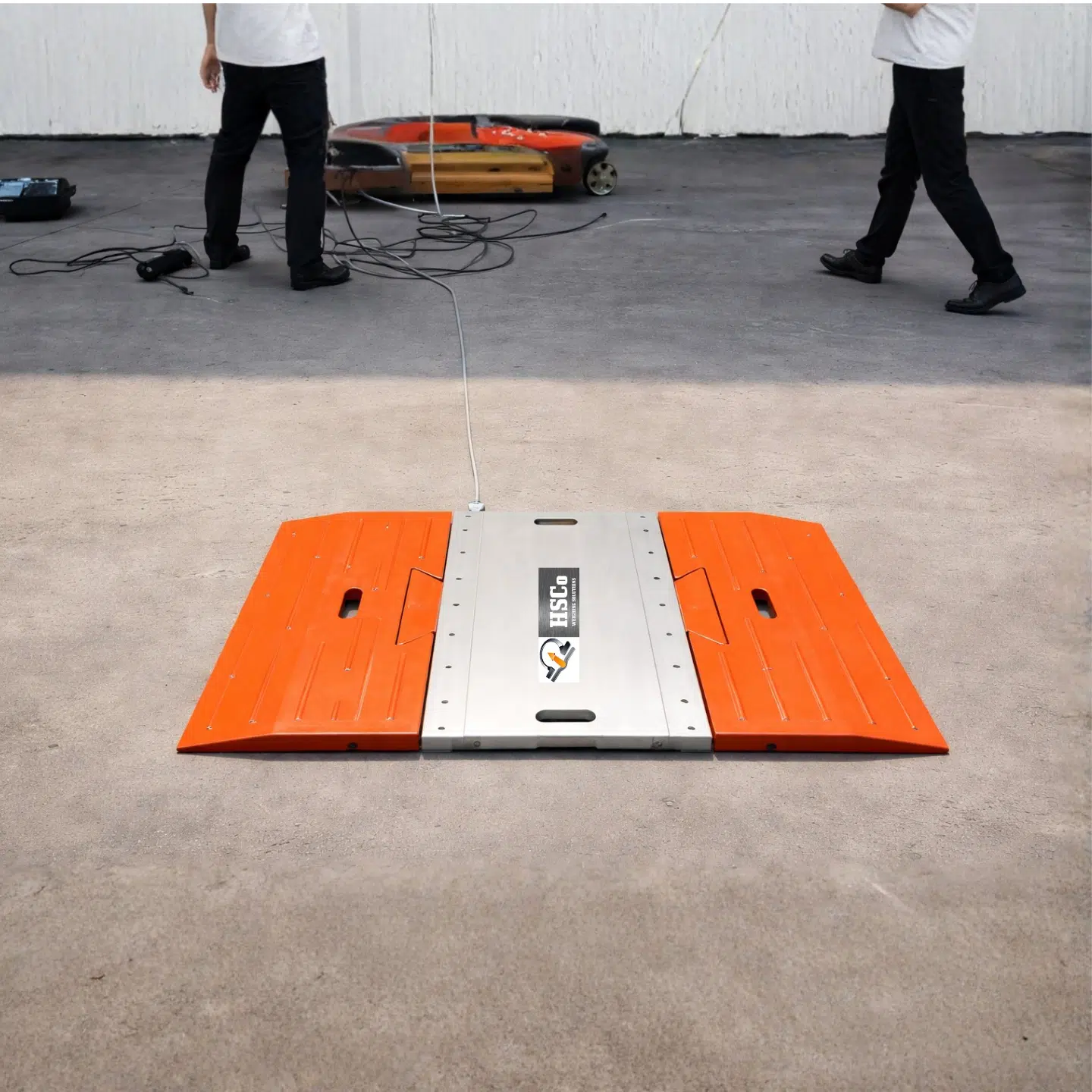

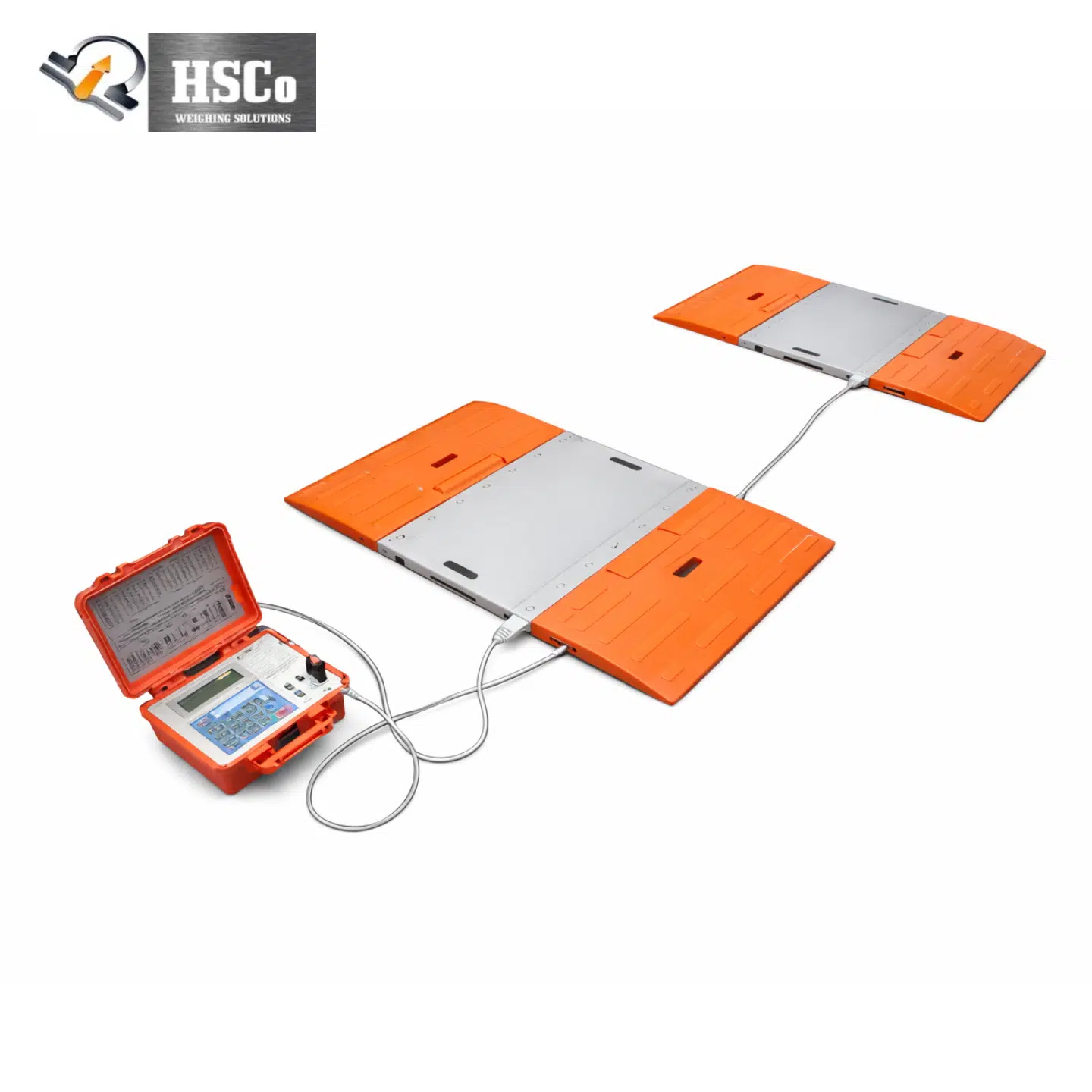

HSCo HSCWP2 weigh pads are portable axle-weighing pads that weigh cars, trucks, trailers and commercial vehicles without a weighbridge. A system is normally one pair of pads and a weighing indicator, with a printer as an option. Drive the vehicle on, axle by axle, and read each axle weight and the total gross weight, for example to check a vehicle against the legal axle limits. The pads have built-in ramps, need no civil foundation and read accurately even on an uneven surface. Three models carry 20, 25 or 30 tonnes per pad.
Why buyers choose HSCWP2 weigh pads
- No weighbridge pit: no civil foundation, quick to set up.
- Axle and gross weight of any vehicle.
- Accurate on uneven ground: 20 micro load cells in each pad.
- Weighs as the vehicle moves: the HSCo Intellinet indicator captures the weight even if the vehicle rolls over the pad.
- Light: aluminium composite, under 25 kg per pad.
- Runs on rechargeable batteries, with extra battery packs as an option.
Models
| Model | Pad size L × B × H (mm) | Ramp size (mm) | Capacity per pad | Axle capacity |
|---|---|---|---|---|
| HSCWP220 | 700 × 430 × 30 | 700 × 350 | 20 t | 40 t |
| HSCWP225 | 800 × 430 × 30 | 800 × 350 | 25 t | 50 t |
| HSCWP230 | 800 × 550 × 45 | 800 × 350 | 30 t | 60 t |
Specifications
| Type | Portable axle weigh pads |
|---|---|
| Capacity | 20 – 30 t per pad; 40 – 60 t per axle |
| Height | 30 or 45 mm (see table) |
| Load cells | 20 micro load cells in each pad |

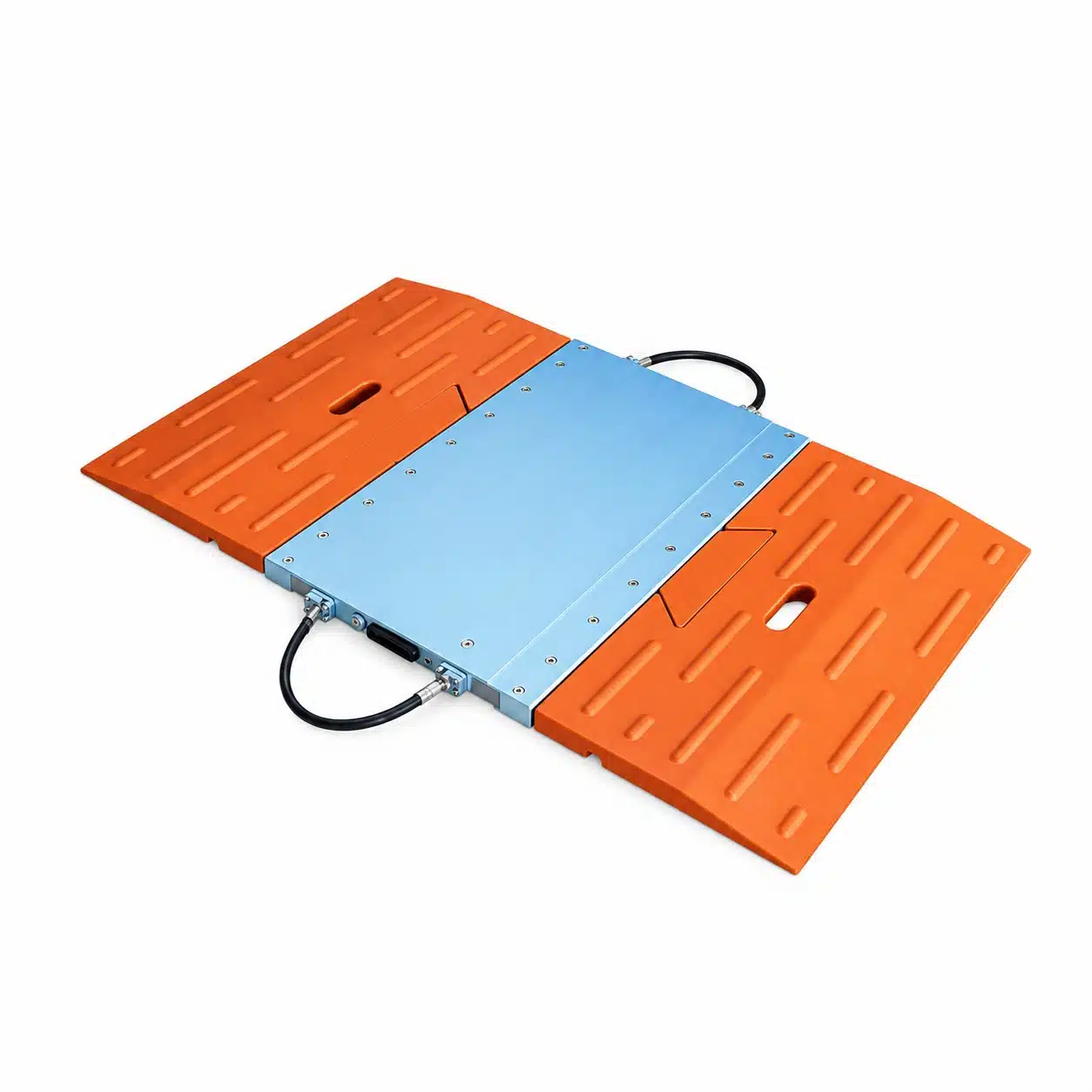

| Build | Aluminium composite, under 25 kg per pad; anti-slip surface; built-in ramps; water and dust resistant |
| Installation | No civil foundation; plug and play |
| Indicator | HSCo Intellinet indicator with dynamic motion weighing; printer optional |
| Connection | Cabled or wireless; plug and play to a Windows desktop or laptop |
| Power | Rechargeable batteries (backup time depends on the model); extra battery packs optional |
| Packing | Wooden packaging for safe delivery |
| Warranty | 1 year |
Which vehicle scale?
For 10 to 40 t per pad, see the HSCWP1 weigh pads; for 2 to 20 t per pad, the HSCWP3. For a permanent installation, the HSCMTW weighbridge; to weigh vehicles without stopping, the in-motion weighbridge. Browse all vehicle scales.
Where it is used
Axle load surveys, mines, ports, cargo terminals, logistics and transport companies, the automobile industry, and cross-checking the readings of an existing weighbridge.
Questions buyers ask

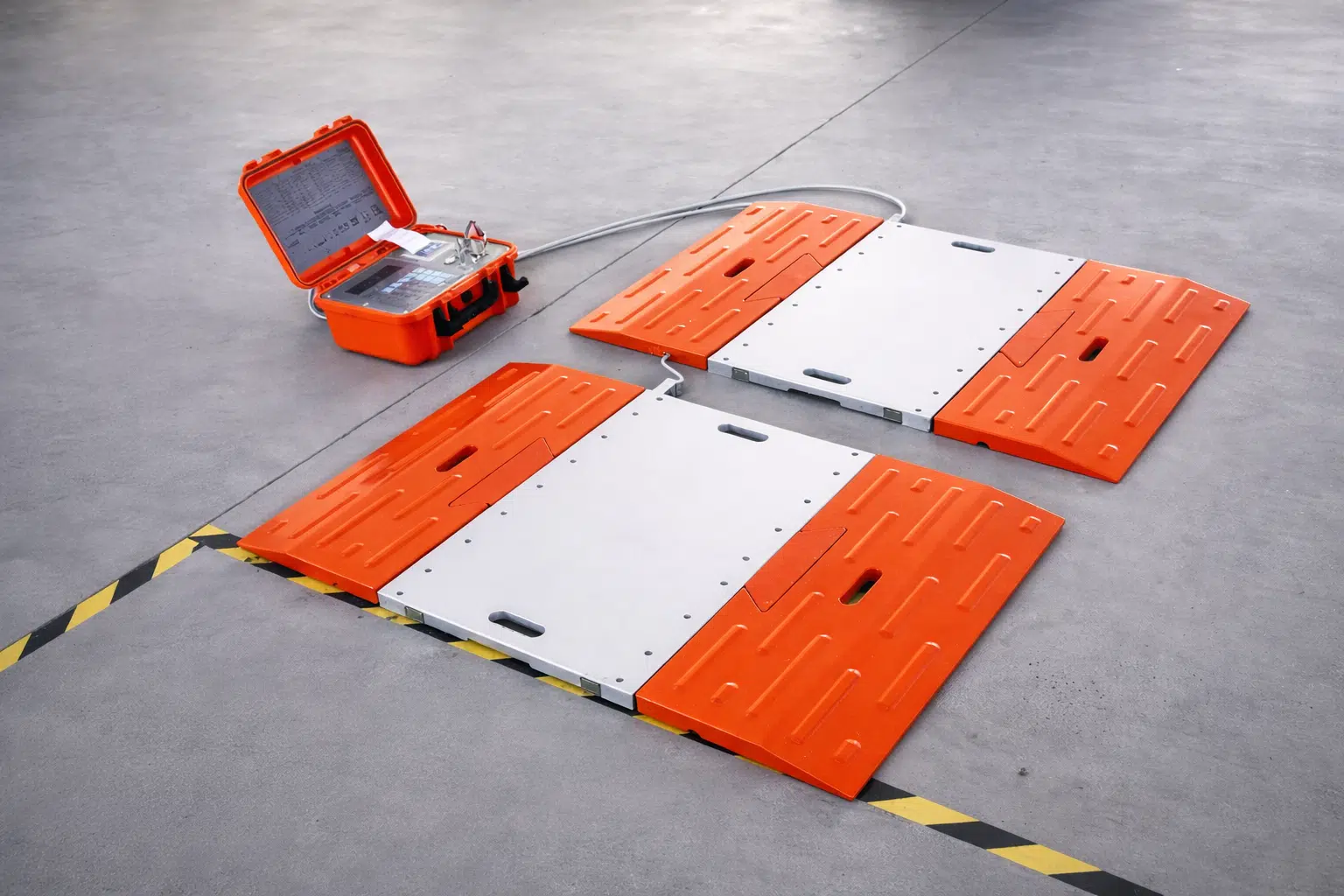

A system is normally one pair of pads with a weighing indicator. Two pairs are shown in the photos.
No. The pads have built-in ramps and read accurately even on an uneven surface.
Yes. It connects by cable or wirelessly, plug and play to a Windows desktop or laptop.
Order or ask for a quotation
Tell us the vehicles you weigh and the axle loads. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
