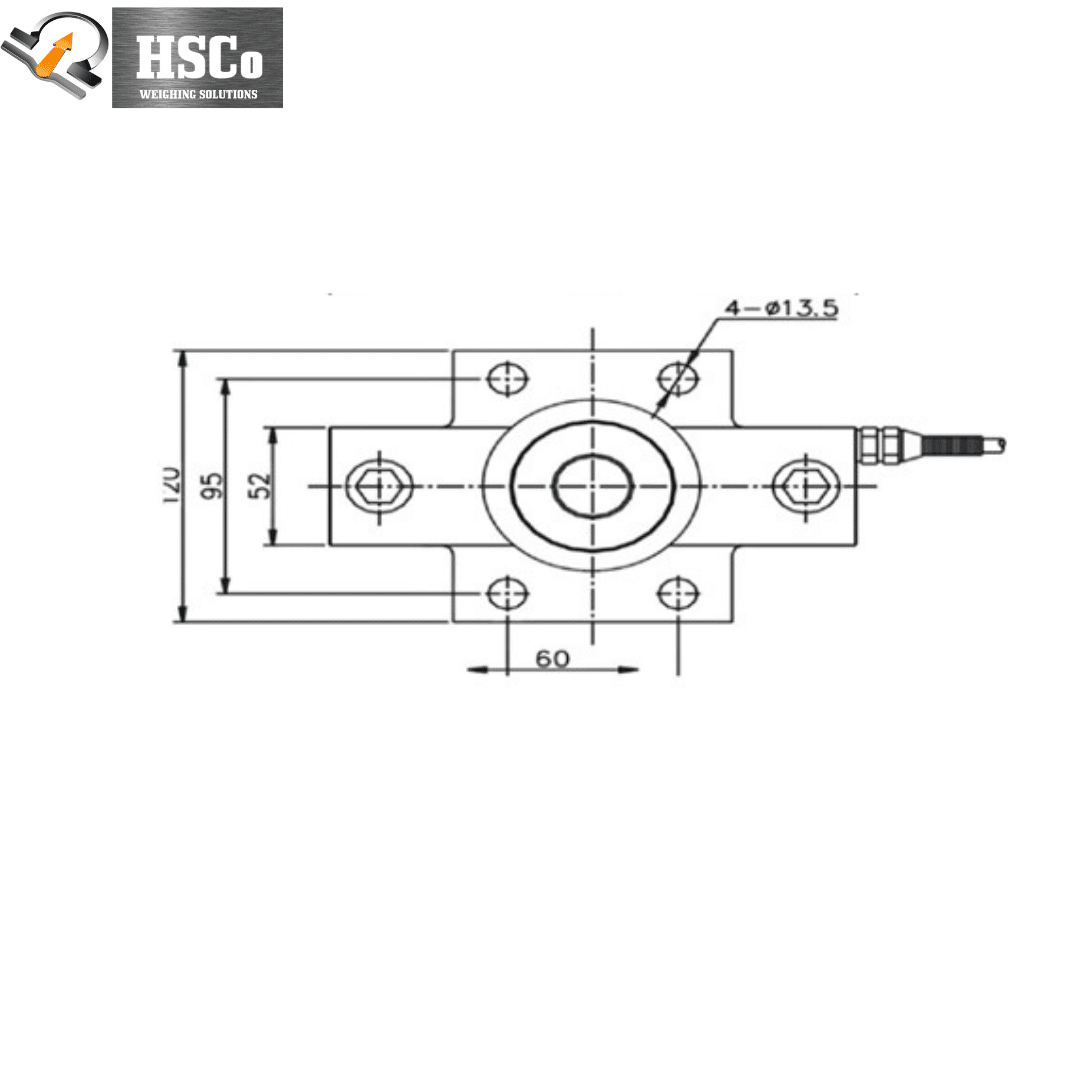

The HSC LCQ-10 is a double-ended shear beam “bridge” load cell for truck and railway weighbridges, in 10, 20 and 30 tonne capacities. It is made of nickel-plated alloy steel with glue-sealed or welded protection to IP67, has a total error within ±0.02% FS, and is built to OIML R60. A steel ball on top centres the load as vehicles move across the bridge.
Why builders choose it
- Weighbridge duty. 10, 20 and 30 t capacities for truck and rail scales.
- Accurate. Total error ±0.02% FS, creep 0.016% FS in 30 minutes.
- Sealed and corrosion-resistant. Nickel-plated alloy steel, IP67.
- Safety margin. Safe overload 150% FS, limit 200% FS.
- Built to OIML R60.
Specifications
| Type | Double-ended shear beam, ball-centred |
|---|---|
| Capacities | 10, 20, 30 t |
| Sensitivity | 2.0 ± 0.004 mV/V |
| Total error | ±0.02% FS max |
| Creep (30 min) | 0.016% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C; span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −35 to +80 °C |
| Overload | Safe 150% FS; limit 200% FS |
| Excitation | 10 – 15 V DC recommended; 15 V DC maximum |
| Input / output impedance | 750 ± 5 Ω / 700 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP67 |
| Material | Nickel-plated alloy steel (stainless steel option) |
| Cable | 5 m or 10 m, Ø5.7 mm; Exc+ red, Exc− black, Sig+ green, Sig− white |
| Standard | OIML R60 |
| Warranty | 1 year |
Where it is used

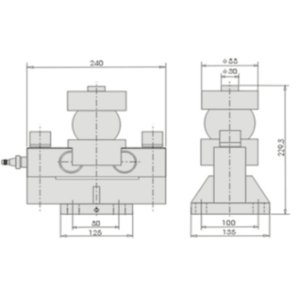

Truck weighbridges, railway weighbridges and other heavy electronic weighing equipment. Compare the ball-and-cup weighbridge load cell, see our HSCMTW weighbridges, or browse all load cells.
Questions buyers ask
10, 20 and 30 tonnes.
It is sealed to IP67.
5 m or 10 m.
Exc+ red, Exc− black, Sig+ green, Sig− white.
