In-Motion Weighbridge HSC-IMW – Weigh Vehicles Without Stopping, up to 150 t
Price on Request
In-motion weighbridge: weighs vehicles on the move at up to 20 km/h, up to 150 t, ±0.2–1.0%, sealed load cells, touch-screen indicator, PC software with vehicle ID. Shallow pit or surface mounted.
हिंदी में इसे वजन काटा कहते हैं. Vajan Kata (वजन काटा) – all types and prices

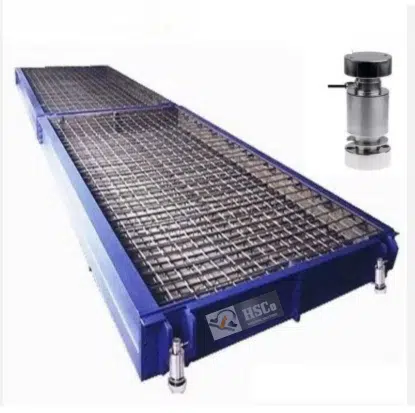

The HSCo in-motion weighbridge weighs vehicles as they drive over it, without stopping. Heavy-duty platforms with hermetically sealed load cells and high-speed, filtering electronics weigh vehicles at up to 20 km/h, for capacities up to 150 tonnes. It cuts queues and saves time at plants, ports, mines and logistics hubs, and a dual static/dynamic mode is available as an option.
Why sites choose it
- No stopping. Vehicles are weighed on the move, up to 20 km/h (10 km/h or less for best accuracy).
- Up to 150 t vehicle capacity.
- Accuracy ±0.2% to ±1.0%, depending on speed and site.
- Static and dynamic modes (dual mode optional).
- Easy install. Shallow pit or surface-mounted with ramps.
- Software included. PC weighing management with reports and vehicle ID.
- Connects by RS232, RS485, Ethernet or Modbus.
Specifications
| Model | HSCo-IMWB series |
|---|---|
| Type | In-motion (dynamic) weighbridge |
| Platform size | 3 m × 0.75 m or 3 m × 1 m (customisable) |
| Capacity | Up to 150 t |
| Load cells | Compression or shear beam, hermetically sealed, C3/C5 class |
| Vehicle speed | Up to 20 km/h; ≤ 10 km/h recommended |
| Accuracy | ±0.2% to ±1.0% (speed and site dependent) |
| Structure | Heavy-duty mild steel or stainless steel |
| Electronics | High-speed A/D converter with intelligent filtering |
| Indicator | 7″ or 10″ TFT touch screen with data logging |
| Interfaces | RS232, RS485, Ethernet, Modbus |
| Software | PC weighing management, reports, vehicle ID |
| Power | 230 V AC ±10%, 50 Hz |
| Working temperature | −10 to +60 °C |
| Installation | Shallow pit, or surface-mounted with ramps |
| Options | ANPR camera, RFID, barrier gate, printer, jumbo display, cloud data storage |
| Warranty | 1 year |
Which weighbridge?
For static weighing of whole vehicles, see the HSCMTW weighbridge and the HSCMTW weighbridge. Browse all weighbridges.
Where it is used
Mining, cement, logistics and transport, ports, toll plazas and manufacturing plants.
Questions buyers ask
No. They are weighed as they drive over, at up to 20 km/h.
±0.2% to ±1.0%, depending on speed and site; slower is more accurate.
No. It fits a shallow pit or sits on the surface with ramps.
Yes, with the optional ANPR camera; RFID is also available.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your vehicle types, traffic and site details. Hindustan Scale Company, Mumbai, since 1955.
