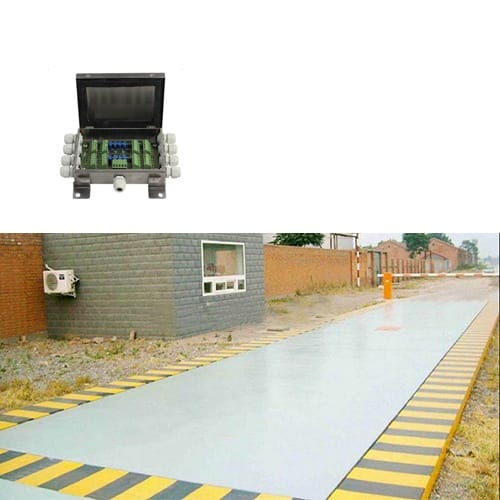

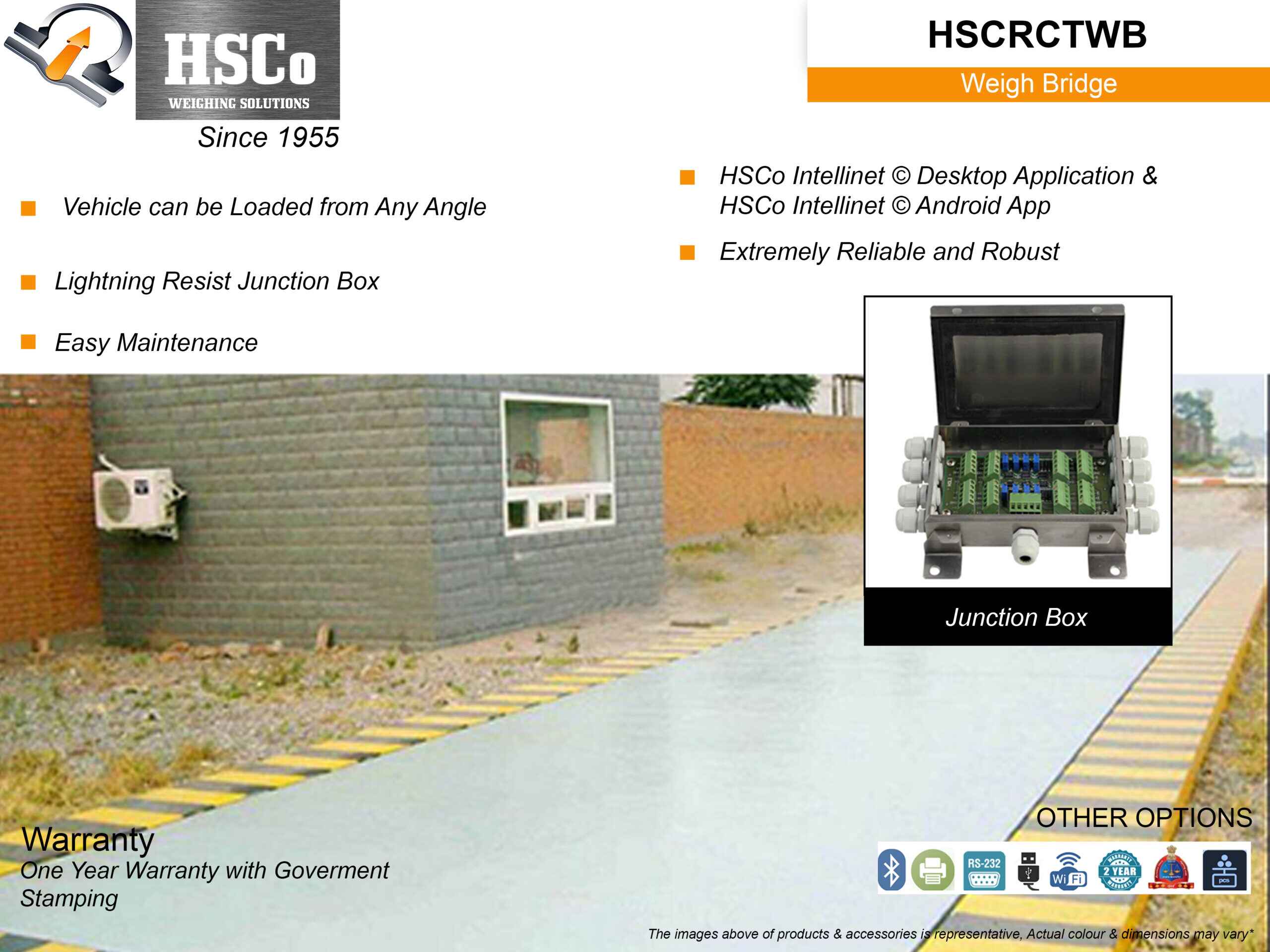

The HSCo HSCRCTWB electronic weighbridge weighs trucks and trailers from 10 up to 120 tonnes. It comes in eleven standard sizes, from a 4.5 × 2.5 m platform to 20 × 3 m, and can be modified to your site. The frame is heavy-duty IS 2062 steel, the load cells sit in in-house made housings with a lightning-resistant junction box, and the deck carries HSCo’s hydrophobic coating against rust and spills. Weights go to the HSCo Intellinet desktop software and Android app. It is supplied with one year of warranty and government stamping. Hindustan Scale Company, in association with Blue Whale Technologies.
Why buyers choose it
- Eleven standard sizes, 10 to 120 t, 4.5 to 20 m long, or built to your requirement.
- Load from any angle. The frame takes lateral and longitudinal stress from a fully loaded vehicle approaching from any direction.
- Heavy-duty steel: IS 2062 frame, with a 50% overload margin in every load-carrying member.
- Protected electronics: lightning-resistant junction box and load-cell housings that shield against surges and static.
- Rust and spill protection: red oxide primer, black enamel and the hydrophobic HSCo Hydra coat; ribbed deck against skidding.
- Software included: HSCo Intellinet desktop application and Android app.
Specifications

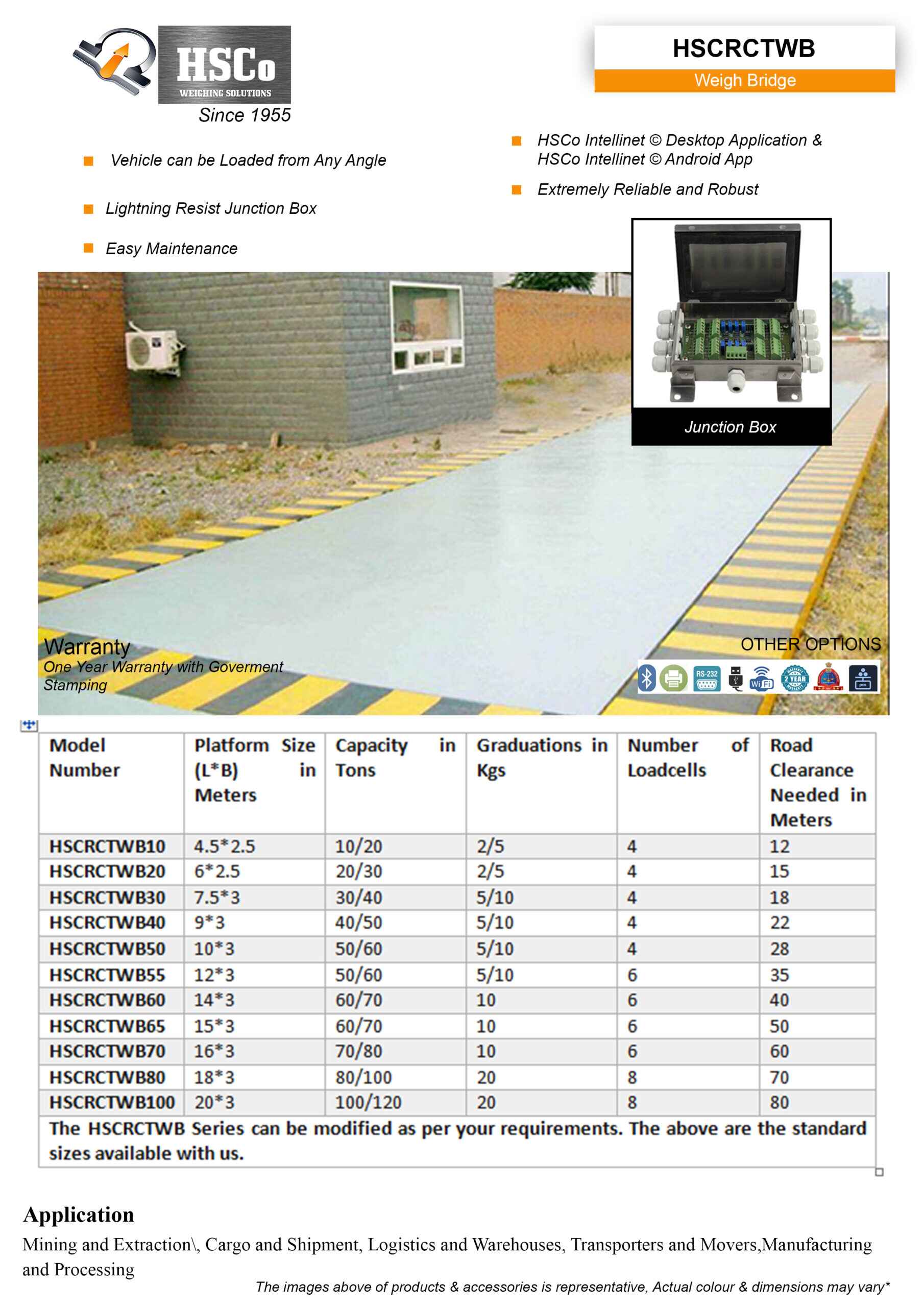

| Model | Platform (L × W) | Capacity | Graduation | Load cells | Road length needed |
|---|---|---|---|---|---|
| HSCRCTWB10 | 4.5 × 2.5 m | 10 / 20 t | 2 / 5 kg | 4 | 12 m |
| HSCRCTWB20 | 6 × 2.5 m | 20 / 30 t | 2 / 5 kg | 4 | 15 m |
| HSCRCTWB30 | 7.5 × 3 m | 30 / 40 t | 5 / 10 kg | 4 | 18 m |
| HSCRCTWB40 | 9 × 3 m | 40 / 50 t | 5 / 10 kg | 4 | 22 m |
| HSCRCTWB50 | 10 × 3 m | 50 / 60 t | 5 / 10 kg | 4 | 28 m |
| HSCRCTWB55 | 12 × 3 m | 50 / 60 t | 5 / 10 kg | 6 | 35 m |
| HSCRCTWB60 | 14 × 3 m | 60 / 70 t | 10 kg | 6 | 40 m |
| HSCRCTWB65 | 15 × 3 m | 60 / 70 t | 10 kg | 6 | 50 m |
| HSCRCTWB70 | 16 × 3 m | 70 / 80 t | 10 kg | 6 | 60 m |
| HSCRCTWB80 | 18 × 3 m | 80 / 100 t | 20 kg | 8 | 70 m |
| HSCRCTWB100 | 20 × 3 m | 100 / 120 t | 20 kg | 8 | 80 m |
| Frame | IS 2062 steel; 50% overload margin; two coats red oxide primer, black enamel; HSCo Hydra hydrophobic coat; ribbed top deck |
|---|---|
| Electronics | Lightning-resistant, weatherproof junction box; in-house load-cell housings; water-resistant PCB |
| Software | HSCo Intellinet desktop application and Android app |
| Options | Bluetooth; printer; RS-232; USB; Wi-Fi; POS indicator; extended warranty |
| Certification | Government stamping; ISO 9001:2015 certified company |
| Warranty | 1 year |
Which weighbridge?

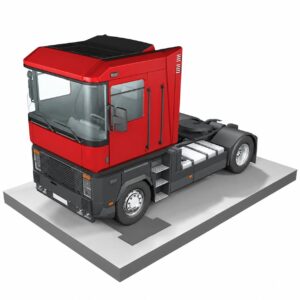

For another HSCo weighbridge series, see the HSCMTW weighbridge; to weigh vehicles while they move, the in-motion weighbridge; for a portable option with no civil work, the HSCWP1 weigh pads. Browse all vehicle scales.
Where it is used
Mines and quarries, ports and cargo terminals, logistics parks and warehouses, transporters, and manufacturing and process plants that buy or sell by the truckload.
Questions buyers ask
Eleven standard models from 4.5 × 2.5 m (10/20 t) to 20 × 3 m (100/120 t), and the series can be modified to your site.
From 12 m for the smallest model to 80 m for the 20 m platform; the table gives each model.
Yes. The hydrophobic HSCo Hydra coat protects the top plate from rust, detergents and acid spills.
A lightning-resistant junction box and shielded load-cell housings protect them from surges and static discharge.
Yes: the HSCo Intellinet desktop application and Android app.
Ask for a quotation
Tell us your vehicles, the load you weigh and your site size. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
