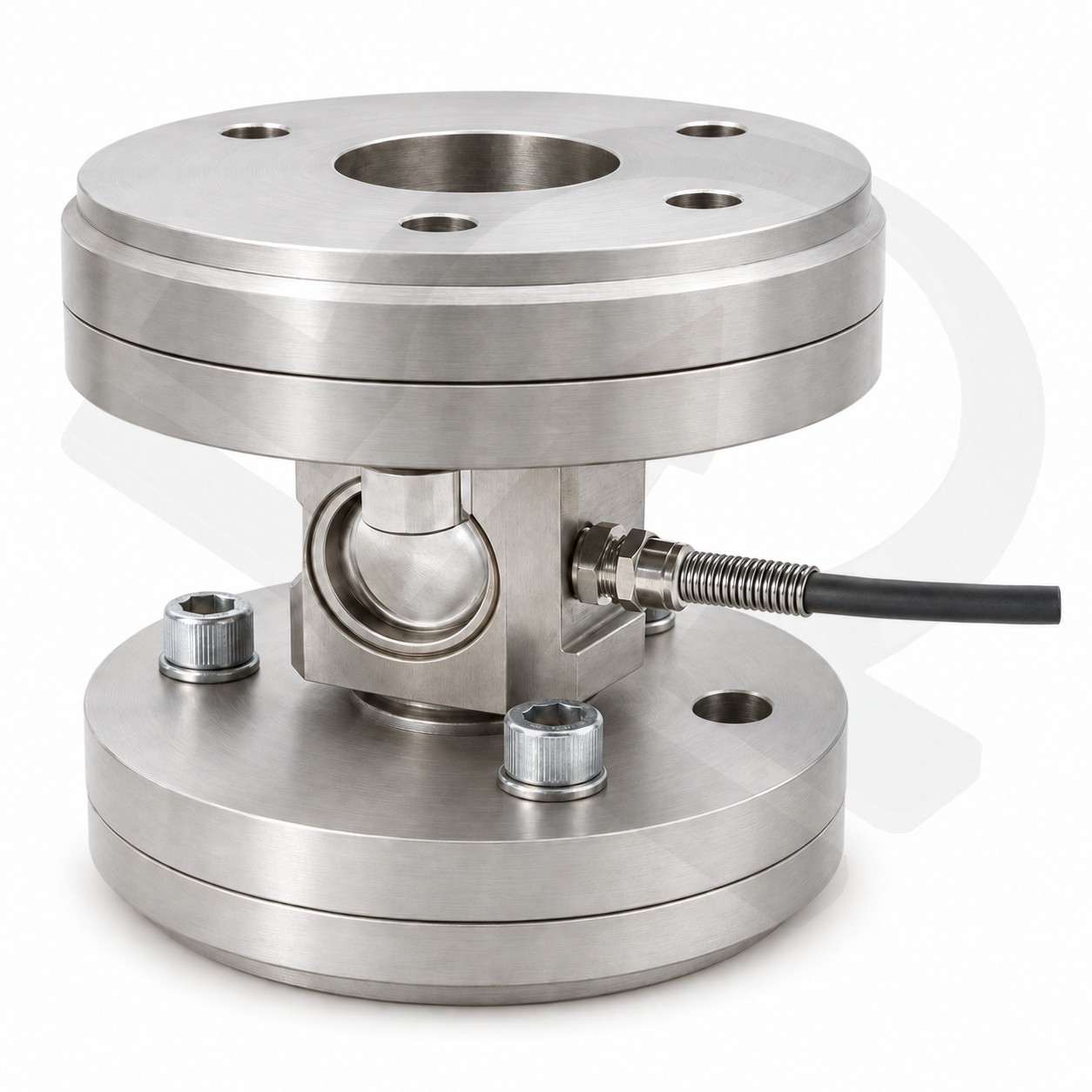

The HSC 1AX series tank weighing assembly turns a tank, silo or hopper into a scale. Each module holds a column load cell between two flanged plates that mount directly to the tank, with a support bolt that stops the tank overturning. It is made of nickel-plated alloy steel or stainless steel, covers 5 t to 100 t per module, and connects through a junction box to a weighing indicator.
Why plants choose it
- Mounts directly to tanks, hoppers and silos.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process control.
- Rugged: nickel-plated alloy steel or stainless steel.
- Easy to maintain and to connect to control and data systems.
- 5 t to 100 t, in capacities and layouts to suit.
Specifications
| Series | HSC 1AX load cell mounting assembly |
|---|---|
| Capacity | 5 t to 100 t |
| Load cell | Column type between flanged top and bottom plates |
| Mounting | Mounts directly to the tank; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| System parts pictured | Mounting assembly, junction box, weighing indicator, printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
For 10 t to 50 t, see the ZSD series; for 2.5 t to 100 t, the MNDQ series. Complete systems: the indoor and outdoor tank weighing systems. Browse all tank weighing scales.
Where it is used
Tanks, silos, hoppers and vessels in process plants, and platform scales.
Questions buyers ask
How many modules does a tank need?
Usually one per leg or support; tell us the tank layout and full weight and we will size it.
What capacity does the 1AX series cover?
5 t to 100 t per module.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, number of legs and full weight. Hindustan Scale Company, Mumbai, since 1955.
