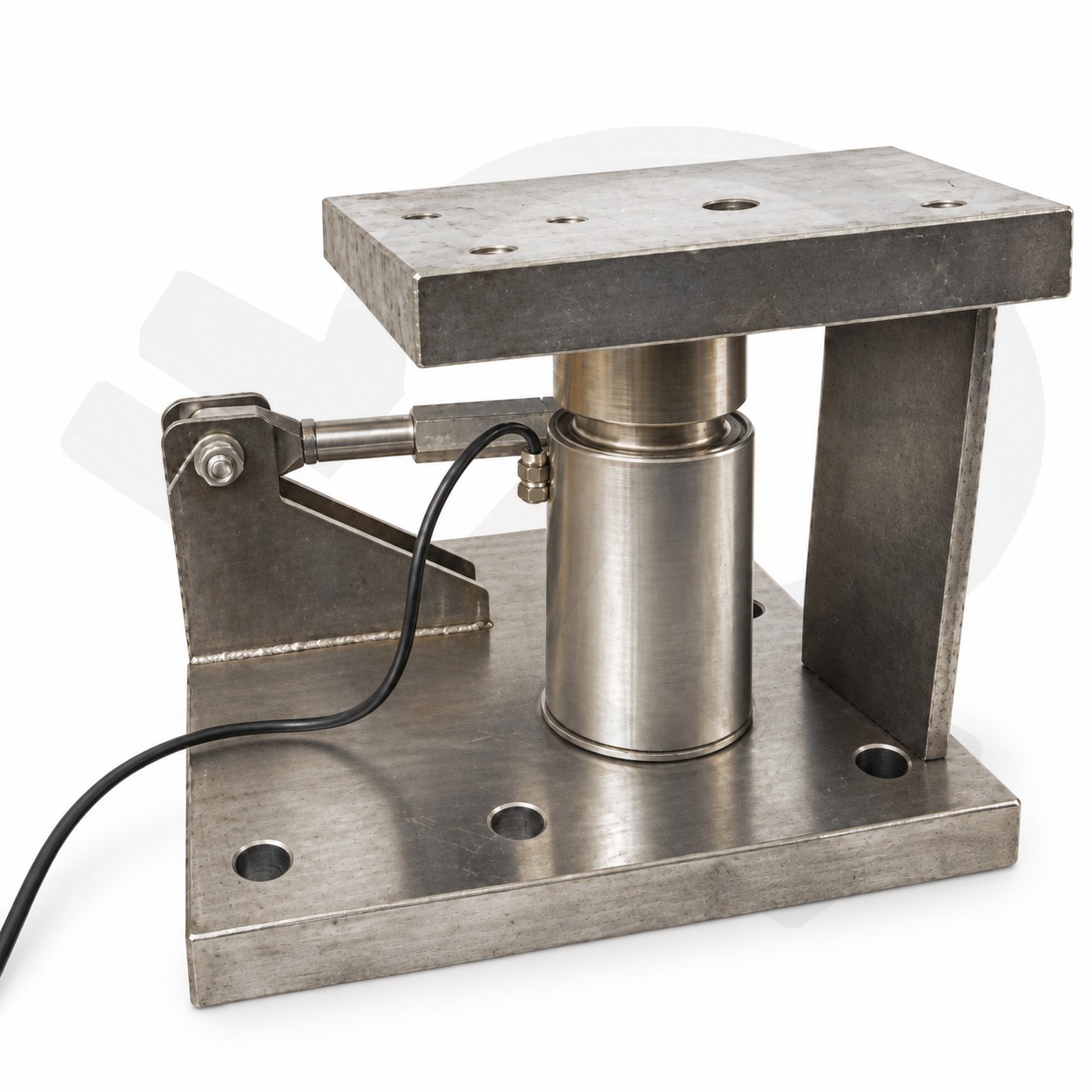

The HSC ZSJ tank weighing assembly (10 t to 100 t) turns a tank, silo or hopper into a scale. Each module holds a column load cell under a top plate, with a side guide plate and a stay rod, and mounts directly to the tank; a support bolt stops the tank overturning. It is made of nickel-plated alloy steel or stainless steel and connects through a junction box to a weighing indicator.
Why plants choose it
- Mounts directly to tanks, hoppers and silos.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process control.
- Rugged: nickel-plated alloy steel or stainless steel.
- 10 t to 100 t, in capacities and layouts to suit.
Specifications
| Series | HSC ZSJ load cell mounting assembly |
|---|---|
| Capacity | 10 t to 100 t |
| Load cell | Column type under a top plate, with side guide plate and stay rod |
| Mounting | Mounts directly to the tank; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |

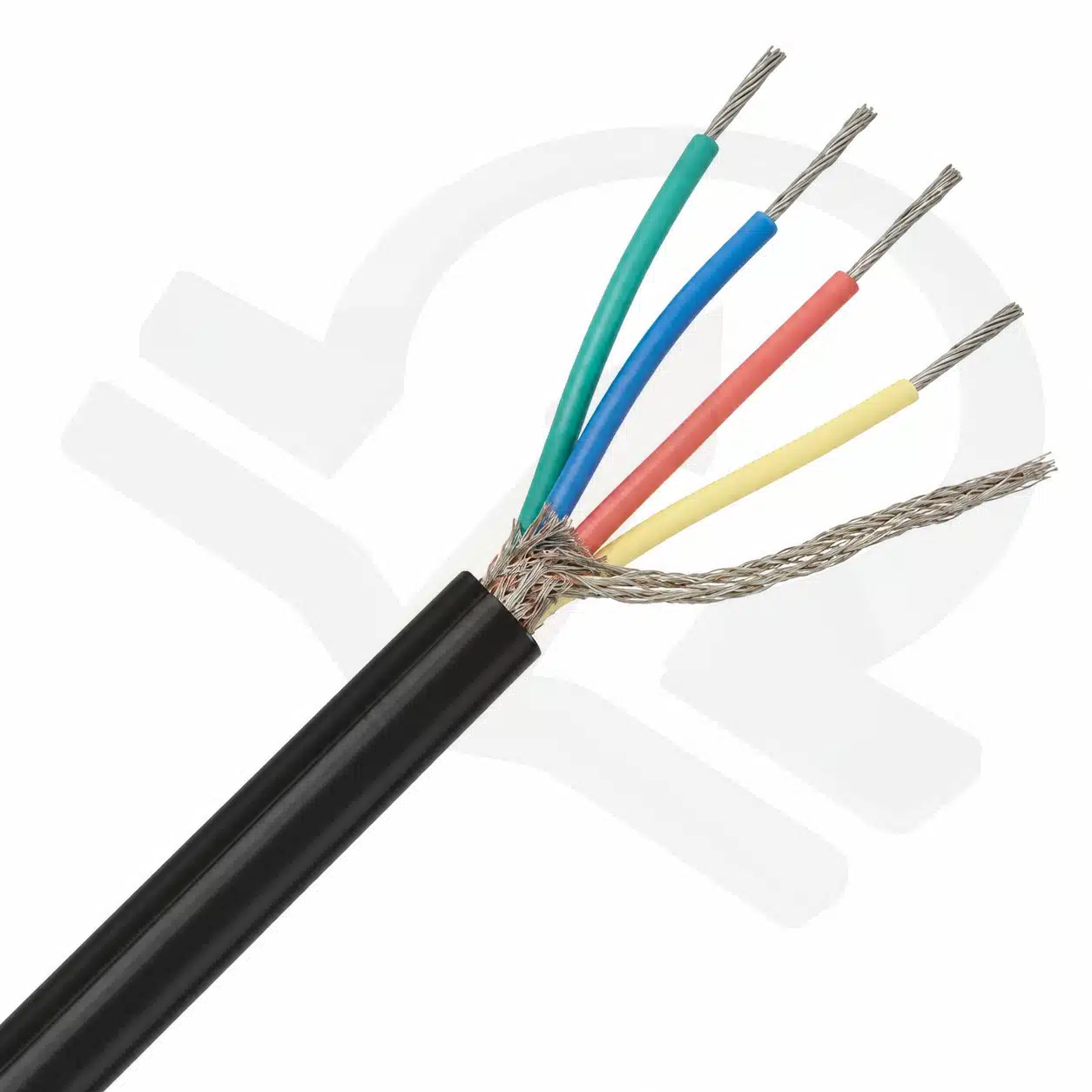

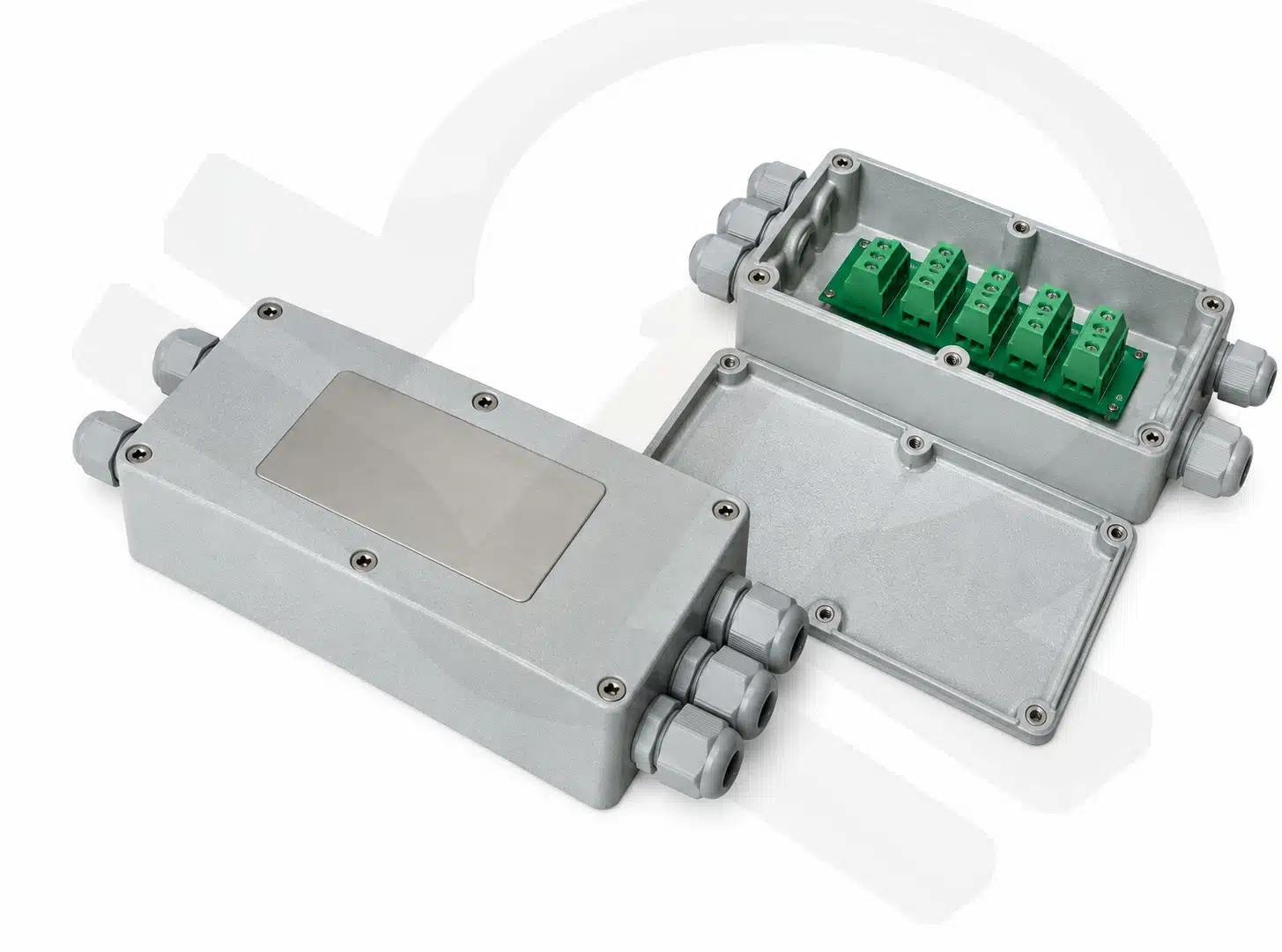

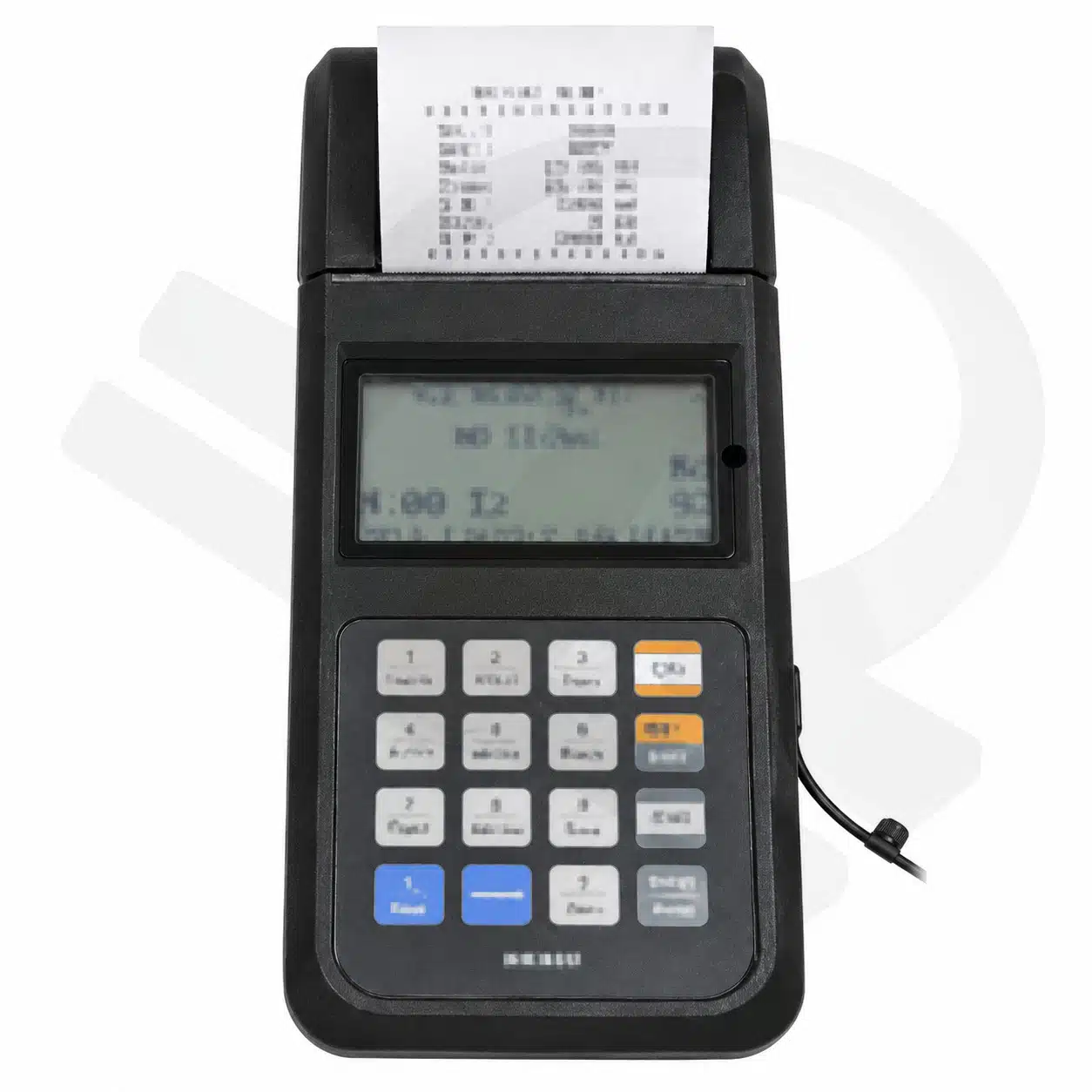

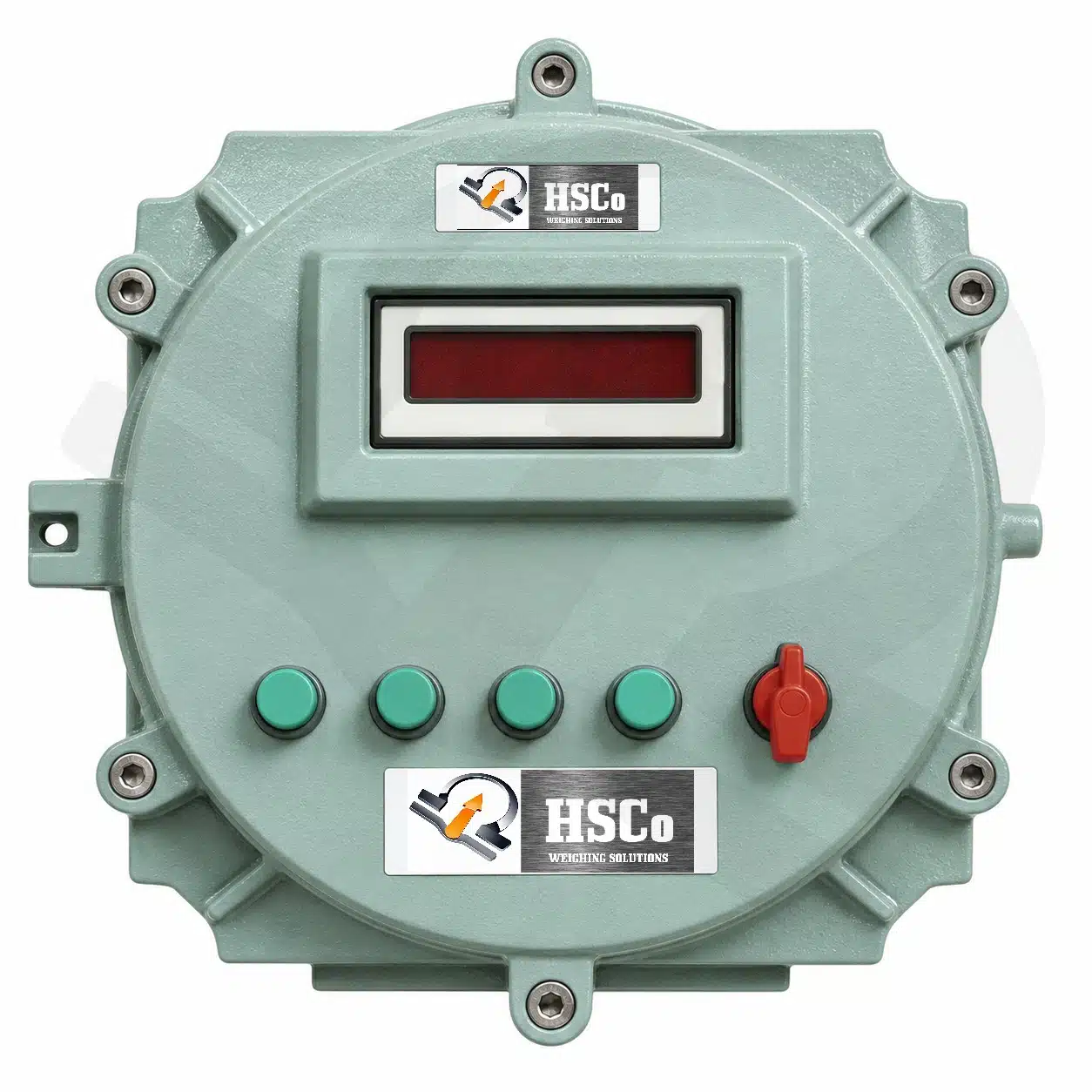

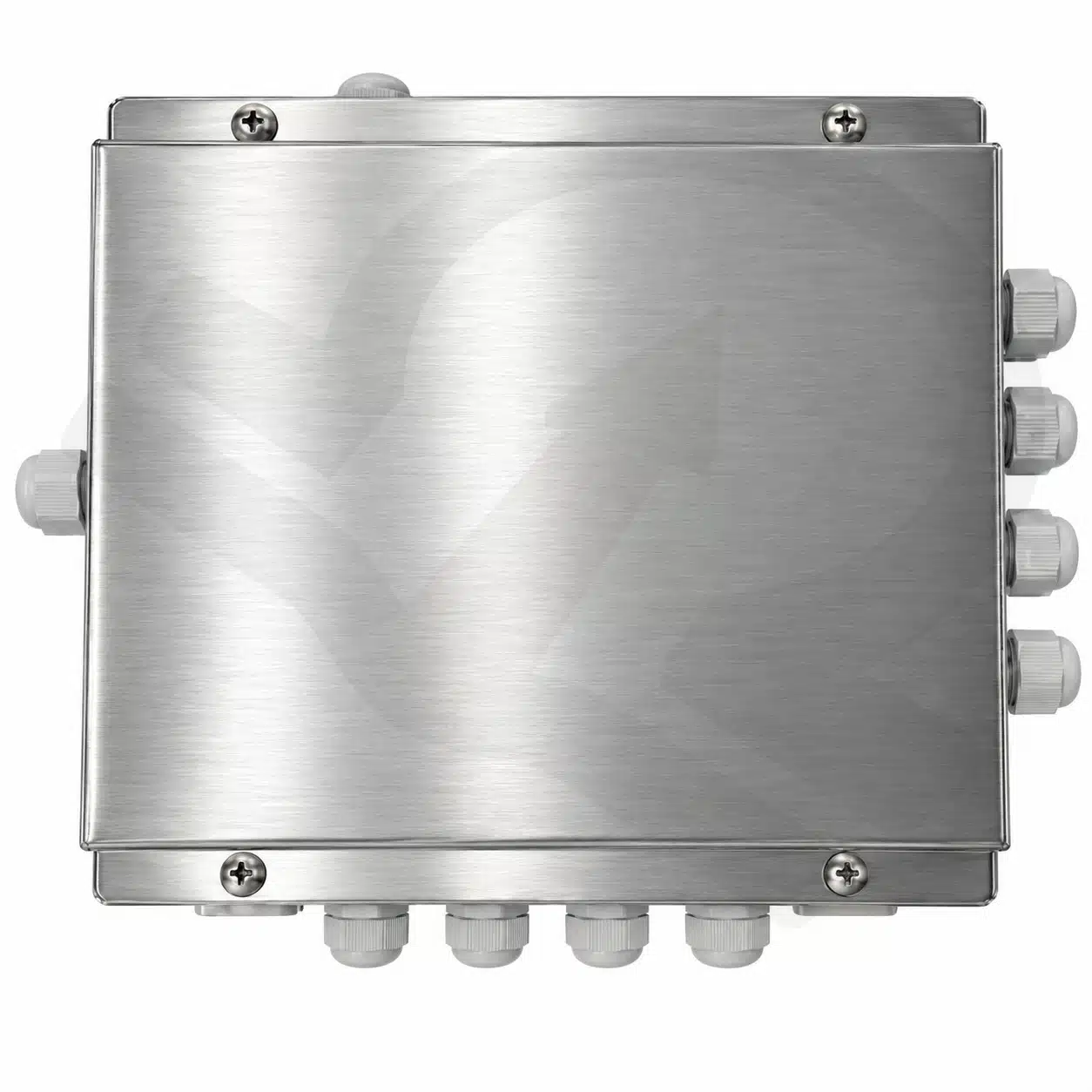

| System parts pictured | Mounting assembly, junction box, weighing indicator, printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
For another ZSJ module (20 t to 80 t), see the ZSJ 20 – 80 t; for 5 t to 100 t, the 1AX series; for up to 150 t, the MQS1 series. Complete systems: the indoor and outdoor tank weighing systems. Browse all tank weighing scales.
Where it is used

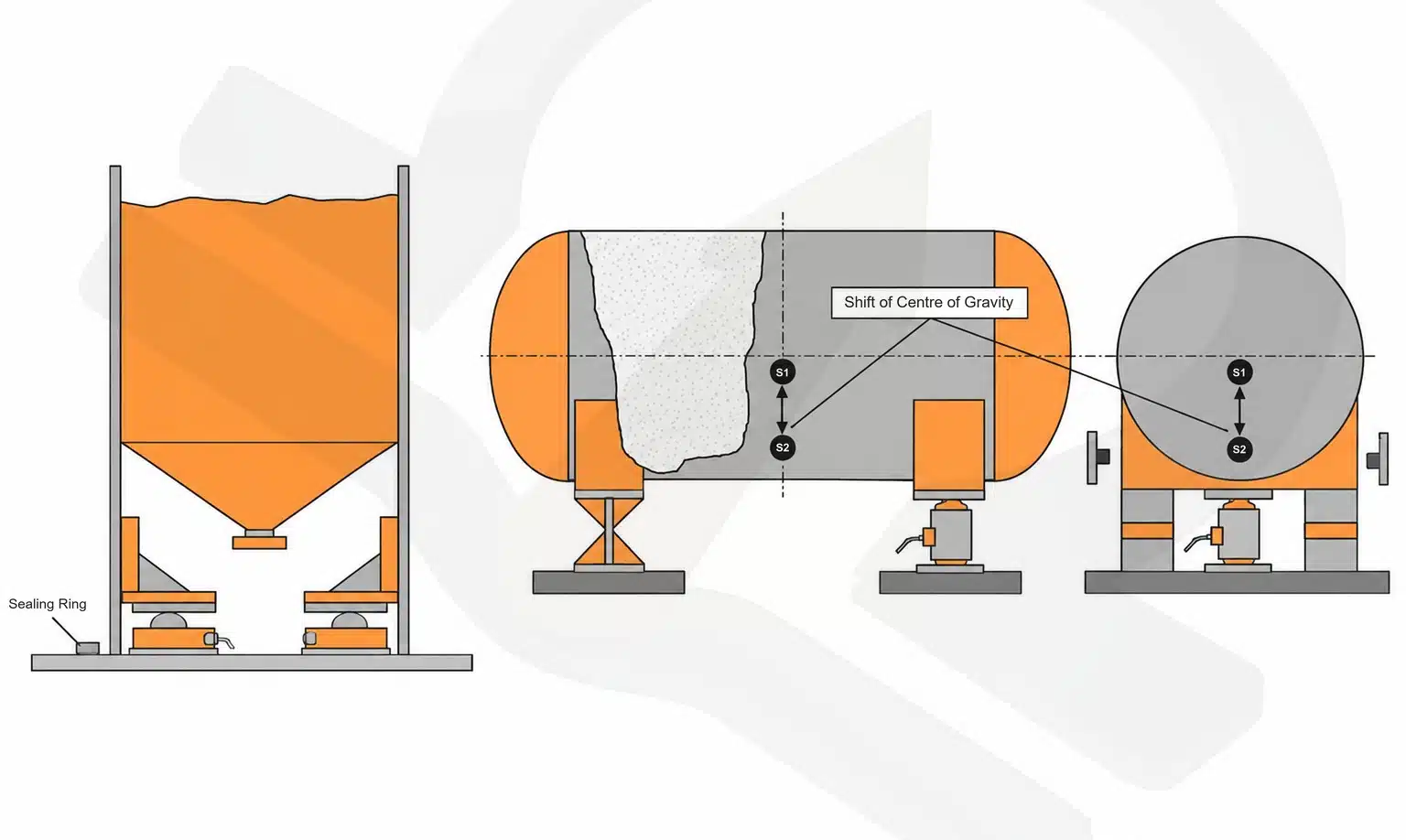

Tanks, silos, hoppers and vessels in process plants, and platform scales.
Questions buyers ask
How many modules does a tank need?
Usually one per leg or support; tell us the tank layout and full weight and we will size it.
What capacity does this assembly cover?
10 t to 100 t per module.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
