Tank Weighing Assembly HSC-MNDQ – 2.5 t to 100 t Load Cell Mounts
Price on Request
Load cell mounting assembly that turns tanks, silos and hoppers into scales: 2.5 t to 100 t, bolts to the tank leg, anti-overturn support bolt, nickel-plated alloy or stainless steel, junction box and indicator. 1-year warranty.

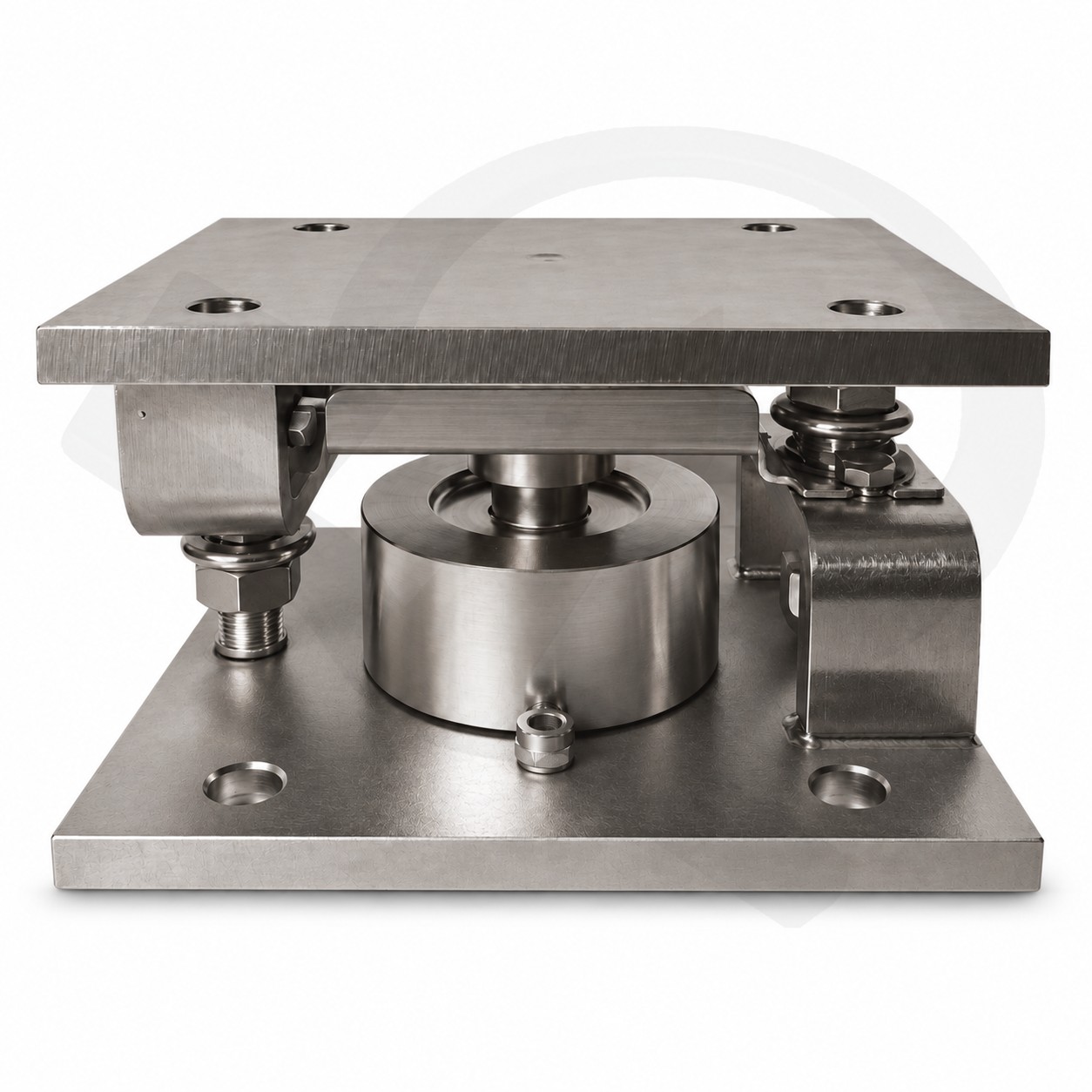

The HSC MNDQ series tank weighing assembly turns a tank, silo or hopper into a scale. Each module holds a load cell in a mounting frame that bolts straight to the tank leg, with a support bolt that stops the tank overturning. The MNDQ series covers 2.5 t to 100 t and connects through a junction box to a weighing indicator, so you can see and control the contents of the tank by weight.
Why plants choose it
- Wide range. 2.5 t to 100 t, for small hoppers up to large silos.
- Mounts directly to tanks, hoppers and silos.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process and batch control.
- Rugged. Nickel-plated alloy steel or stainless steel construction.
- Easy to maintain and to connect to control and data systems.
At a glance
| Series | HSC MNDQ load cell mounting assembly |
|---|---|
| Capacity | 2.5 t to 100 t |
| Mounting | Bolts to tank leg; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| System parts pictured | Mounting assembly, aluminium and stainless junction boxes, flameproof indicator, handheld printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Junction box, indicator, cable | Available with the mounts, or separately |
| Warranty | 1 year |
Which tank weighing assembly?
For heavier modules from 10 t to 50 t, see the ZSD series tank weighing assembly. For a complete tank-stock system with display and alerts, see the static indoor tank weighing system. Browse all tank weighing scales.
Questions buyers ask
How does tank weighing work?
Each leg of the tank stands on a load cell module. The load cells feed a junction box and an indicator, which shows the total weight of the tank and its contents.
What capacities are available?
From 2.5 t to 100 t. Tell us the tank’s full weight and number of legs, and we will size the modules.
Will the tank tip over on the load cells?
No. Each module has a support bolt that stops the tank overturning.
Can it work in a hazardous area?
A flameproof weighing indicator is available, as shown in the photos. Tell us your area classification.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, full weight and number of legs. Hindustan Scale Company, Mumbai, since 1955.
