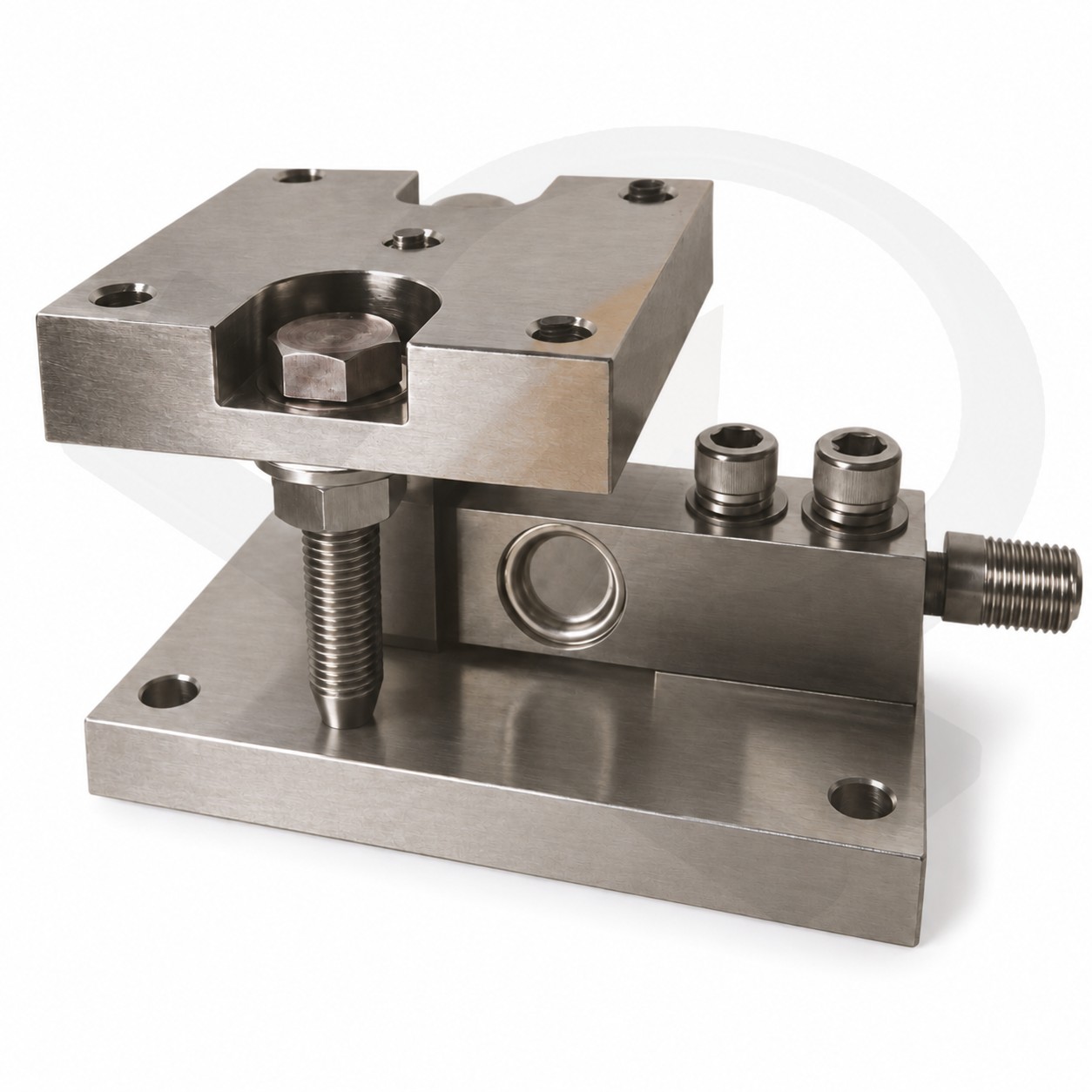

The HSC MA1 tank weighing assembly (0.1 t to 10 t) is a load-cell mounting module that turns a tank, hopper or vessel into a scale. It mounts directly under the tank’s legs or supports, and a support bolt stops the tank overturning. It is made of nickel-plated alloy steel or stainless steel and connects through a junction box to a weighing indicator. Tell us the full-tank weight and how many legs it has, and we will size the set.
Why plants choose the MA1
- Mounts directly to the tank.
- Support bolt stops overturning.
- Nickel-plated alloy steel or stainless steel.
- Easy to maintain.
Specifications
| Model | HSC MA1 |
|---|---|
| Range | 0.1 t to 10 t |
| Type | Load-cell mounting module with shear-beam load cell |
| Material | Nickel-plated alloy steel, or stainless steel |
| Safety | Support bolt against overturning |
| System parts | Junction box, cable and weighing indicator (shown in the photos) |
| Capacity per module | Sized to your tank – ask us |
| Warranty | 1 year |
Which assembly?
For 0.1 t to 5 t, see the HSC MAX; for 500 kg to 10 t on a V-frame, the HSC MT3; for 5 t to 25 t, the HSC MSD; for 0.5 t to 60 t, the HSC LFM. Browse all tank weighing scales.
Where it is used
Process tanks, hoppers, silos and mixing vessels in chemical, food, pharma and other plants.
Questions buyers ask
How many modules do I need?
Usually one under each leg or support of the tank.
Which capacity should I choose?
Tell us the full-tank weight and the number of legs; we will size the modules.
What else is needed?
A junction box, cable and a weighing indicator; we supply the complete system.
Order or ask for a quotation
Tell us what you need it for and we will suggest the right model and size. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
