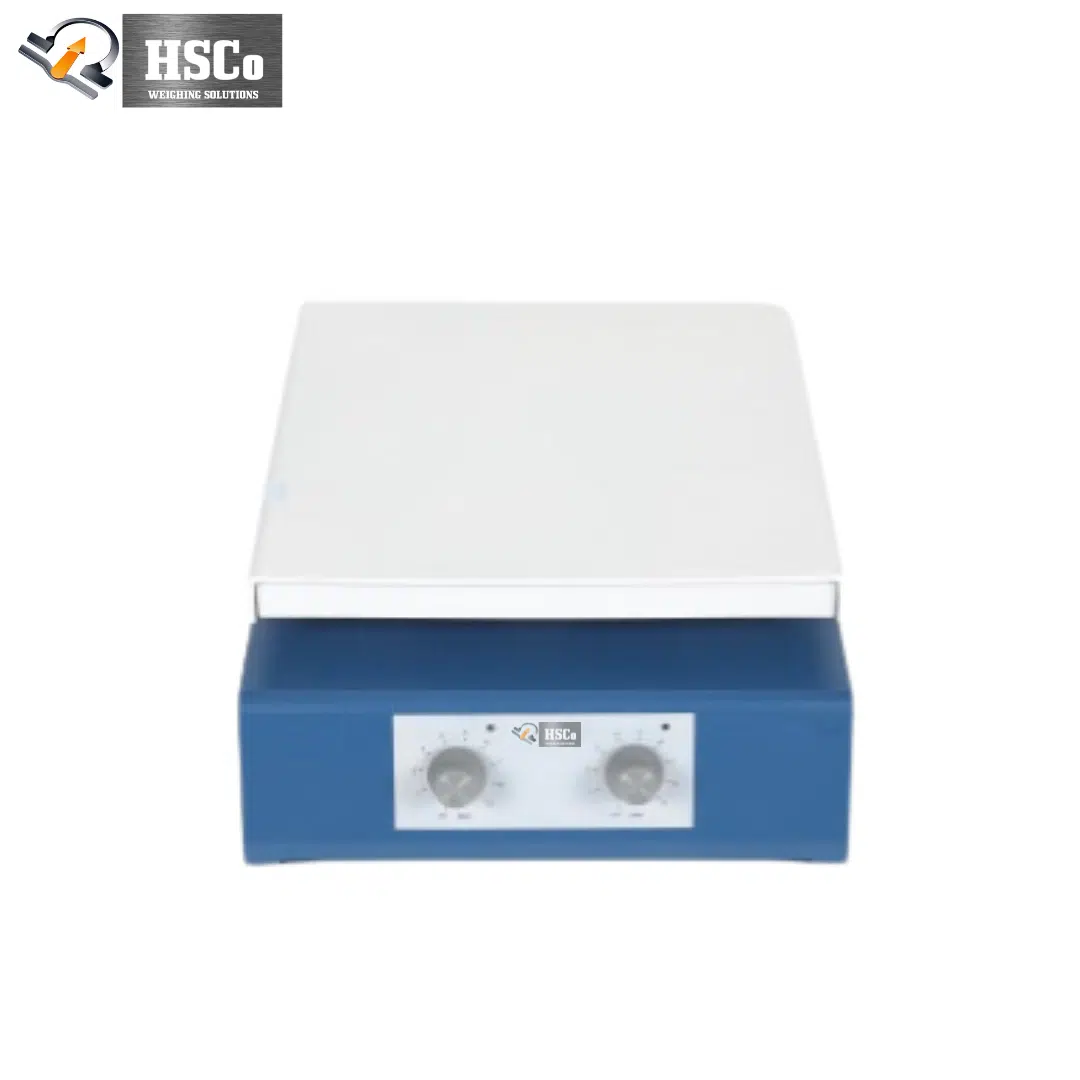

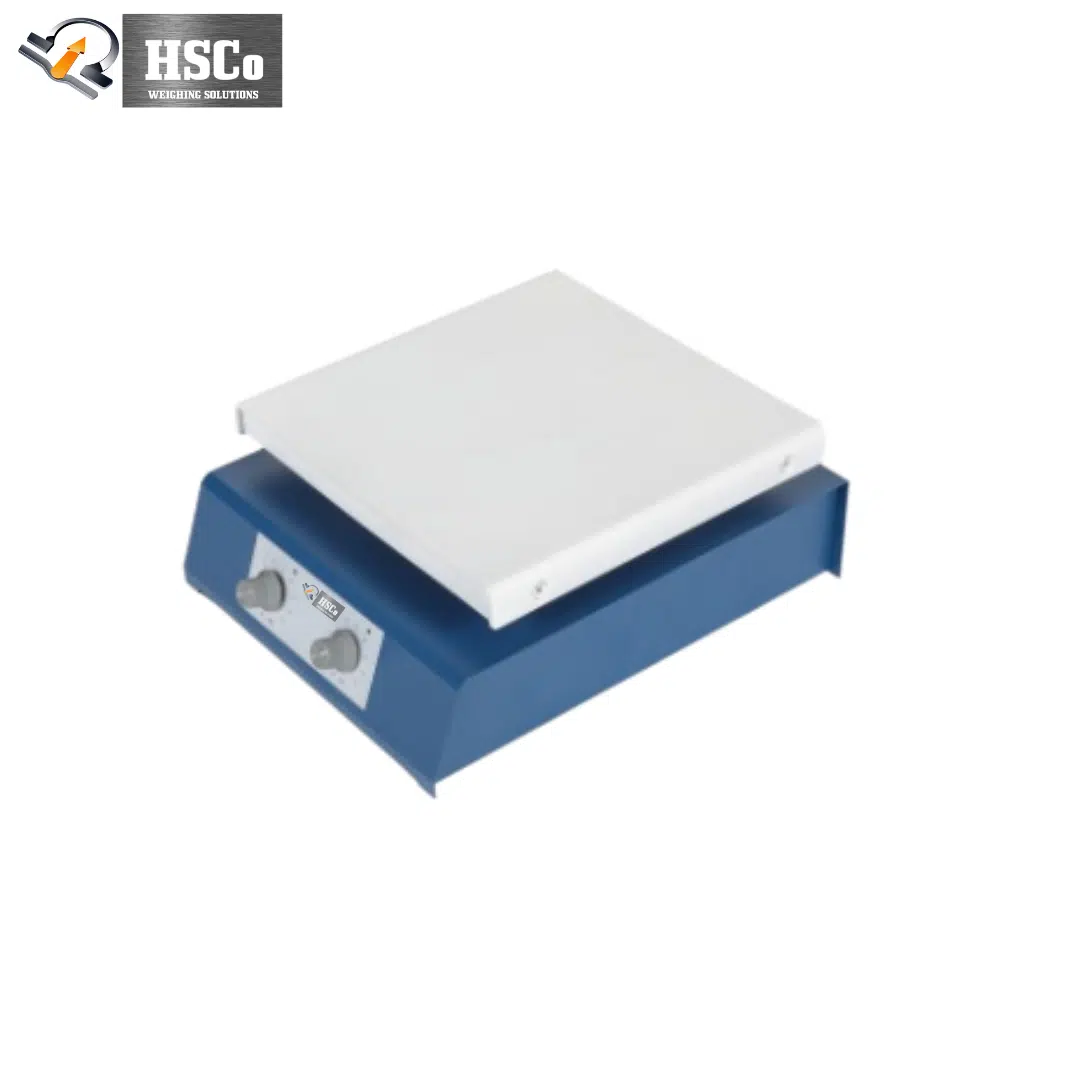

Analogue Hot-Plate Magnetic Stirrer HSC-AM50 – 35 to 400 °C, 150 to 1,500 rpm
Price on Request
Analogue hot-plate magnetic stirrer HSC-AM50: knob control, 150 – 1,500 rpm, plate 35 – 400 °C, ceramic-coated aluminium plate Ø 150 mm, stir bars 25 – 60 mm, optional PT1000 sensor, 600 W, IP21. For routine lab mixing. 1-year warranty.
The HSCo HSC-AM50 is a simple, sturdy analogue hot-plate magnetic stirrer for routine lab mixing where digital control is not needed: sample preparation, solution mixing and chemical reactions. Knobs set the stirring speed, 150 to 1,500 rpm, and the plate temperature, 35 to 400 °C. The plate is ceramic-coated aluminium, it takes stir bars of 25 – 60 mm, and it runs quietly and steadily on 600 W.
Why labs choose it
- Heats and stirs: 35 – 400 °C, 150 – 1,500 rpm.
- Simple knob control, continuously adjustable.
- Ceramic-coated aluminium plate, Ø 150 mm.
- Quiet, steady stirring for routine work.
- Optional PT1000 sensor for sample temperature.
Specifications
| Model | HSC-AM50 |
|---|---|
| Stirring positions | 1 |
| Speed | 150 – 1,500 rpm; 1 rpm resolution |
| Plate temperature | 35 – 400 °C |
| Plate | Ceramic-coated aluminium, Ø 150 mm |
| Stir bars | 25 – 60 mm |
| External sensor | PT1000 (optional) |
| Display | LED |
| Power | 600 W; 110 – 130 V or 220 – 240 V, 50/60 Hz |
| Protection | IP21 |
| Size / weight | 190 × 290 × 100 mm / 3.5 kg |
| Working conditions | 5 – 40 °C; up to 80% humidity |
| Warranty | 1 year |
Which magnetic stirrer?
With a digital display and timer, see the heating plate with timer magnetic stirrer (Pro Series); for large volumes up to 150 L, the stainless steel magnetic stirrers. Browse all temperature control equipment.
Where it is used
General laboratories: sample preparation, solution mixing and chemical reactions.
Questions buyers ask
Yes. The plate heats from 35 to 400 °C while it stirs.
25 to 60 mm.
Yes, with the optional PT1000 external sensor.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
