The HSC LCP-7 is a large single-point load cell for jumbo platform scales, in capacities from 250 to 1,000 kg. It is made of alloy steel with a moisture-proof seal (IP65), gives 2.0 mV/V with ±0.03% FS total error, and takes up to 200% overload. It mounts by eight threaded holes, 20 mm deep, and comes with a 6 m cable.
Why scale makers choose it
- 250 to 1,000 kg on a single cell.
- Alloy steel, moisture-proof seal, IP65.
- Tough: limit overload 200% FS.
- Long 6 m cable.
Specifications
| Model | HSC LCP-7 |
|---|---|
| Type | Single point, for jumbo platform scales |
| Capacities | 250, 300, 500, 750, 800, 1,000 kg |
| Sensitivity | 2.0 ± 0.2 mV/V |
| Total error | ±0.03% FS |
| Creep (30 min) | 0.03% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −35 to +70 °C |
| Overload | Safe 150% FS; limit 200% FS |
| Excitation | 10 V DC recommended; 15 V DC max |
| Input / output impedance | 400 ± 10 Ω / 352 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP65, moisture-proof seal |
| Material | Alloy steel |

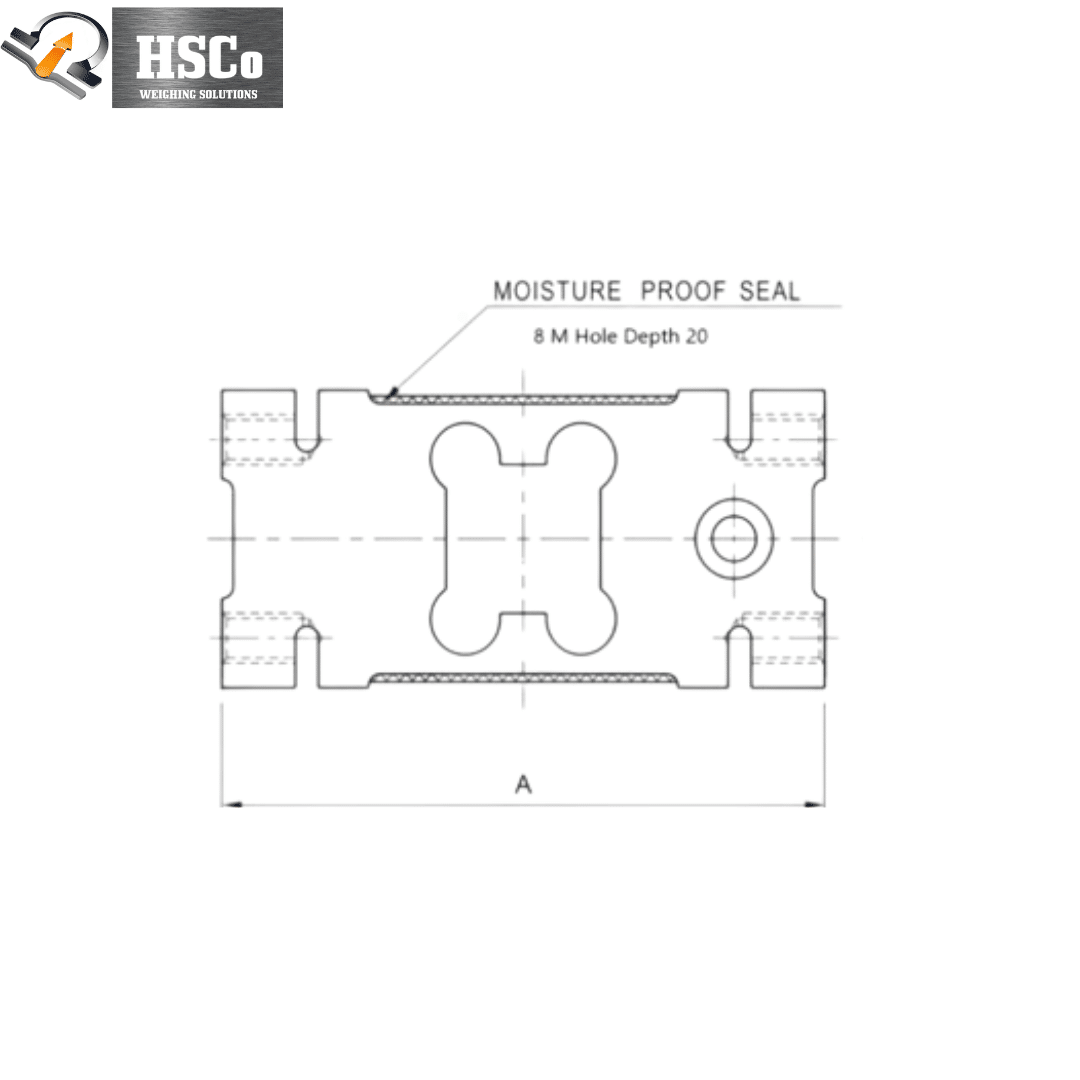

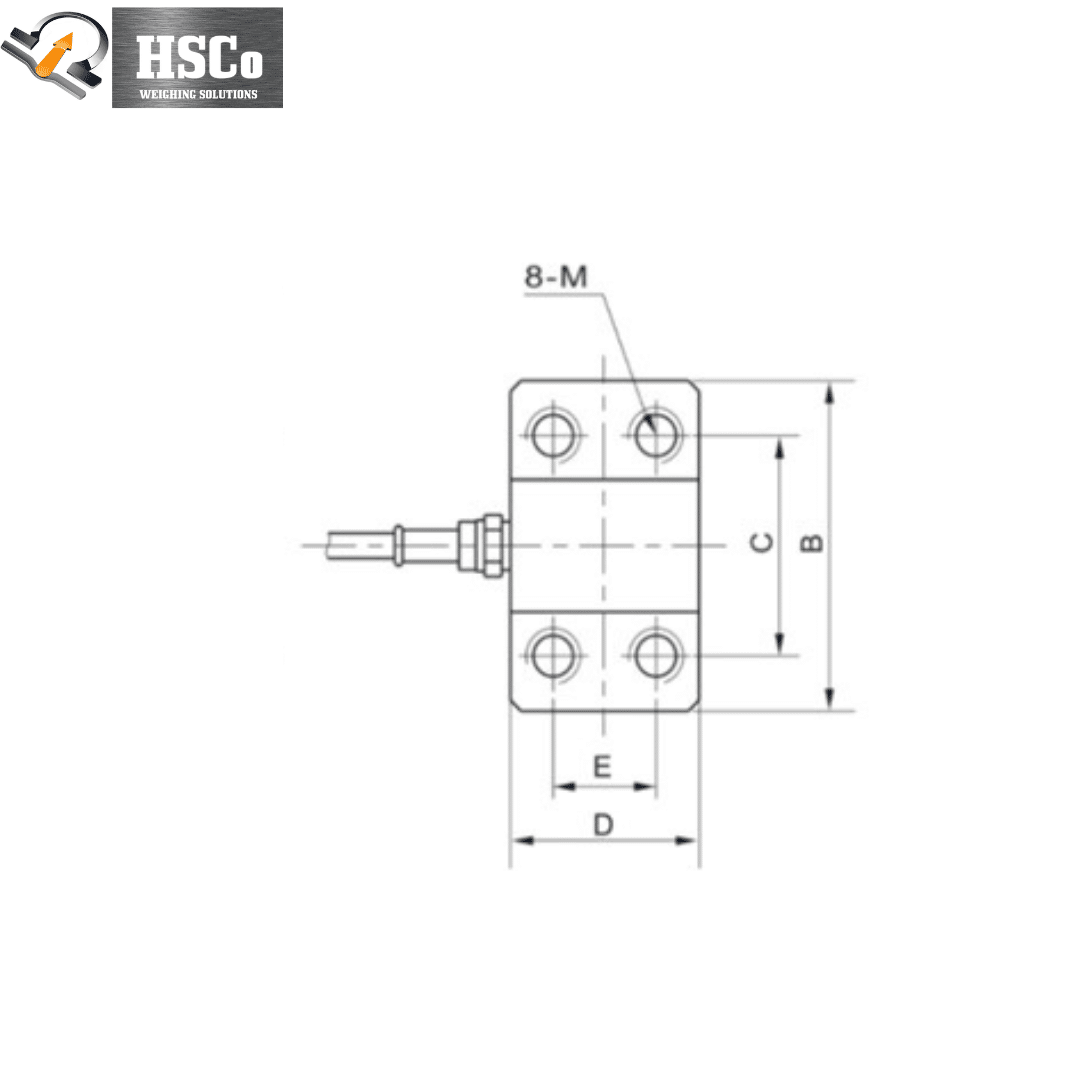

| Mounting | 8 threaded holes, 20 mm deep (from the drawing) |
| Cable | 6 m, Ø5 mm; Exc+ red, Exc− black, Sig+ green, Sig− white |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For aluminium single-point cells, see the LCP-6 (50 – 2,000 kg), the LCP-5 (30 – 500 kg) or the LCP-4 (30 – 500 kg). Browse all load cells.
Where it is used
Jumbo platform scales and other large platform scales built on one load cell.
Questions buyers ask
250, 300, 500, 750, 800 and 1,000 kg.
No, this model is alloy steel, with a moisture-proof seal to IP65.
Excitation + red, excitation − black, signal + green, signal − white.
