CUTSIZE PLATFORM SCALE LOAD CELL

AS PER REQUEST, PLEASE CALL US HERE

STANDARD CAPACITY (Kg.) : 100, 200, 300, 500

STANDARD SPECIFICATION

Nominal Output 2.0mV / V
Excitation Voltage 10 VDC – Maximum 15 VDC
Platter Size 600mm x 600mm

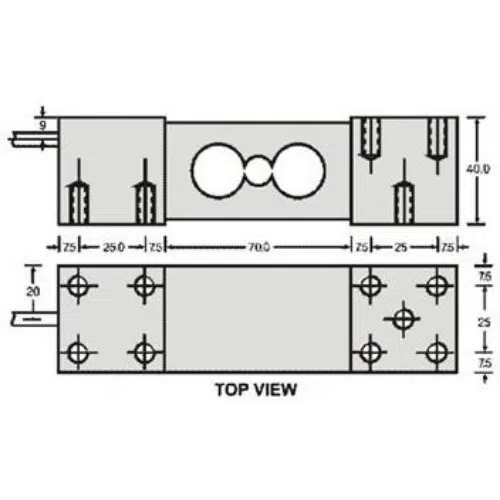

Bolt Distance for fitting 25mm x 25mm
Safe Load 150% of Rated Capacity
Ultimate Load 200% of Rated Capacity
Non Linearity <±0.025% of FSO (Full Scale Output)
Creep (30 minutes) <±0.025% of FSO
Zero Balance <±1% of FSO
Input Resistance 396 ± 10 ohms
Output Resistance 350 ± 5 ohms
Temperature Range 0oC to +60oC
Material Electroless Nickel Plated Tool Steel

This Load Cell is a Straingage based Single point parallel beam, low profile Platform steel loadcell. They are economical and have good performance characteristics suitable for small platform scales. They are made from high tool steel alloy with Electroless nickel platting for protecting loadcells from jerk loads & corrosion .Its high tool steel construction make loadcell very rugged to absorb shock loads.

FEATURES

Compact, Lightweight and Economical
High Tool steel Construction makes it very rugged for shock loads and is suitable in harsh application
Supports the platform size up to 600X600(mm)
Available from 100 kg. to 500 kg. capacities
Single Point Capability for Platform Scale
Minimum error for Off-Centre loading
Low profile
