Single Point Load Cell HSC-LCP-3 – Aluminium, IP65, for Platform Scales
Price on Request
Aluminium single-point load cell HSC-LCP-3 for platform scales: factory-trimmed so one cell carries the whole platform, IP65, OIML R60, 3 m cable, standard 4-wire colour code. Capacity on request. 1-year warranty.

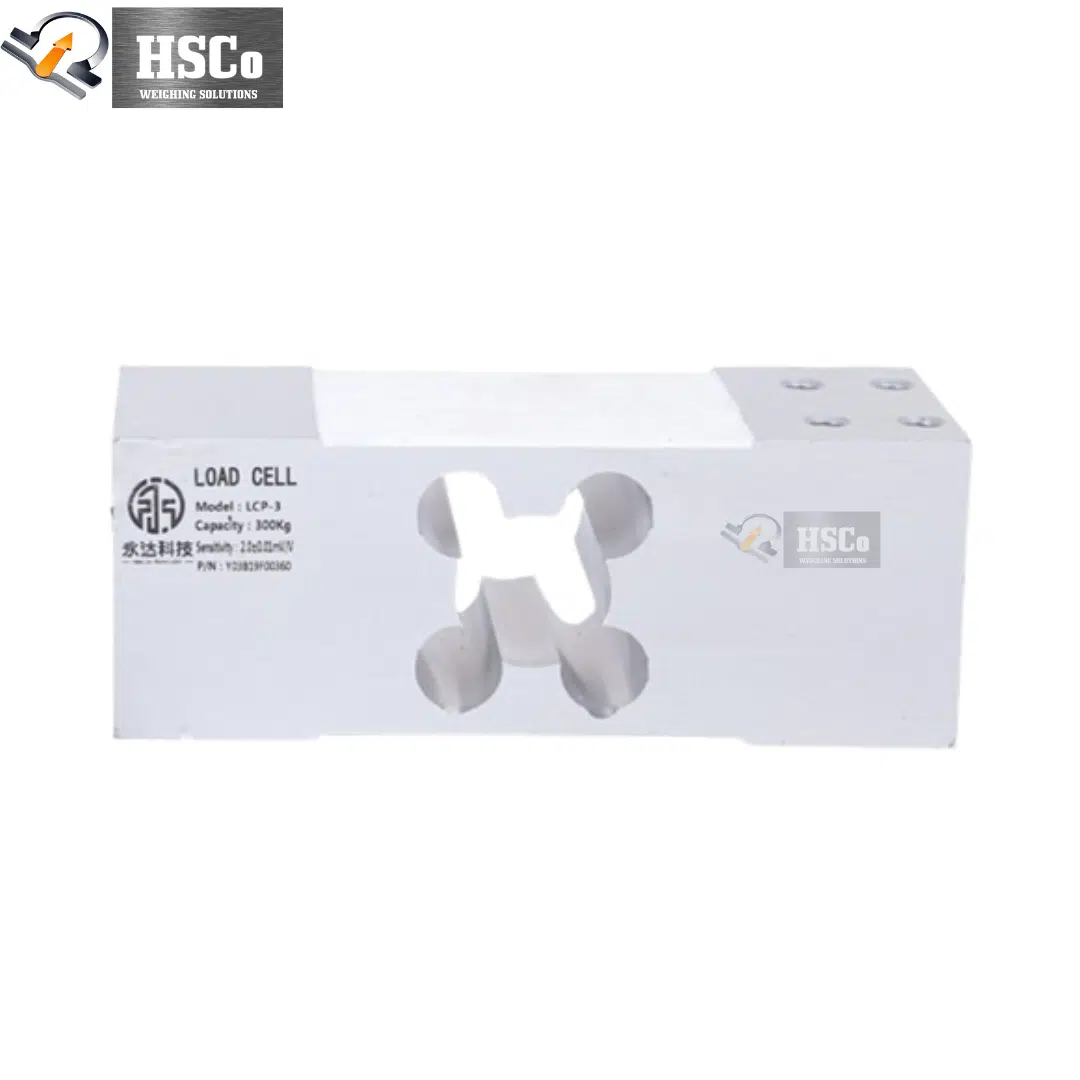

The HSCo HSC-LCP-3 is an aluminium single-point load cell for platform scales. It is trimmed at the factory so the output stays the same wherever the load sits on the platform, which lets one cell carry a whole scale. It is simple to fit, sealed to IP65 and made to OIML R60. Tell us your platform size and load, and we will confirm the capacity.
Why scale makers choose it
- One cell per scale: corner-trimmed single-point design.
- Aluminium body, sealed to IP65.
- Made to OIML R60.
- Simple to fit and wire.
Specifications
| Model | HSC-LCP-3 |
|---|---|
| Type | Single-point load cell, aluminium |
| Protection | IP65 |
| Input impedance | 402 ± 6 Ω |
| Output impedance | 350 ± 3 Ω |
| Temperature effect on span | ±0.02% FS / 10 °C |
| Insulation | ≥ 5000 MΩ at 100 V DC |
| Cable | 3 m, Φ5 mm |
| Standard | OIML R60 |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white |
| Capacity | On request – tell us your platform and load |
| Warranty | 1 year |
Which load cell?
For 60 to 500 kg with the size stated, see the HSC-LCP 2; for 30 to 500 kg, the HSC-LCP-4; for large platforms, the HSC-LCP 5. Browse all load cells.
Where it is used
Bench and platform scales, retail and counting scales, and machines that weigh on a single cell.
Questions buyers ask
A cell trimmed so one unit can carry a whole platform and read the same wherever the load sits.
Tell us the platform size and the heaviest load; we will confirm the right capacity.
Excitation + red, excitation − black, signal + green, signal − white.
Order or ask for a quotation
Tell us what you need it for and we will suggest the right model and size. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 1000 kg, 500 kg |
|---|
