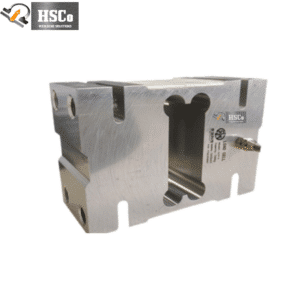

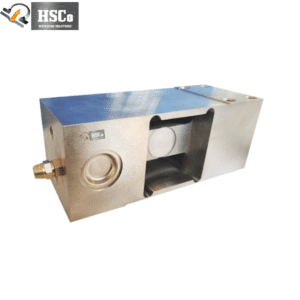

This HSCo single-point load cell is a low-profile parallel-beam load cell for large platform scales, from 500 kg to 3,000 kg capacity. One cell carries a platform up to 1,000 × 1,000 mm with minimal error from off-centre loads, so a big platform scale can be built without four cells and a junction box. It is made of electroless nickel-plated tool steel to take shock loads and resist corrosion.
Why builders choose it
- One cell for a big platform. Single-point design supports platforms up to 1,000 × 1,000 mm.
- Corner-load accuracy. Minimal error when the load is off centre.
- Rugged. Hardened tool steel absorbs shock and jerk loads in harsh use.
- Corrosion protection. Electroless nickel plating.
- Low profile for compact, low platform scales.
Specifications
| Type | Single-point parallel beam, low profile |
|---|---|
| Capacities | 500, 1,000, 1,500, 2,000, 2,500, 3,000 kg |
| Max. platform | 1,000 × 1,000 mm |
| Rated output | 2.0 mV/V |
| Excitation | 10 V DC (maximum 15 V DC) |
| Non-linearity | < ±0.025% of full-scale output |
| Creep (30 min) | < ±0.025% of full-scale output |
| Zero balance | < ±1% of full-scale output |
| Input / output resistance | 396 ± 10 Ω / 350 ± 5 Ω |
| Safe / ultimate load | 150% / 200% of rated capacity |
| Temperature range | 0 to +60 °C |

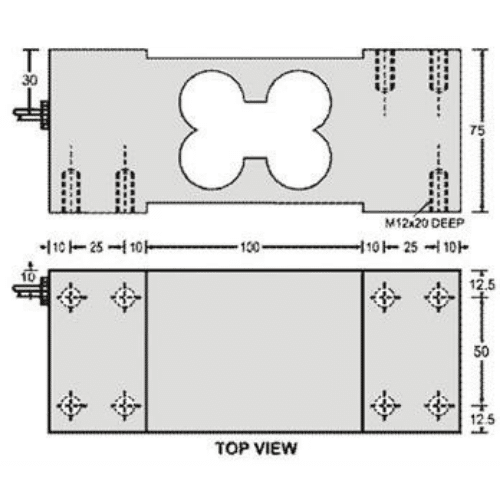

| Mounting | Bolt spacing 50 × 25 mm; M12 × 20 deep threads |
| Material | Electroless nickel-plated tool steel |
| Warranty | 1 year |
Where it is used
Large platform scales, steel weighers, construction machinery and industrial weighing systems. For multi-cell systems, see our junction boxes, or browse all load cells.
Questions buyers ask
What is a single-point load cell?
A load cell that measures accurately wherever the load sits on the platform, so one cell can support the whole platform.
What is the largest platform it supports?
1,000 × 1,000 mm.
Which capacities are available?
500 kg to 3,000 kg in 500 kg steps.
What is it made of?
Tool steel with electroless nickel plating.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity, platform size and quantity. Hindustan Scale Company, Mumbai, since 1955.
