Single Point Load Cell HSC LCP-5 – 30 to 500 kg, Aluminium, IP65, for Platform Scales
Price on Request
Single-point (box type) aluminium load cell HSC LCP-5: 30 to 500 kg, corner-adjusted at the factory, 2.0 mV/V, ±0.03% FS, IP65, 2 m cable, OIML R60. For single-sensor platform scales. 1-year warranty.

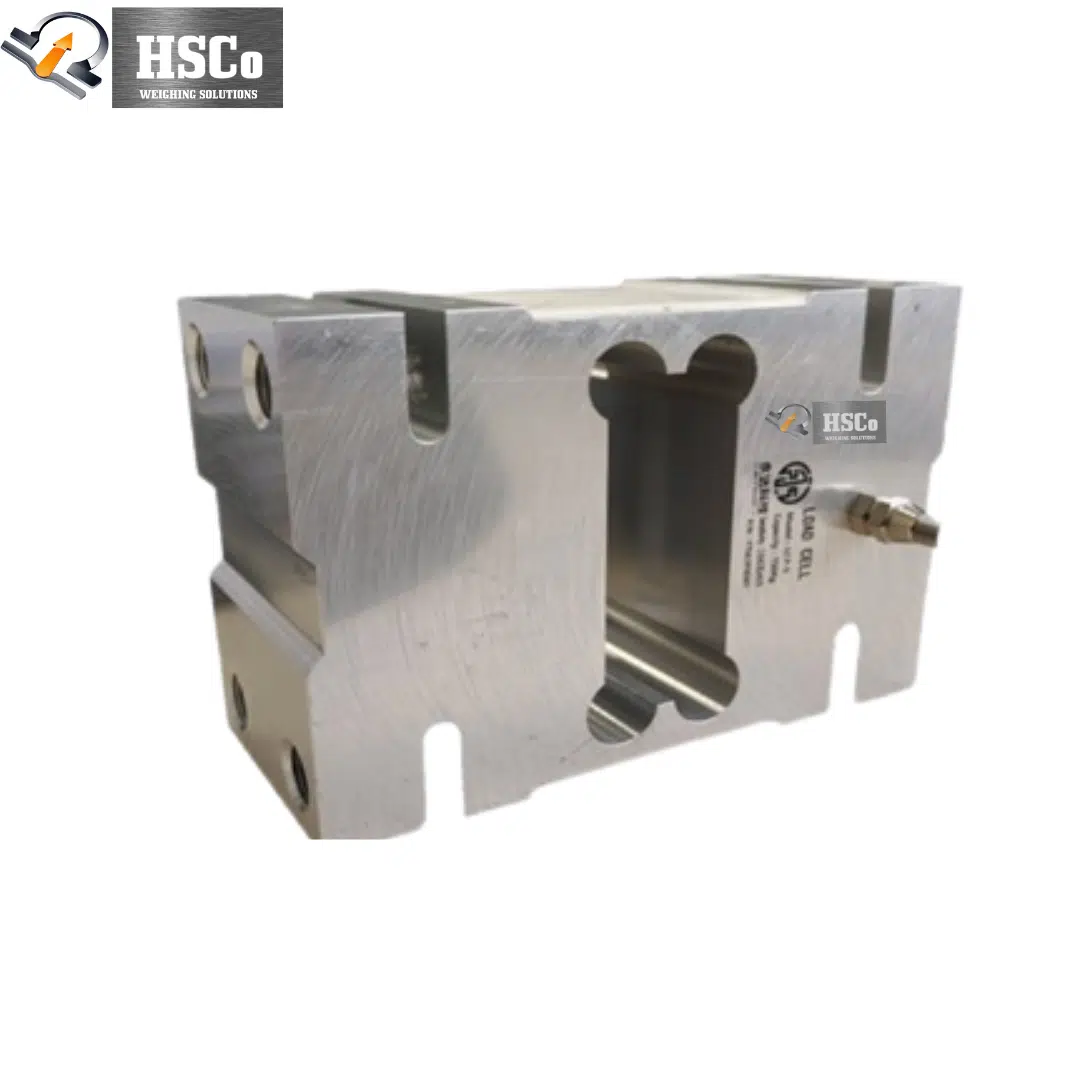

The HSC LCP-5 is a single-point (box type) aluminium load cell for electronic platform scales built on one sensor. It is corner-adjusted at the factory, so it reads the same wherever the load sits on the platform, and comes in capacities from 30 to 500 kg with IP65 protection. It is made to the OIML R60 standard.
Why scale makers choose it
- One sensor, one platform: a single LCP-5 carries the whole platform.
- Corner-adjusted at the factory for the same reading anywhere on the platter.
- 30 to 500 kg capacities.
- Aluminium body, IP65, with a moisture-proof silicone seal.
- Simple to fit: four-wire cable with standard colour code.
Specifications
| Model | HSC LCP-5 |
|---|---|
| Type | Single point, corner adjusted |
| Capacities | 30 – 500 kg |
| Sensitivity | 2.0 ± 0.02 mV/V |
| Total error | ±0.03% FS |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C; span ±0.02% FS / 10 °C |
| Safe / limit overload | 120% / 150% FS |
| Excitation | 9 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 405 ± 6 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ (100 V DC) |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Protection | IP65 |
| Material | Aluminium |
| Cable | 2 m, Ø5 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For larger platforms, up to 2,000 kg, see the HSC LCP-6 or the jumbo platform scale load cell; for table-top and mini platform scales, the mini platform load cell. Browse all load cells.
Where it is used
Platform scales, bench and counter scales, packing and checkweighing stations, and any single-sensor weighing platform up to 500 kg.
Questions buyers ask
From 30 kg to 500 kg.
Each cell is corner-adjusted at the factory, so off-centre loads give the same output.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
It is rated IP65 and sealed with a moisture-proof silicone layer.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
