Regular Platform Scale Load Cell – 200 to 1,500 kg, Single Point, Platforms up to 750 × 750 mm
Price on Request
Single-point parallel-beam load cell for platform scales: 200, 300, 500, 750, 1,000 or 1,500 kg, platforms up to 750 × 750 mm, nickel-plated tool steel (stainless steel available), 2.0 mV/V, non-linearity under ±0.025% FSO, safe 150% / ultimate 200%. 1-year warranty.
The HSCo regular platform scale load cell is a single-point, parallel-beam, low-profile load cell for platform scales up to 750 × 750 mm, in 200 to 1,500 kg capacities. It is made of high tool-steel alloy with electroless nickel plating against shock loads and corrosion, and keeps off-centre loading error to a minimum. A stainless-steel version is available for hygienic uses such as food, dairy and pharma.
Why scale makers choose it
- 200 to 1,500 kg on a single cell.
- Platforms up to 750 × 750 mm.
- Tool steel, nickel plated: rugged against shock loads.
- Low off-centre error and low profile.
- Stainless-steel version for food, dairy and pharma.
Specifications
| Type | Single point, parallel beam, low profile |
|---|---|
| Capacities | 200, 300, 500, 750, 1,000, 1,500 kg |
| Platform size | Up to 750 × 750 mm |
| Nominal output | 2.0 mV/V |
| Non-linearity | < ±0.025% FSO |
| Creep (30 min) | < ±0.025% FSO |
| Zero balance | < ±1% FSO |
| Excitation | 10 V DC (maximum 15 V DC) |
| Input / output resistance | 396 ± 10 Ω / 350 ± 5 Ω |
| Safe / ultimate load | 150% / 200% of rated capacity |
| Temperature range | 0 to +60 °C |
| Material | Tool steel, electroless nickel plated (stainless steel available) |

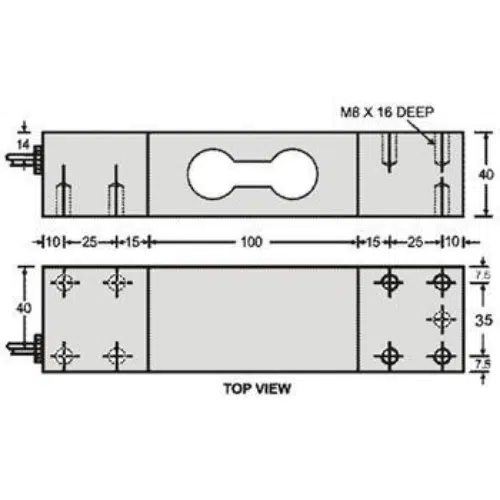

| Mounting | Bolt distance 35 × 25 mm; M8 threads, 16 mm deep (drawing) |
| Warranty | 1 year |
Which load cell?
For smaller platforms up to 600 × 600 mm (100 – 500 kg), see the cutsize platform scale load cell; for jumbo platforms, the jumbo platform scale load cell. Browse all load cells.
Where it is used
Medium-size platform scales, electronic scales, baggage weighing, hopper weighing and industrial weighing systems.
Questions buyers ask
Which capacities are available?
200, 300, 500, 750, 1,000 and 1,500 kg.
How big a platform can it carry?
Up to 750 × 750 mm, on a single cell.
Is there a stainless-steel version?
Yes, for hygienic uses such as food, dairy and pharmaceuticals.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
