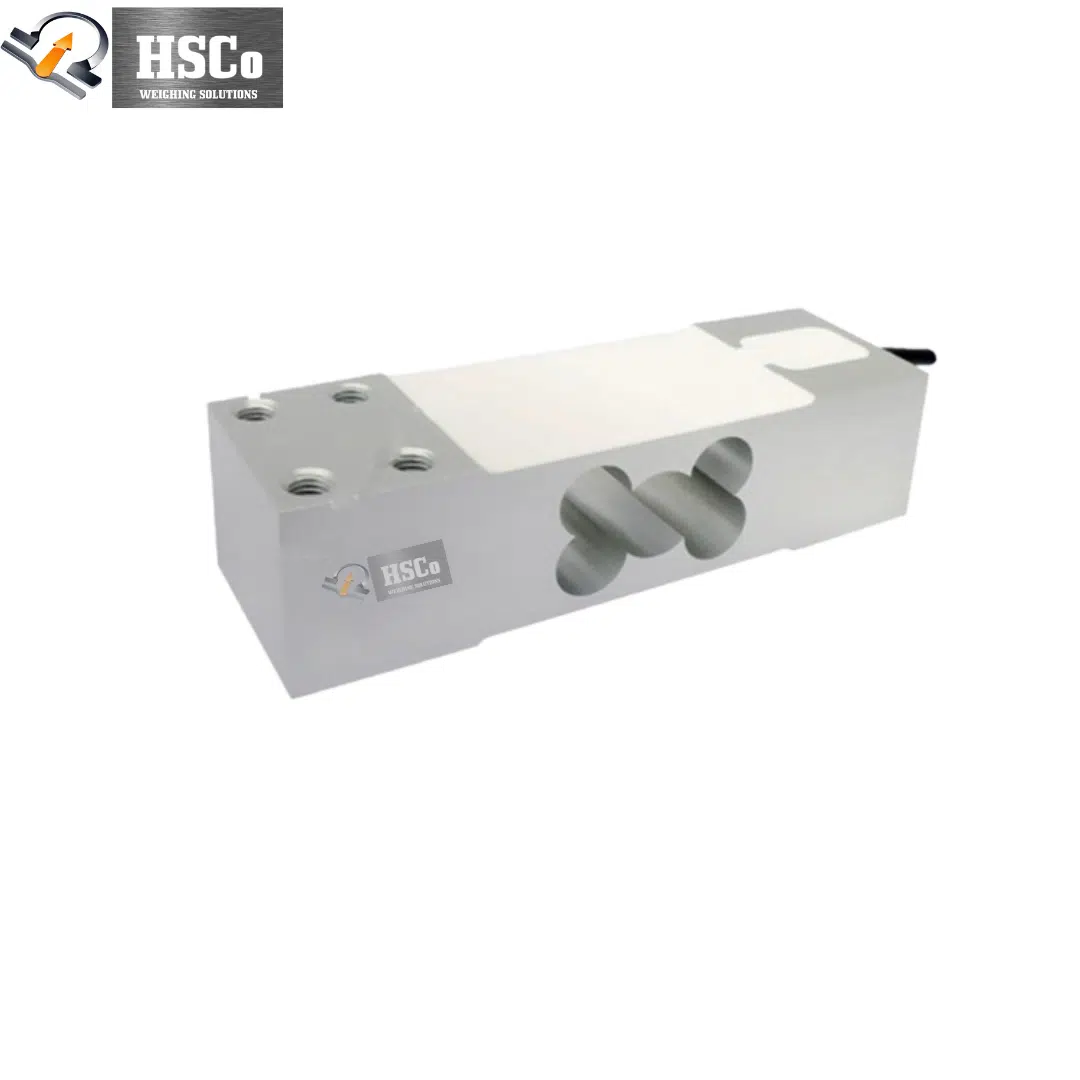

The HSC-LCP-4 is an aluminium single-point load cell for platform scales from 30 kg to 500 kg. It is trimmed at the factory so the reading stays the same wherever the load sits on the platform, which means one cell can carry a whole scale. It is sealed to IP65 and built to OIML R60.
Why builders choose it
- One cell per scale. Corner-trimmed single-point design, so a platform needs only this cell.
- 30 – 500 kg rated capacities.
- Accurate. ±0.03% FS total error; OIML R60.
- Light and simple to fit. Aluminium body, 8 × M6 mounting threads.
- Standard 350 Ω output with colour-coded 2 m cable.
Specifications
| Type | Single-point (platform) load cell |
|---|---|
| Rated capacities | 30 – 500 kg |
| Sensitivity | 2.0 ± 0.02 mV/V |
| Total error | ±0.03% FS |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C; span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 120% FS; limit 150% FS |
| Excitation | 9 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 405 ± 6 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP65 |
| Material | Aluminium |
| Size | 150 × 40 × 35 mm; 8 × M6 threads, 20 mm deep |
| Maximum platform | 400 × 400 mm |
| Cable | 2 m, Ø5 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Where it is used
Electronic platform and bench scales built on a single sensor. For large platforms up to 3,000 kg, see the jumbo platform scale load cell; for an economical 100–500 kg option, the platform green label load cell. Browse all load cells.
Questions buyers ask
A cell trimmed so that the reading does not change when the load moves around the platform. One cell is enough for the whole scale.
From 30 kg to 500 kg.
Through M6 threaded holes at each end: one end to the base, the other to the platform.
Red Exc+, black Exc−, green Sig+, white Sig−, yellow shield.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity, platform size and quantity. Hindustan Scale Company, Mumbai, since 1955.
