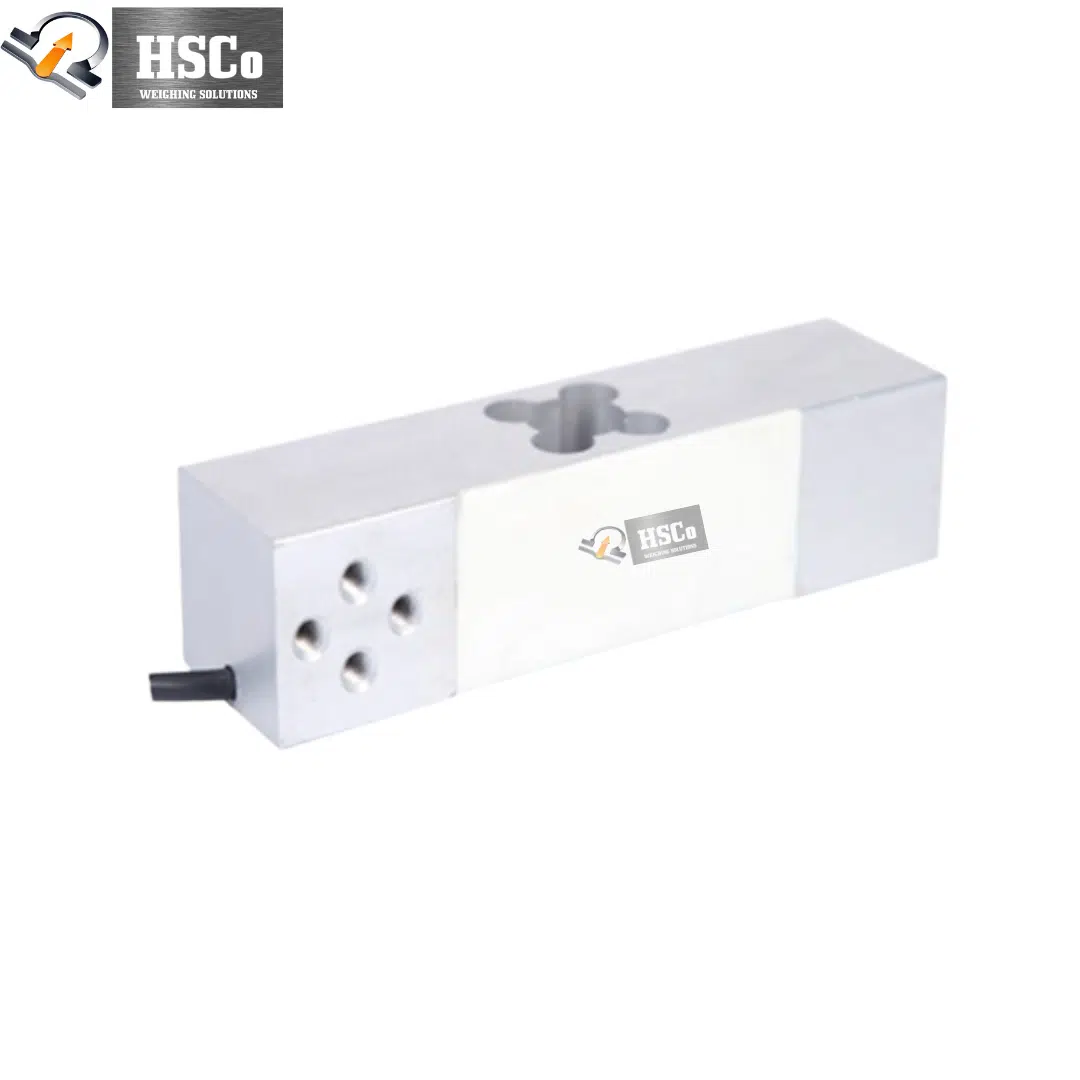

Single Point Load Cell HSC-LCP 2 – 60 to 500 kg, Aluminium, for Platform Scales
Price on Request
Aluminium single-point load cell HSC-LCP 2 for one-cell platform scales: 60, 100, 150, 250, 300 or 500 kg, corner adjusted, 2.0 mV/V, safe overload 150%, 150 × 40 × 35 mm with 8 × M6 holes. 1-year warranty.
The HSCo HSC-LCP 2 is an aluminium single-point load cell for platform scales from 60 to 500 kg. Its four corners are adjusted so it gives the same reading wherever the load sits on the platform, which lets one cell carry a whole scale. It is simple to fit: a 150 × 40 × 35 mm block with eight M6 threaded holes. It takes 150% of its rating safely and is compensated for temperatures from −10 to +40 °C.
Why scale makers choose it
- One cell per scale: corner-adjusted for the same reading anywhere on the platform.
- Six capacities, 60 to 500 kg.
- Overload margin: safe 150%, limit 180% of full scale.
- Simple to mount: eight M6 threaded holes.
- Stable: creep 0.02% FS over 30 minutes.
Specifications
| Model | HSC-LCP 2 |
|---|---|
| Type | Single-point load cell, aluminium, corner adjusted |
| Capacities | 60, 100, 150, 250, 300, 500 kg |
| Sensitivity | 2.0 ± 0.1 mV/V |
| Creep | 0.02% FS (30 min) |
| Zero balance | ±1% FS |
| Temperature effect on zero | ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |

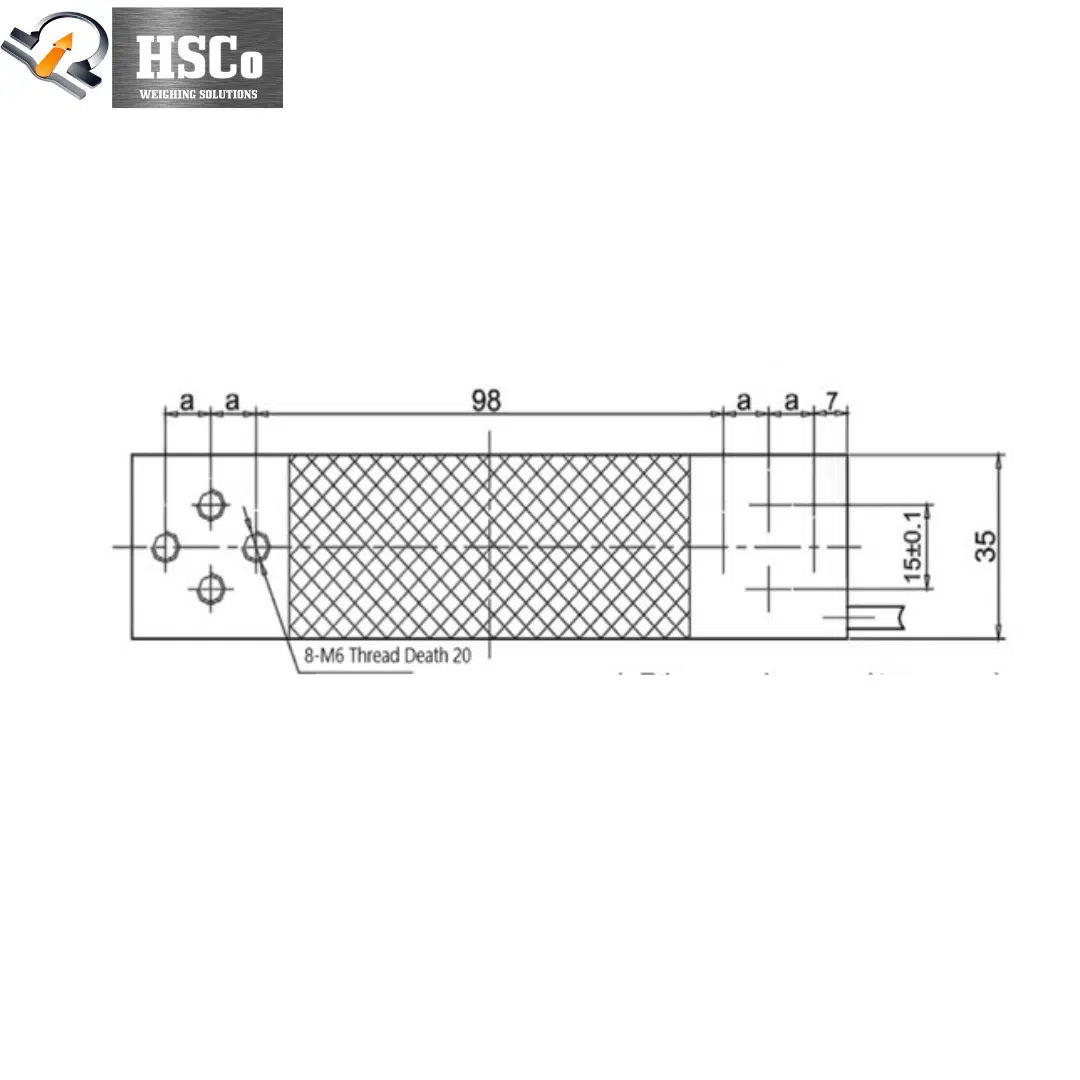

| Size | 150 × 40 × 35 mm; 8 × M6 threaded holes, 20 mm deep |
| Wiring | Exc + red, Exc − black, Sig + green, Sig − white, shield yellow |
| Warranty | 1 year |
Which platform load cell?
For 30 to 500 kg with IP65 sealing, see the HSC-LCP-4; for up to 2,000 kg, the HSC LCP-6; for 500 to 1,000 kg, the platform scale load cell; for table-top scales up to 80 kg, the table top load cell. Browse all load cells.
Where it is used
Electronic platform scales built on a single load cell.
Questions buyers ask
Yes. It is a single-point cell adjusted at its four corners, so the reading is the same wherever the load sits.
60, 100, 150, 250, 300 and 500 kg.
Red and black are the excitation (+ and −), green and white the signal (+ and −), and yellow the shield.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity and quantity you need. Hindustan Scale Company, Mumbai, since 1955.
