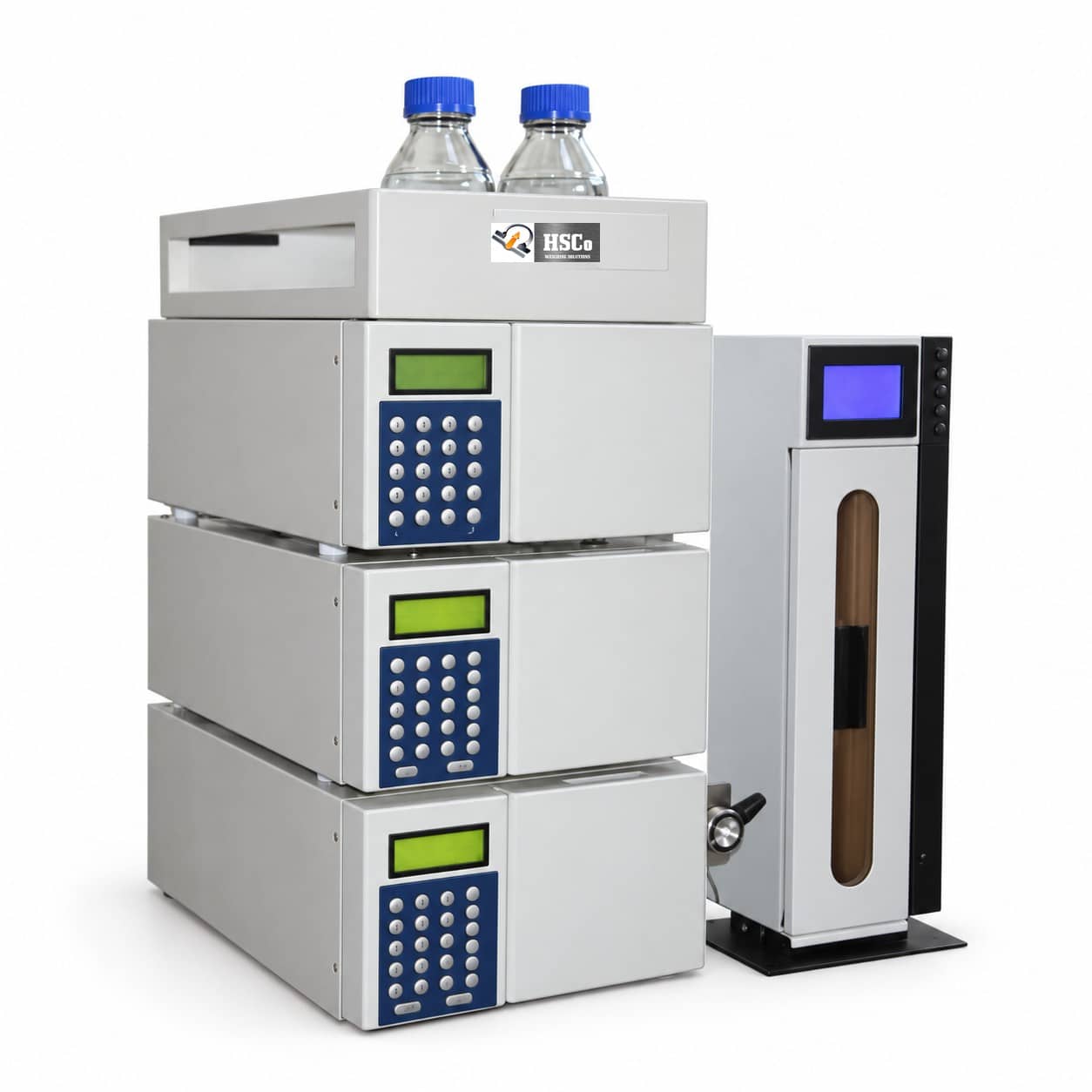

The HSCo HPLC system (high-performance liquid chromatography) separates, identifies and measures the compounds in a liquid sample. A high-pressure dual-piston pump delivers 0.001 to 10 mL/min at up to 6,000 psi, with up to 4-channel gradient mixing and a built-in vacuum degasser. Samples go in by manual injector or autosampler, a column oven holds the column from ambient + 5 °C to 80 °C, and the detector can be UV-Vis, photodiode array, refractive index, fluorescence or conductivity. Windows software records the chromatogram live and does integration, calibration curves and reports.
Why labs choose it
- Precise flow: 0.001 – 10 mL/min, ±1% accuracy, ±0.2% precision.
- High pressure: up to 6,000 psi (40 MPa).
- Isocratic or gradient, up to 4 solvent channels.
- Choice of detectors: UV-Vis, PDA, RI, fluorescence or conductivity.
- Reproducible: retention time ±0.1%, peak area ≤ 1% RSD.
- Safe: over-pressure protection, leak sensor, solvent level alarm, automatic shutdown.
Specifications
| Model | HSC-HPLC |
|---|---|
| System | Modular or integrated; isocratic and gradient |
| Pump | High-pressure dual-piston reciprocating; 0.001 – 10.0 mL/min in 0.001 mL/min steps; 0 – 6,000 psi (0 – 40 MPa) |
| Flow accuracy / precision | ±1% / ±0.2% |
| Injection | Manual or auto-injector, typically 1 – 100 µL; autosampler optional |
| Column oven | Ambient + 5 °C to 80 °C, ±0.1 °C, programmable |
| Detectors | UV-Vis (190 – 700 nm); PDA (190 – 800 nm); RI, fluorescence or conductivity (optional) |
| Degasser | Built-in vacuum degasser, 2 – 4 channels |
| Columns | Stainless steel or PEEK, 50 – 300 mm long, 2.1 – 4.6 mm ID; quick-connect fittings |
| Solvents | Up to 4-channel gradient mixing; aqueous and organic |
| Software | Windows chromatography software: live chromatogram, peak identification, area / height quantification, calibration curves, reports |
| Display | Touchscreen or digital LCD: flow, pressure, wavelength, gradient, run time |
| Reproducibility | Retention time ±0.1%; peak area ≤ 1% RSD |
| Safety | Over-pressure protection, leak sensor, solvent level alarm, automatic shutdown |
| Power | 220 V ±10%, 50/60 Hz, single phase |
| Options | Autosampler, column heater / chiller, fraction collector, online degasser |
| Warranty | 1 year |
Related
For light-based analysis, see the Econ-1 spectrophotometer or the double-beam spectrophotometer. Browse all misc laboratory equipment.
Where it is used
Pharmaceutical, food, chemical, environmental and academic laboratories: separating, identifying and quantifying compounds.
Questions buyers ask
UV-Vis (190 – 700 nm) and photodiode array (190 – 800 nm) detectors are offered, with refractive index, fluorescence and conductivity detectors as options. Tell us your samples.
Yes, with up to 4 solvent channels, as well as isocratic runs.
Yes, with the optional autosampler.
Order or ask for a quotation
Tell us your samples, detector and injection needs. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
