Gas Chromatograph and GC-MS System HSC-GCMC
Price on Request
GC or integrated GC-MS: FID, TCD, ECD (FPD or NPD optional), oven ambient +5 °C to 450 °C with 20 ramps, split/splitless injector with EPC, MS 1–1,200 amu with EI source and turbo pump, Windows software with library search. Autosampler and headspace options. 1-year warranty.

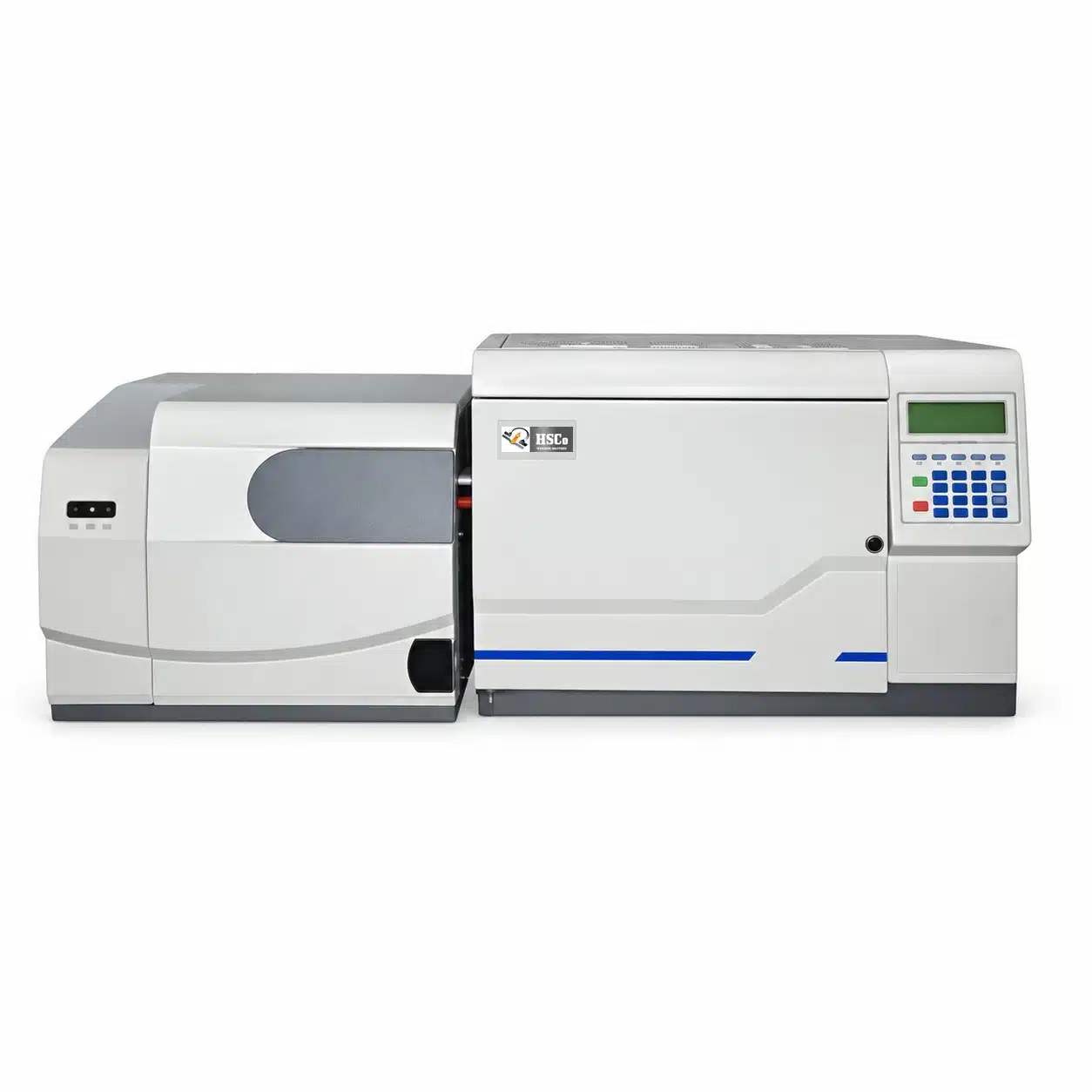

The HSC-GCMC is a gas chromatograph that can be supplied on its own (GC) or with a mass spectrometer (GC-MS). It separates, identifies and measures volatile and semi-volatile organic compounds. The GC offers FID, TCD and ECD detectors, with FPD or NPD as options. The column oven runs from 5 °C above ambient to 450 °C with up to 20 ramps. Electronic pneumatic control handles helium, nitrogen or hydrogen carrier gas. The mass spectrometer covers 1 – 1,200 amu with an electron impact source and turbomolecular vacuum. It serves environmental, food, pharmaceutical, petrochemical and forensic labs.
Why labs choose it
- GC or GC-MS. Start with a standalone GC or take the integrated GC-MS system.
- Choice of detectors. FID, TCD and ECD; FPD or NPD optional.
- Wide, fast oven. Ambient +5 °C to 450 °C, up to 100 °C/min, ±0.1 °C stability, 20 ramps and 21 plateaus.
- Sensitive MS. Under 1 pg octafluoronaphthalene at S/N ≥ 10:1; scans up to 12,500 u/s.
- Complete software. Windows data system with peak identification, library search and quantitation.
- Grows with you. Autosampler, headspace, purge-and-trap and thermal desorber options.
Specifications
| System | Standalone GC or integrated GC-MS |
|---|---|
| GC detectors | FID, TCD, ECD; FPD or NPD optional |
| Column oven | Ambient +5 °C to 450 °C; up to 20 ramps and 21 plateaus; heating up to 100 °C/min; stability ±0.1 °C |
| Injector | Split/splitless, programmable up to 400 °C; on-column, PTV or gas sampling valve optional |
| Carrier gas | Electronic pneumatic control (EPC) of flow and pressure; helium, nitrogen or hydrogen |
| Column flow | 0.1 – 20 ml/min, depending on column and mode |
| Columns | Capillary, packed or micro-bore; leak-free connection system |
| MS ion source | Electron impact (EI); chemical ionisation (CI) optional |
| Mass range / accuracy | 1 – 1,200 amu / ≤ ±0.1 amu |
| MS detector | Electron multiplier |
| Scan speed | Up to 12,500 u/s |
| MS sensitivity | < 1 pg octafluoronaphthalene (OFN) at S/N ≥ 10:1 |
| GC-MS interface | Heated transfer line up to 320 °C |
| Vacuum | Turbomolecular pump with rotary backing pump |
| Software | Windows data acquisition and analysis; peak identification, library search (NIST, Wiley), quantitation; real-time chromatogram and spectra |
| Power | 220 V ±10%, 50/60 Hz, single phase |
| Operating conditions | 15 – 30 °C; up to 80% RH, non-condensing |
| Options | Autosampler, headspace sampler, purge-and-trap unit, thermal desorber |
| Warranty | 1 year |
Which chromatograph?
For a GC with detectors only, see the high-performance gas chromatograph HSC-HPGC. Browse all laboratory equipment.
Where it is used
Environmental analysis, food testing, pharmaceuticals, petrochemicals and forensic laboratories.
Questions buyers ask
A GC separates and measures compounds with a detector such as FID or TCD. GC-MS adds a mass spectrometer that also identifies each compound from its mass spectrum.
Helium, nitrogen or hydrogen, under electronic pneumatic control.
Yes, with the optional autosampler; headspace, purge-and-trap and thermal desorption are also available.
220 V ±10%, 50/60 Hz, single phase, in a room at 15 – 30 °C.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your samples, the detectors you need and whether you want GC or GC-MS. Hindustan Scale Company, Mumbai, since 1955.
