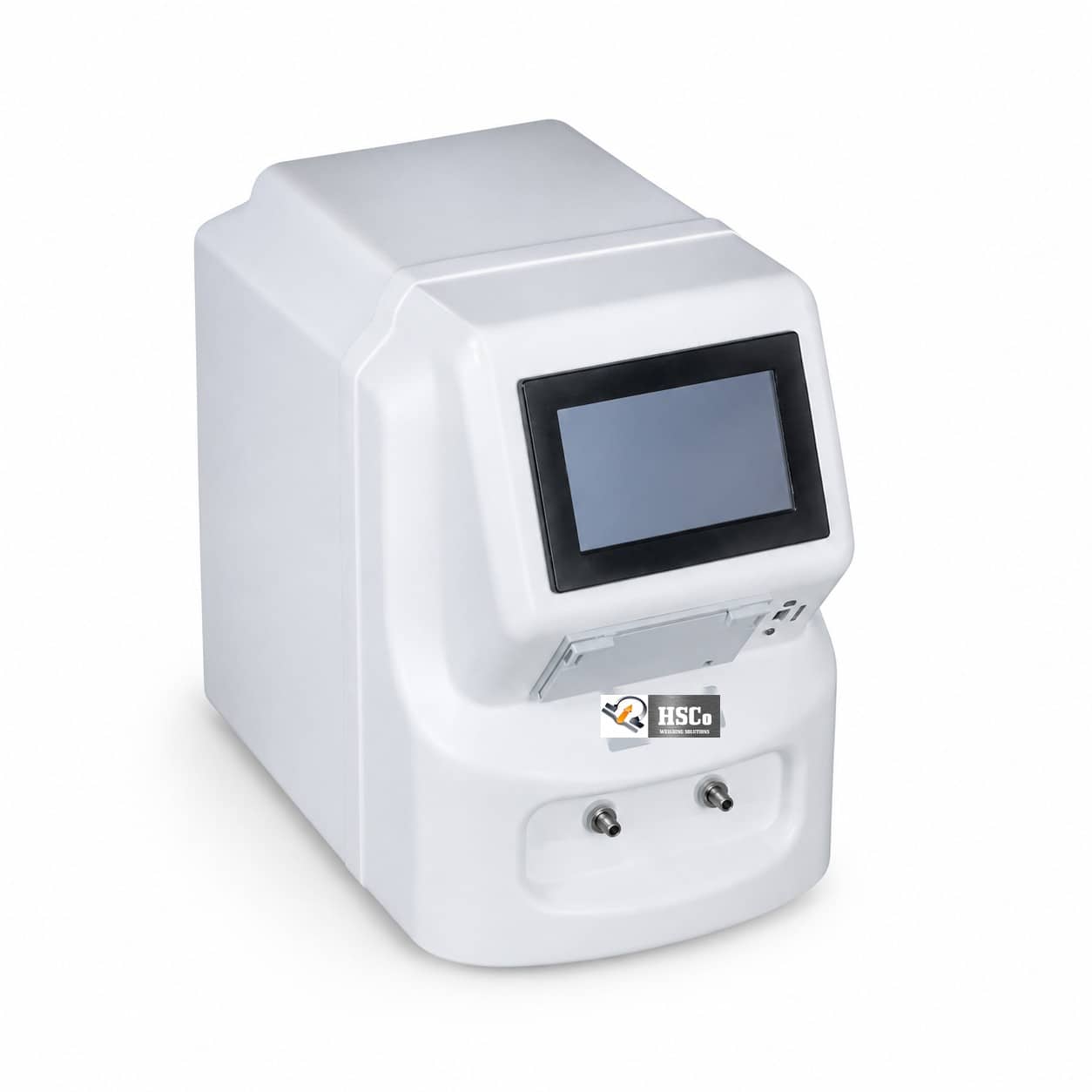

The HSCo HSC-TOCA TOC analyzer measures total organic carbon in water and aqueous samples, for pharmaceutical, environmental, wastewater and industrial labs. It oxidises the sample by high-temperature catalytic combustion (680 – 1,000 °C) or UV-persulfate and measures the carbon dioxide with a non-dispersive infrared (NDIR) detector, giving total carbon, inorganic carbon and TOC. It reads up to 20,000 mg/L, down to 5 µg/L on high-sensitivity models, with ±2% accuracy, automatic KHP calibration and self-diagnosis. Results show on a digital or touchscreen display and go to USB, RS-232 / RS-485 or a LIMS.
Why labs choose it
- TC, IC and TOC in one instrument.
- Two oxidation methods: high-temperature combustion or UV-persulfate for low-TOC samples.
- NDIR detection: sensitive and fast.
- Wide range: up to 20,000 mg/L; detection limit 5 µg/L or lower on high-sensitivity models.
- Automatic: multi-point KHP calibration, auto-zero, self-diagnosis; autosampler optional.
- Connects to PCs and LIMS by USB and RS-232 / RS-485.
Specifications
| Model | HSC-TOCA |
|---|---|
| Measures | Total carbon (TC), inorganic carbon (IC), total organic carbon (TOC) |
| Oxidation | High-temperature catalytic combustion, 680 – 1,000 °C (platinum or ceramic catalyst); or UV-persulfate |
| Detector | NDIR for CO₂ |
| Range | TOC 0 – 20,000 mg/L (by model) |
| Detection limit | ≤ 5 µg/L (high-sensitivity models) |
| Accuracy / repeatability | ±2% or better / ±1% FS |
| Samples | Drinking water, wastewater, process water, effluents; optional solid or gas module |
| Sample volume | 10 µL – 5 mL (by model) |
| Injection | Manual or automatic; autosampler 8 – 60 positions optional |
| Calibration | Automatic multi-point with KHP standards; auto-zero; self-diagnosis |
| Carrier gas | High-purity oxygen or air (99.995%), 150 – 200 mL/min |
| Display / interfaces | Digital or touchscreen; USB, RS-232 / RS-485; LIMS compatible |
| Power | 220 V ±10%, 50/60 Hz, single phase |
| Size / weight | Benchtop, typically 400 × 450 × 450 mm / 15 – 25 kg |
| Working conditions | 10 – 35 °C; up to 85% humidity, non-condensing |
| Options | Autosampler, external printer, solid sample module, reagent bottles |
| Warranty | 1 year |
Other water testing instruments
For BOD, see the BOD analyzer HSC-BOD-300; for COD, the COD digestion apparatus. Browse all misc laboratory equipment.
Where it is used
Pharmaceutical, environmental, wastewater and industrial laboratories: monitoring organic contamination in water.
Questions buyers ask
How much organic carbon, and so organic contamination, is in the water.
UV-persulfate oxidation is offered for low-TOC samples; the other option is high-temperature combustion at 680 – 1,000 °C. Tell us your samples.
Yes, with the optional 8 – 60 position autosampler.
Order or ask for a quotation
Tell us your samples and expected TOC range. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
