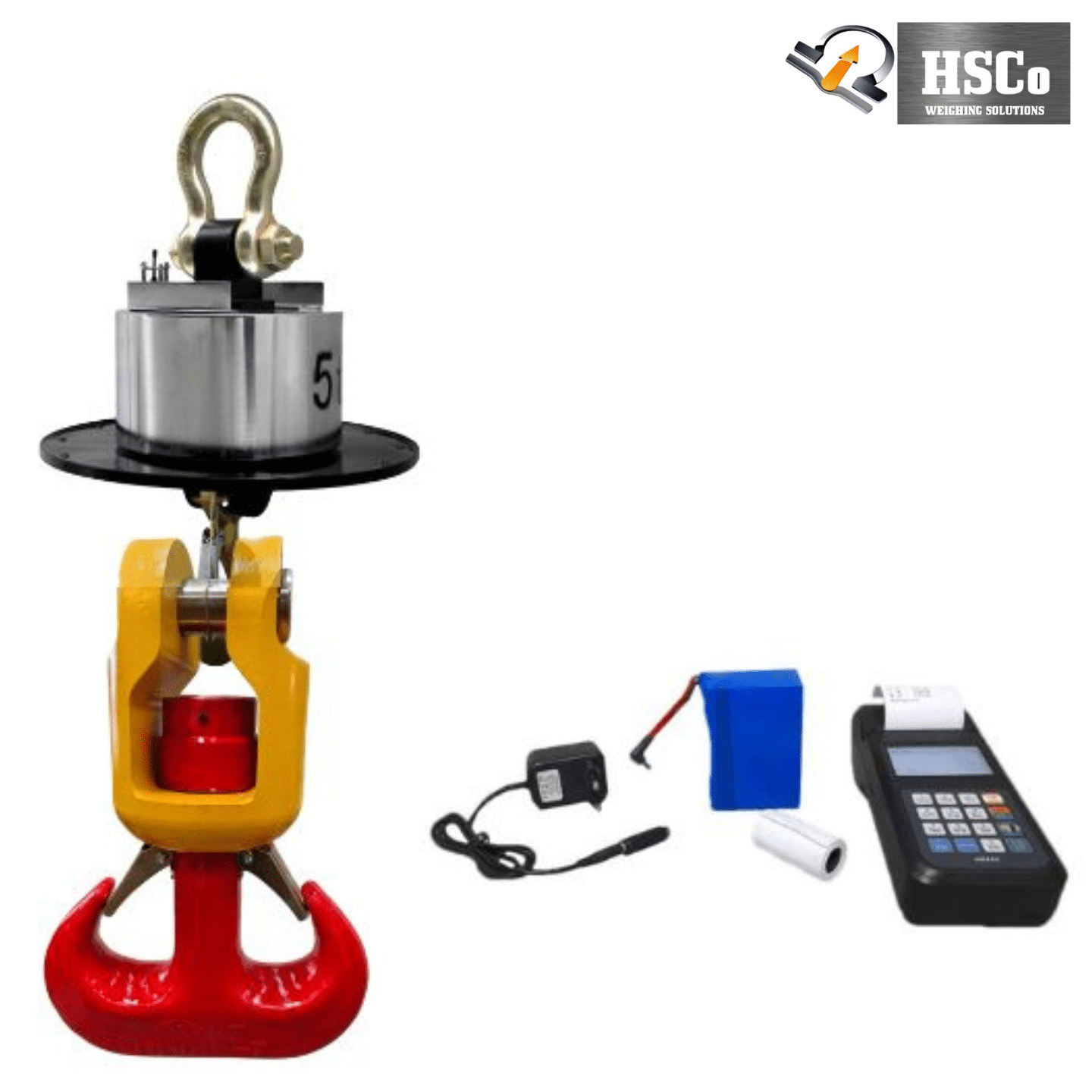

The HSCo CRHSSHDJH is the CRHSSH stainless-steel crane scale fitted with a double J hook, for weighing hot loads in steel plants, foundries and other hot industries. Its heavy-duty stainless body is rated for heat up to 1,600 °C and carries a superior metal die-cast load cell. The operator reads, stores and prints each weight on a handheld display with a built-in thermal printer, and a remote control handles tare and the other functions from a safe distance. It is made in 3, 5, 10, 20 and 50 tonnes and is stamped by the Legal Metrology department.
Why steel plants choose it
- Double J hook at the bottom, shackle at the top.
- Stainless-steel body, heat resistant up to 1,600 °C.
- Handheld display with built-in thermal printer: stores more than 4,999 records, customisable reports, download to a pen drive.
- Remote control for tare and other functions.
- Stable on moving loads: stability chip and high internal counts.
- Weatherproof: rust and water resistant, water-resistant PCB.
- Stamped by the Legal Metrology department.
Specifications
| Model | CRHSSHDJH (CRHSSH series with double J hook) |
|---|---|
| Capacities | 3,000, 5,000, 10,000, 20,000, 50,000 kg |
| Body | Heavy-duty stainless steel; heat resistant up to 1,600 °C |
| Load cell | Superior metal die-cast; rust and water resistant; 200% overload; life up to 10 years |
| Rigging | Shackle top, double J hook bottom |
| Handheld display | Built-in thermal printer (no ink), more than 4,999 records, customisable reports, download to pen drive, backlit LCD with several readouts, full functions |
| Remote | Jumbo remote for tare and other functions |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode; digital overload indication |
| Electronics | Stability chip for moving loads; high internal counts; water-resistant PCB; direct charging (the battery stays in) |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC, 1 A; rechargeable battery, fast charge (backup time depends on the model) |
| Options | Remote / Wi-Fi display |
| Certification | Legal Metrology stamped; ISO 9001:2015 certified company; Made in India |
| Warranty | 1 year |
Which crane scale?
With a standard hook, see the CRHSSH stainless-steel crane scale. With an external indicator (front and back displays) instead of the handheld, the CRHSSDJH. For a die-cast body with a double J hook, the CRHDJH crane scale. Browse all crane scales.
Where it is used
Steel, copper, aluminium, glass and chemical industries, thermal power plants, cranes, docks and heavy manufacturing.
Questions buyers ask
On the handheld display. It stores more than 4,999 records, prints slips on its built-in thermal printer and lets you download reports to a pen drive.
The stainless-steel body is rated for heat up to 1,600 °C.
3, 5, 10, 20 and 50 tonnes.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity you need. Hindustan Scale Company, Mumbai, since 1955.
