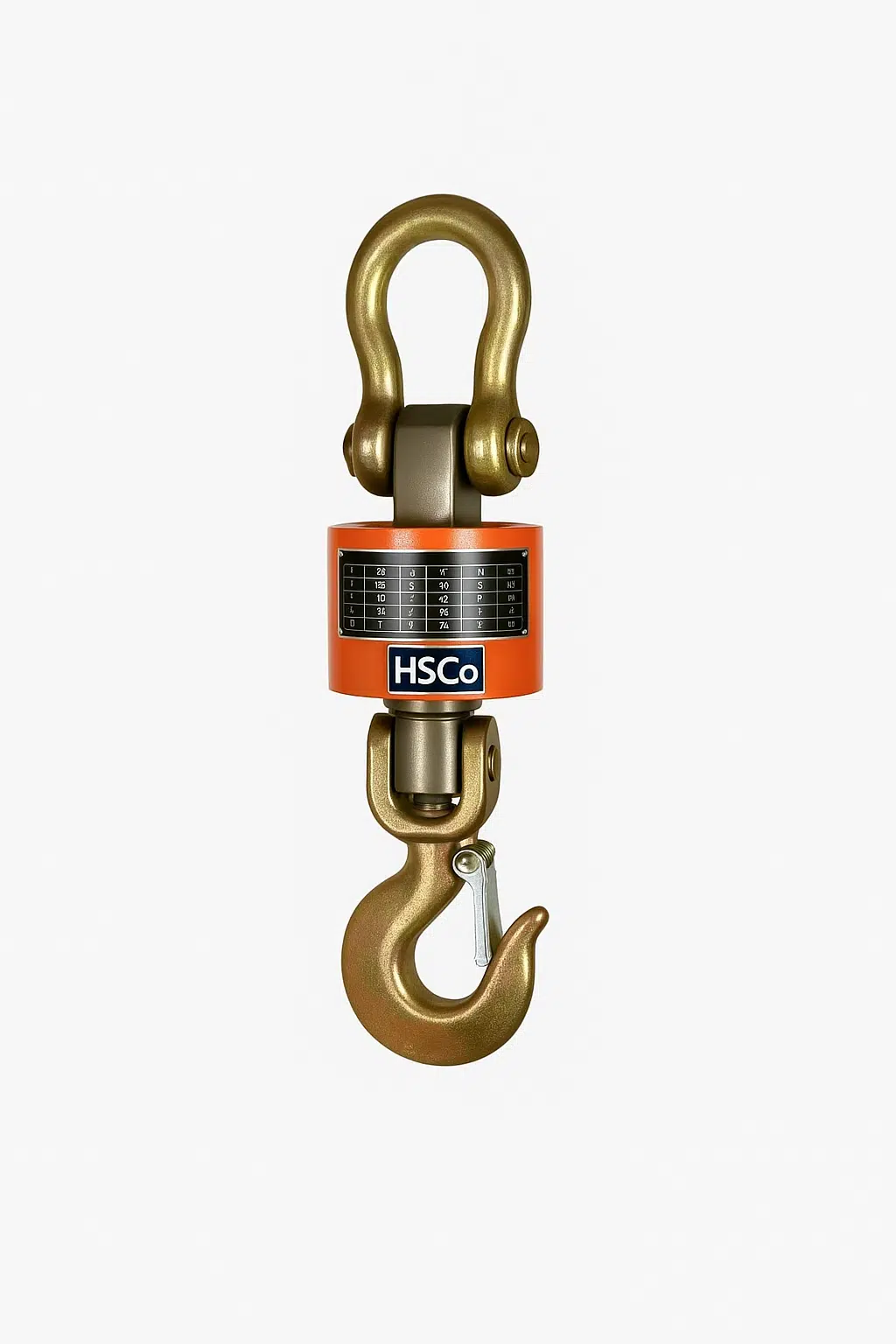

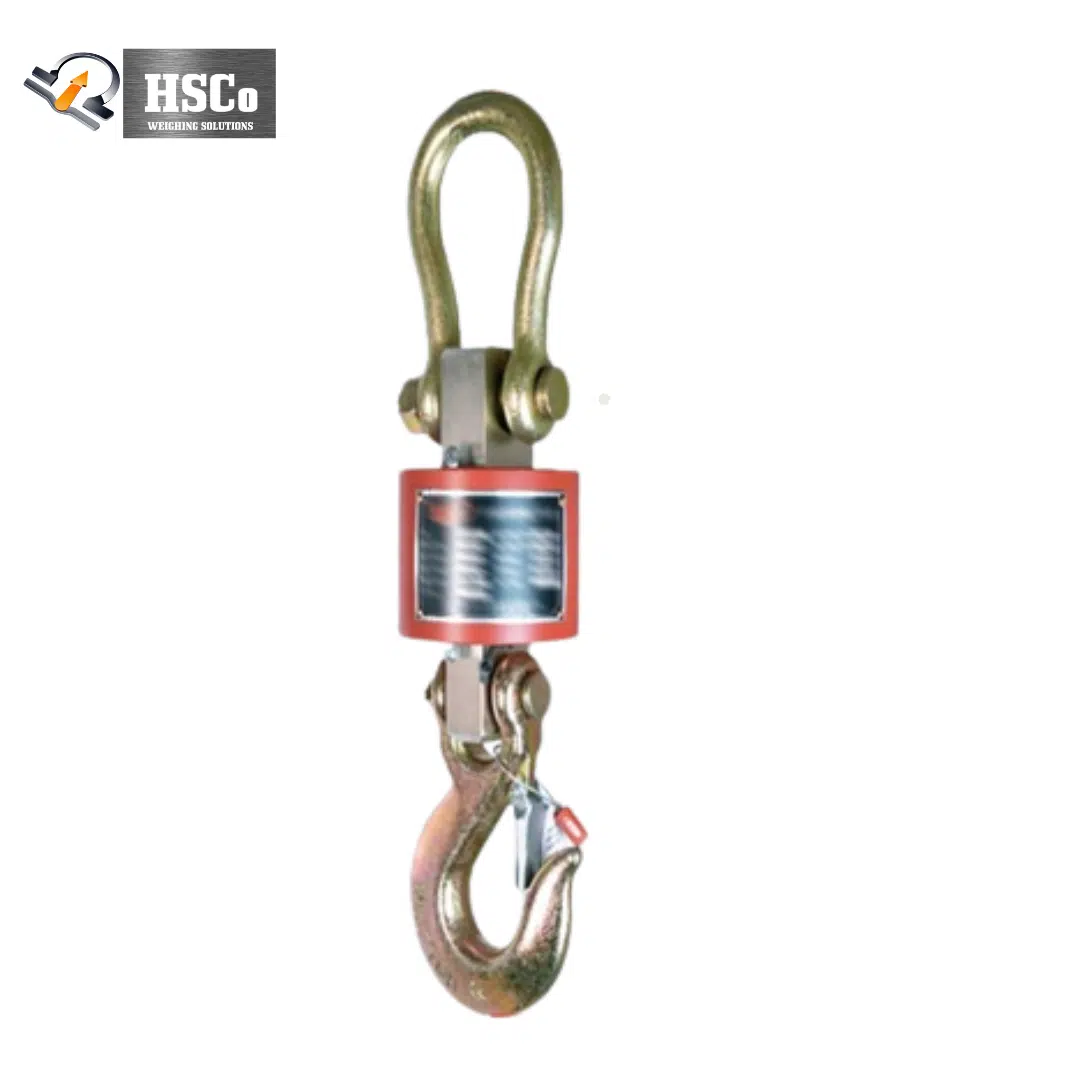

The HSCo HSC-DXC series dynamometer is a compact crane scale for heavy industry, with a shackle at the top and a hook at the bottom. It reads on a clear LCD and on a wireless handheld display, so the load can be read and worked from a safe distance. It shows gross and net weight, holds the peak load, and has zero, tare and unit conversion. A stability chip steadies readings on moving loads, the aluminium die-cast body has a rust- and corrosion-resistant coating, and it runs on mains or its rechargeable battery.
Why buyers choose the HSC-DXC
- Compact and strong: aluminium die-cast body, reinforced housing.
- Wireless handheld display for reading and working it from a distance.
- Peak hold captures the maximum load.
- Gross and net weight, zero, tare and unit conversion.
- Stable on moving loads: stability chip and high internal counts.
- Dual power: 230 V mains or rechargeable battery.
Specifications
| Model | HSC-DXC series |
|---|---|
| Capacities | 3,000, 5,000, 10,000, 20,000 kg (choose above) |
| Body | Aluminium die-cast, 90+ micron coating; rust and corrosion resistant |
| Load cell | Stainless-steel composite; rust and water resistant; 200% overload; life up to 10 years |
| Rigging | Shackle top, hook bottom |
| Display | LCD on the unit; wireless handheld display |
| Functions | Gross / net weight, peak hold, zero, tare, unit conversion, auto calibration, auto power saving |
| Electronics | Stability chip for moving loads; high internal counts; water-resistant PCB; direct charging |
| Power | 230 V AC / 9 V DC; rechargeable battery, fast charge (backup time depends on the model) |
| Options | Handheld display with thermal printer (up to 30,000 records, range up to 30 m); remote display (green 20 mm LED, up to 200 m); Bluetooth; double J hook; handheld remote with jumbo display, printer and USB; jumbo display (4-inch, red or green, up to 20 m); stainless-steel handheld display with RS-232 and USB |
| Warranty | 1 year |
Which dynamometer?
For 2 to 100 t with a wireless display, see the HSC wireless dynamometer; for 3 to 20 t with a 40-hour battery, the CRHLC dynamometer. For a crane scale with a big green display, the CRH crane scale. Browse all crane scales.
Where it is used
Heavy industry and crane lifting.
Questions buyers ask
Yes. It works with a wireless handheld display, and a remote display or jumbo display can be added.
Yes. The peak hold function captures the maximum load.
3, 5, 10 and 20 tonnes.
Order or ask for a quotation
Choose the capacity and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
