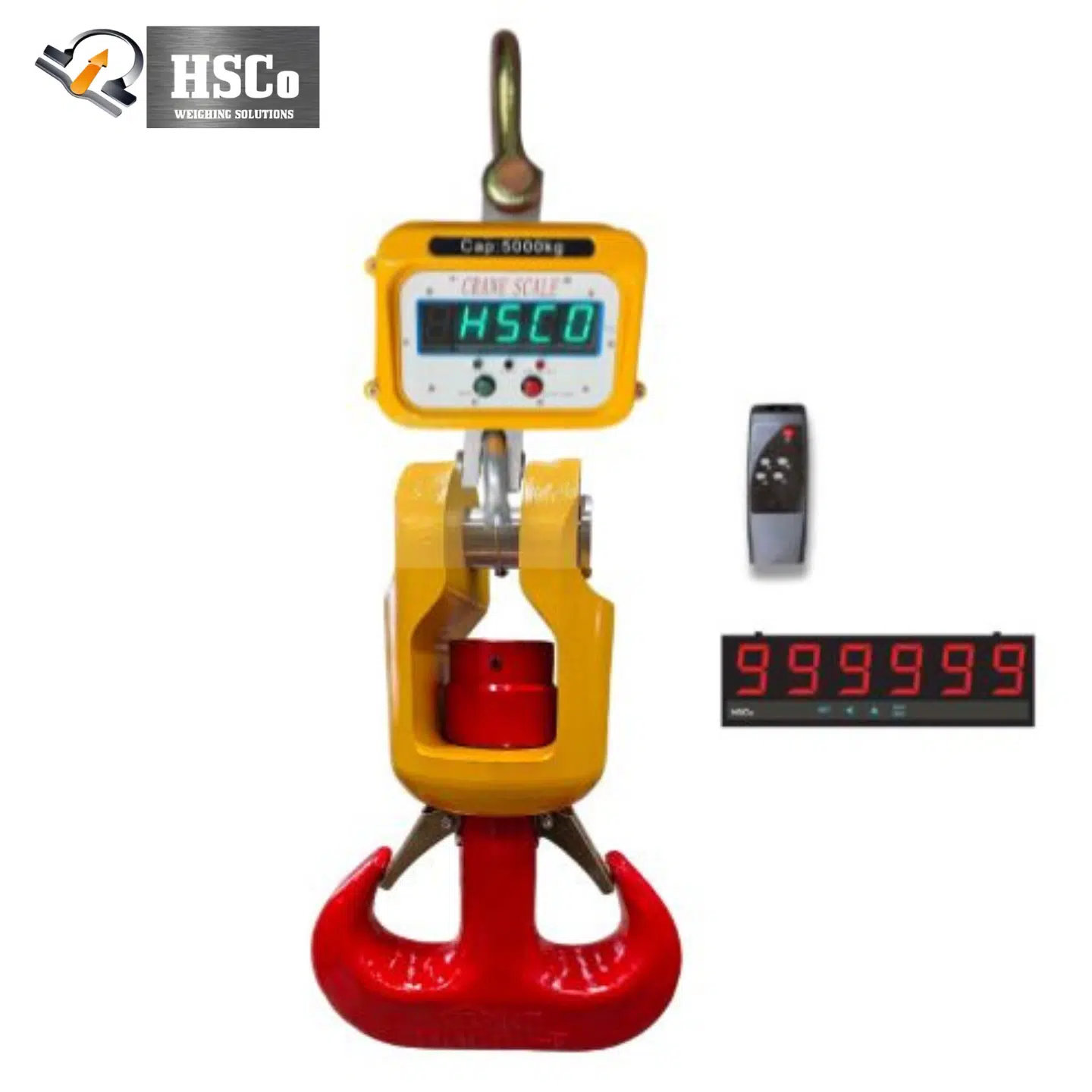

The HSCo CRHJDJH is the CRHJD crane scale, a CRH crane scale with an external jumbo LED display, fitted with a double J hook. The operator can read the weight on the scale’s own bright green display or on the separate six-digit red jumbo display, and tares the scale with the remote. It has a heavy-duty die-cast aluminium body, a superior die-cast load cell and a water-resistant PCB, is rust and water resistant, and is stamped by the Legal Metrology department. It comes from 3 to 50 tonnes in 1, 2 or 5 kg steps.
Why buyers choose the CRHJDJH
- Double J hook at the bottom, shackle at the top.
- Two displays: the scale’s green display and an external red jumbo LED display.
- Remote control for tare and other functions.
- Rust and water resistant, with a water-resistant PCB.
- 3 to 50 t, in 1, 2 or 5 kg steps.
- Stamped by the Legal Metrology department.
Specifications
| Capacity | Accuracy |
|---|---|
| 3,000 kg | 1 kg |
| 5,000 kg | 2 kg |
| 10,000 kg | 5 kg |
| 20,000 kg | 5 kg |
| 50,000 kg | 5 kg |
| Model | CRHJDJH (CRHJD series with double J hook) |
|---|---|
| Body | Heavy-duty die-cast aluminium, ultra powder coating 90+ micron |
| Load cell | Superior aluminium die-cast; 200% overload |
| Rigging | Shackle top, double J hook bottom |
| Displays | Bright jumbo green LED on the scale; external jumbo LED display, six red digits |
| Remote | Remote control for tare and other functions, range up to 10 m |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode; digital overload indication |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC, 1 A; rechargeable battery (backup time depends on the model) |
| Operating temperature | 0 – 40 °C |
| Options | Jumbo remote / Wi-Fi display; printer output |
| Certification | Legal Metrology stamped; Made in India |
| Warranty | 1 year |
Which crane scale?
With a standard hook, see the CRHJD crane scale with jumbo display. Without the external display, the CRHDJH; for 20 to 50 t heavy loads, the CRH B DJH. Browse all crane scales.
Where it is used
Cranes in construction, docks and naval use, steel industries, heavy industries and manufacturing.
Videos and downloads
Questions buyers ask
Where can I read the weight?
On the scale’s own green display, and on the separate red jumbo LED display.
Which capacities and steps are available?
3 t in 1 kg steps, 5 t in 2 kg steps, and 10, 20 and 50 t in 5 kg steps.
Can I tare it from the ground?
Yes. The remote control tares the scale and runs its other functions.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity you need. Hindustan Scale Company, Mumbai, since 1955.
