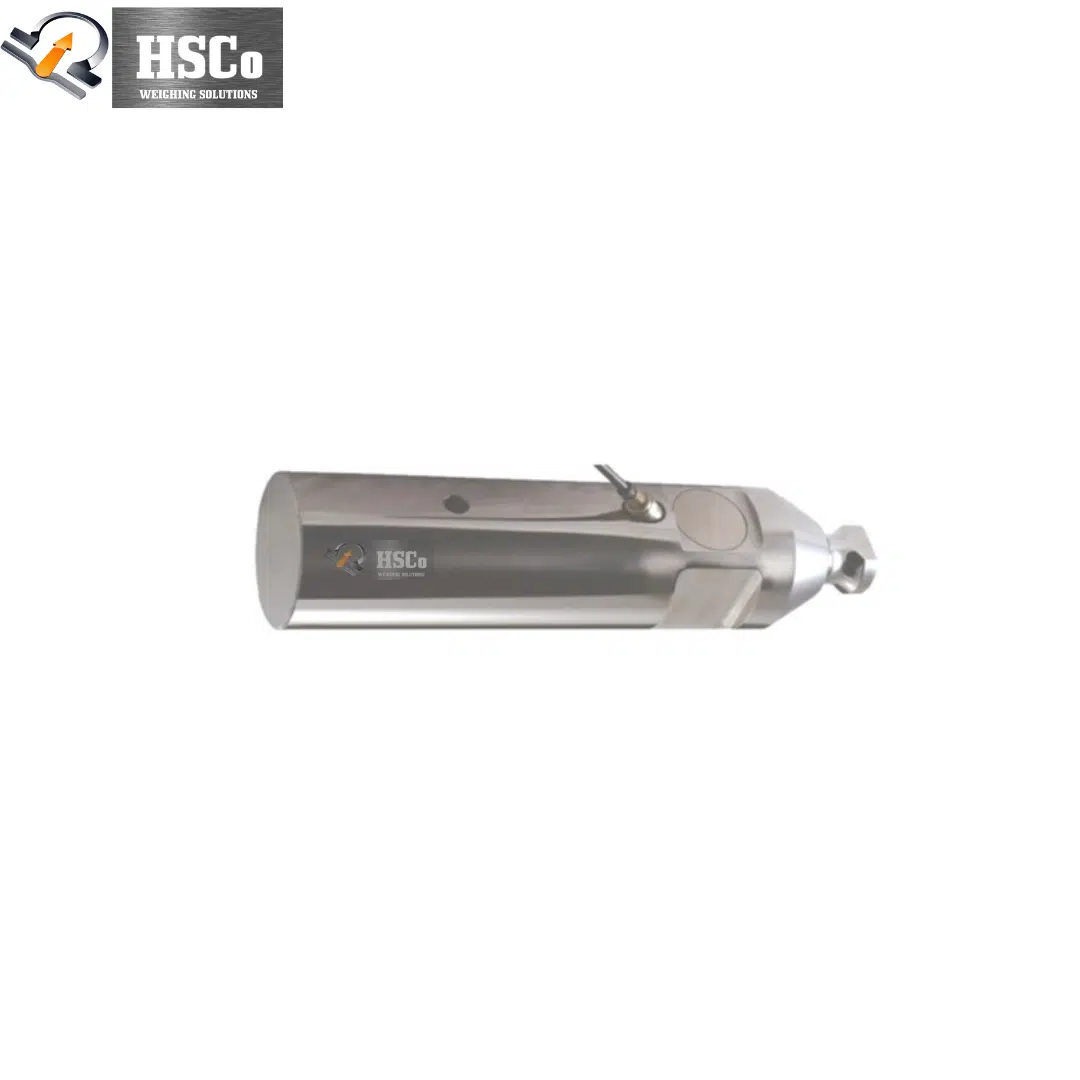

The HSC LCX-4 is a single-ended fixed beam load cell with a circular cross-section, from 1.25 to 75 klb (about 0.57 to 34 t). It is easy to install and interchangeable, with an alloy-steel body and IP67 protection. Sensitivity is 2.0 mV/V with ±0.02% FS total error, and it survives up to 300% overload. It is made for small and medium electronic platform scales, hopper scales and process scales.
Why scale makers choose it
- 1.25 to 75 klb (about 0.57 – 34 t).
- Round-section beam, easy to fit and interchangeable.
- Accurate: ±0.02% FS total error.
- Tough: limit overload 300% FS, IP67.
Specifications
| Model | HSC LCX-4 |
|---|---|
| Type | Single-ended fixed beam, circular cross-section |
| Capacities | 1.25, 2.5, 5, 10, 25, 50, 75 klb (about 0.57, 1.13, 2.27, 4.54, 11.3, 22.7, 34.0 t) |
| Sensitivity | 2.0 ± 0.004 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 300% FS |
| Excitation | 5 – 15 V DC recommended; 20 V DC max |
| Input / output impedance | 380 ± 10 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP67 |
| Material | Alloy steel (stainless steel also listed) |
| Cable | 4 m, Ø5.2 mm; Exc+ red, Exc− black, Sig+ green, Sig− white |
| Standard | OIML R60 |
| Warranty | 1 year |

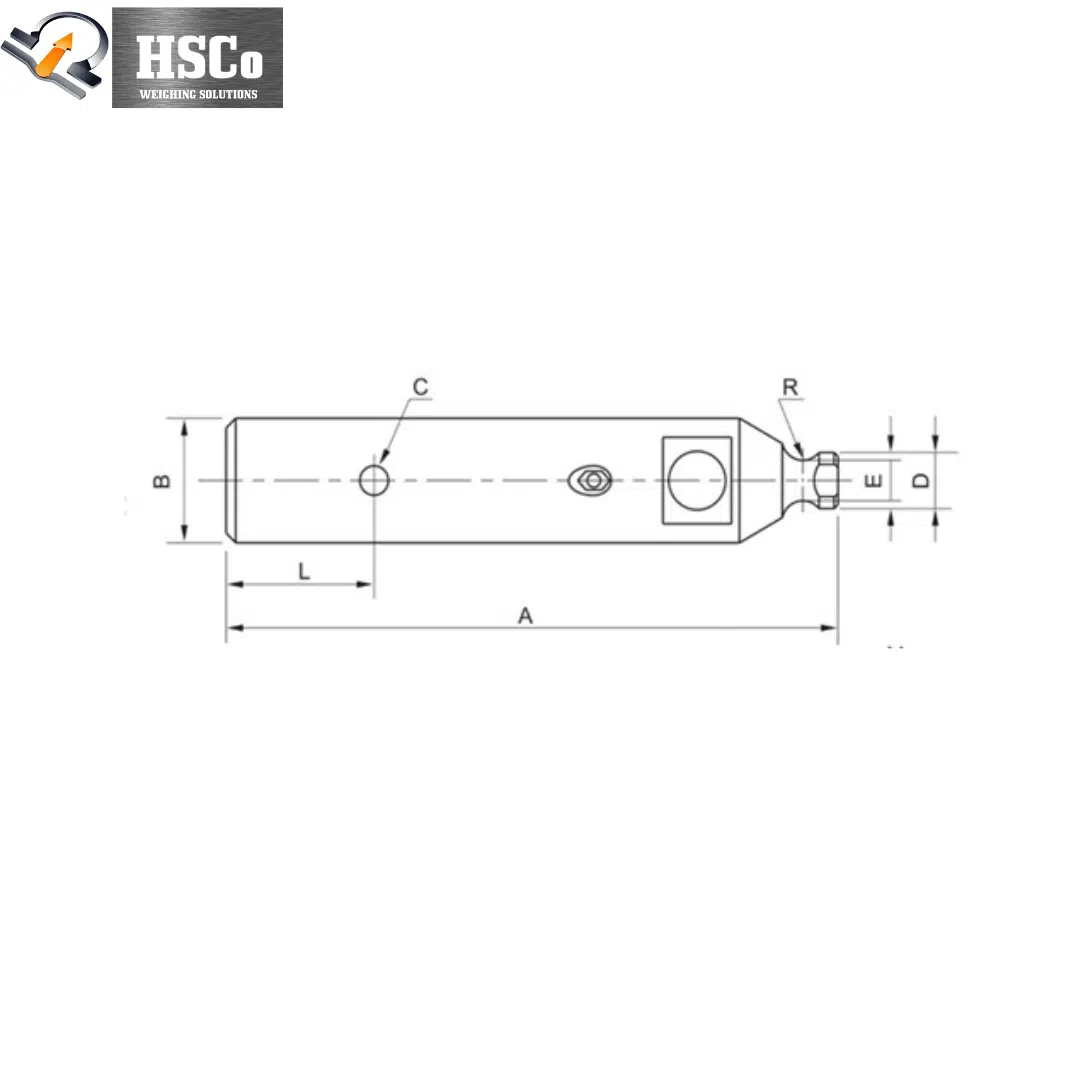

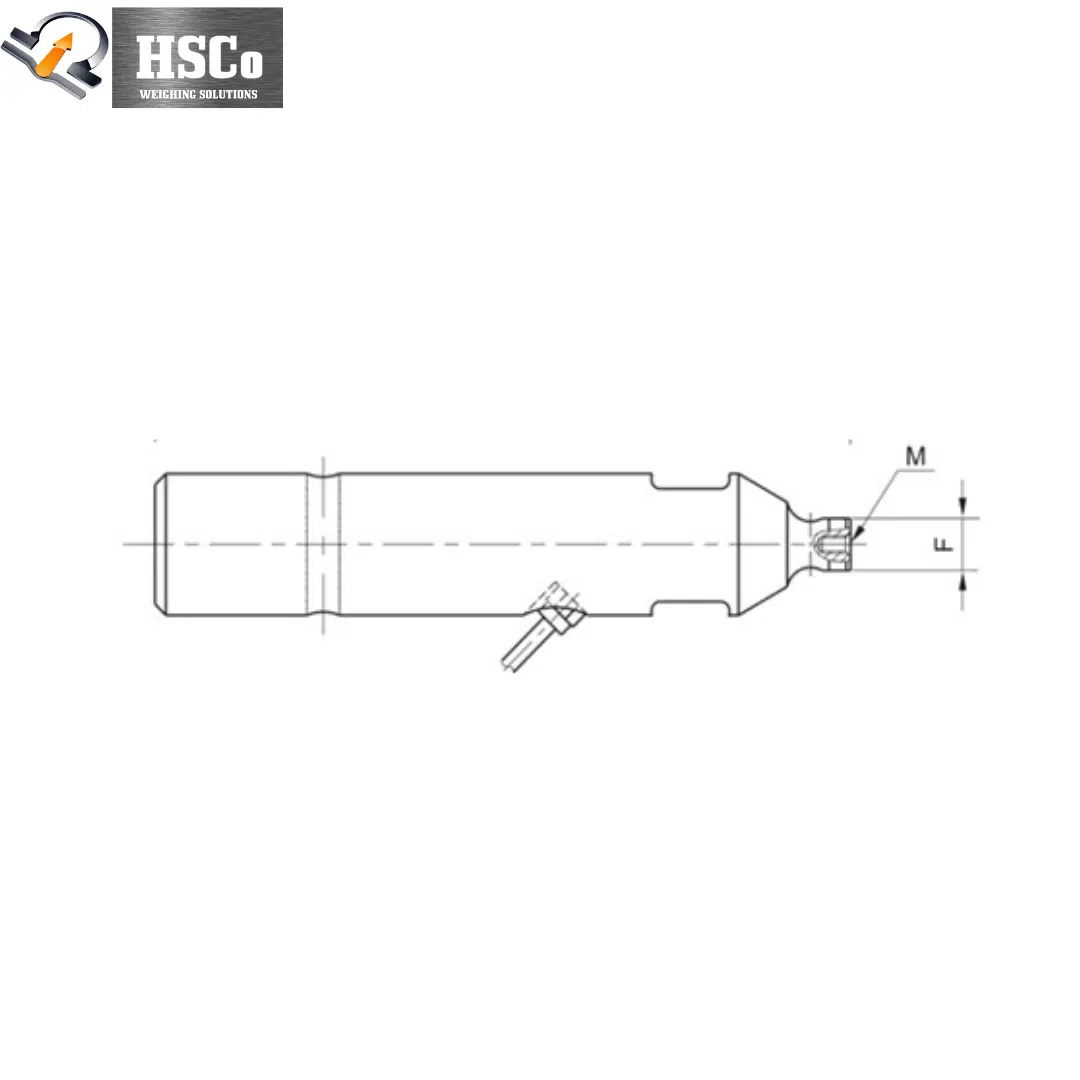

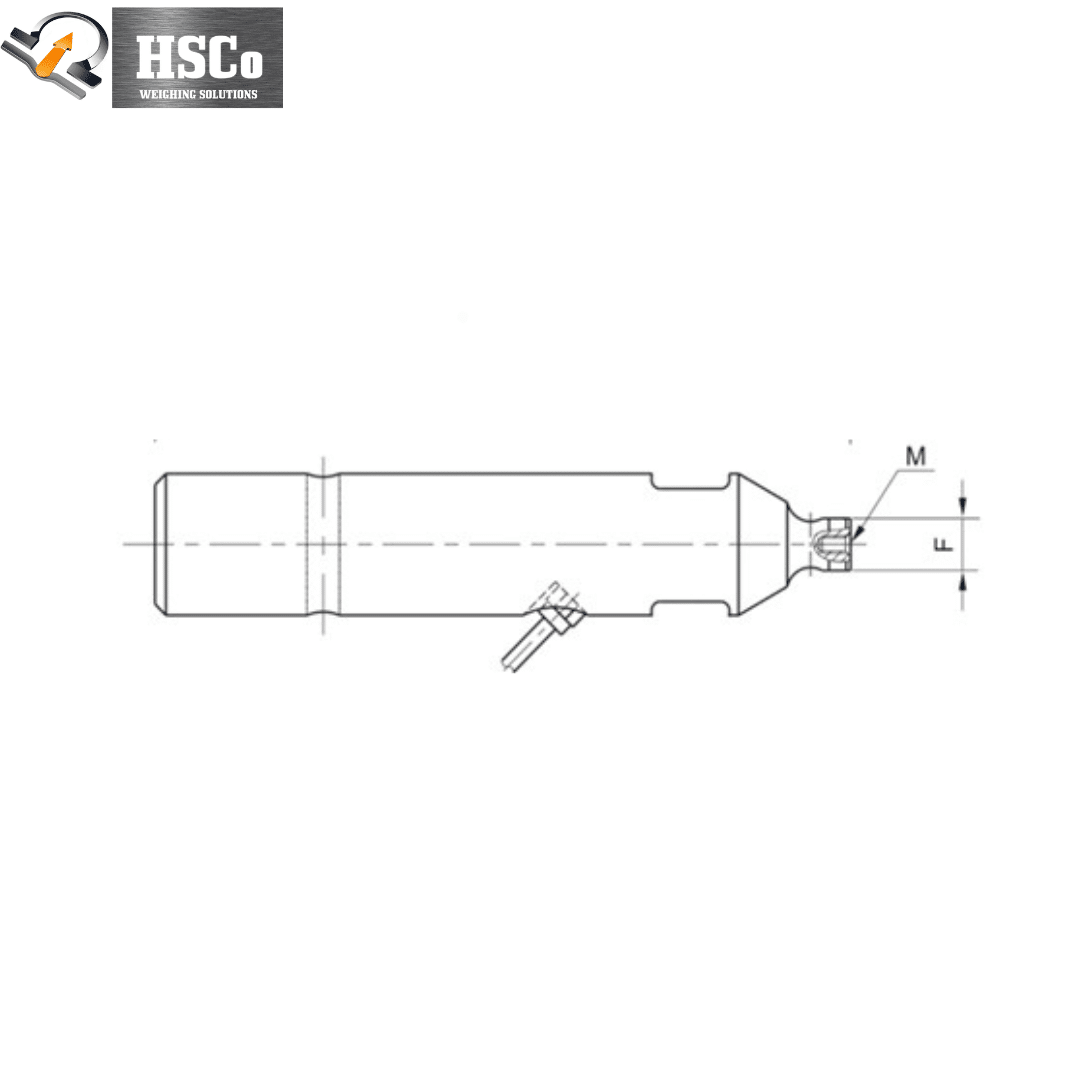

Dimensions (mm; M is the thread):
| Capacity (klb) | A | B | C | D | E | F | R | L | M |
|---|---|---|---|---|---|---|---|---|---|
| 1.25 | 292.1 | 31.8 | 8.4 | 12.7 | 12.7 | 14.0 | 6.4 | 76.2 | #6-32 |
| 2.5 | – | 41.2 | 10.0 | 12.7 | 12.7 | 14.3 | 7.6 | 76.2 | #6-32 |
| 5 | 276.1 | 50.8 | 10.0 | 22.2 | 14.3 | 15.9 | 9.6 | 79.4 | #8-32 |
| 10 | 320.7 | 63.5 | 10.0 | 28.6 | 20.6 | 23.4 | 11.1 | 77.8 | ¼-20 |
| 25 – 50 | 377.8 | 88.5 | 13.0 | 44.5 | 31.6 | 34.9 | 15.9 | 92.0 | 5/16-18 |
| 75 | 479.5 | 127.0 | 13.0 | 50.8 | 38.1 | 41.3 | 17.5 | 117.5 | 5/16-18 |
Which load cell?
For another single-ended fixed beam, see the LCX-5; for cantilever beams, the LCX-1 or the LCX-3. To connect several cells, use a junction box. Browse all load cells.
Where it is used
Small and medium electronic platform scales, hopper scales and process scales.
Questions buyers ask
1.25, 2.5, 5, 10, 25, 50 and 75 klb, about 0.57 to 34 tonnes.
150% of full scale safely, and up to 300% without damage.
Excitation + red, excitation − black, signal + green, signal − white.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
