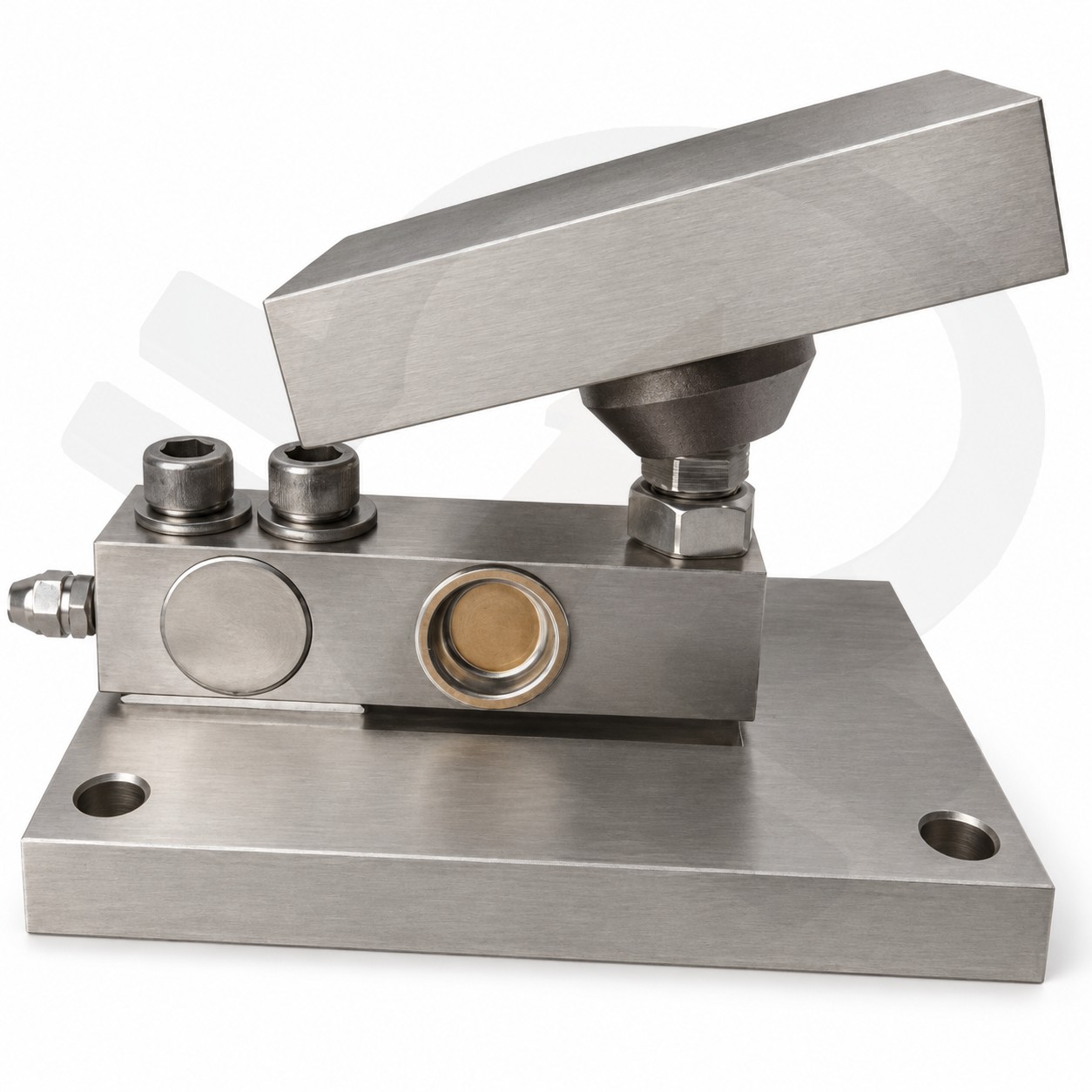

The HSC MA4 tank weighing assembly (0.1 t to 3 t) turns a small tank, hopper or vessel into a scale. Each module holds a shear-beam load cell with a self-aligning top plate on a ball-and-cone joint, and mounts directly to the tank; a support bolt stops the tank overturning. It is made of nickel-plated alloy steel or stainless steel and connects through a junction box to a weighing indicator.
Why plants choose it
- Mounts directly to tanks, hoppers and vessels.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process control.
- Rugged: nickel-plated alloy steel or stainless steel.
- 0.1 t to 3 t, in capacities and layouts to suit.
Specifications
| Series | HSC MA4 load cell mounting assembly |
|---|---|
| Capacity | 0.1 t to 3 t |
| Load cell | Shear beam with a self-aligning top plate on a ball-and-cone joint |
| Mounting | Mounts directly to the tank; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| System parts pictured | Mounting assembly, junction box, weighing indicator, printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
For a top plate on a post with a side link, see the MA3 (0.1 t to 3 t); with a round top plate, the MA5 (0.1 t to 8 t); with a slotted top plate, the MAX. Complete systems: the indoor and outdoor tank weighing systems. Browse all tank weighing scales.
Where it is used
Tanks, silos, hoppers and vessels in process plants, and platform scales.
Questions buyers ask
How many modules does a tank need?
Usually one per leg or support; tell us the tank layout and full weight and we will size it.
What capacity does the MA4 series cover?
0.1 t to 3 t per module.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, number of legs and full weight. Hindustan Scale Company, Mumbai, since 1955.
