Tank Weighing Assembly HSC MK – 0.1 t to 10 t, Load Cell Mounting Module
Price on Request
Tank weighing assembly HSC MK (0.1 t to 10 t): shear beam with an adjustable loading bolt through a slotted top plate; earth strap; mounts directly to the tank, support bolt against overturning, nickel-plated alloy steel or stainless steel, with junction box and weighing indicator. 1-year warranty.

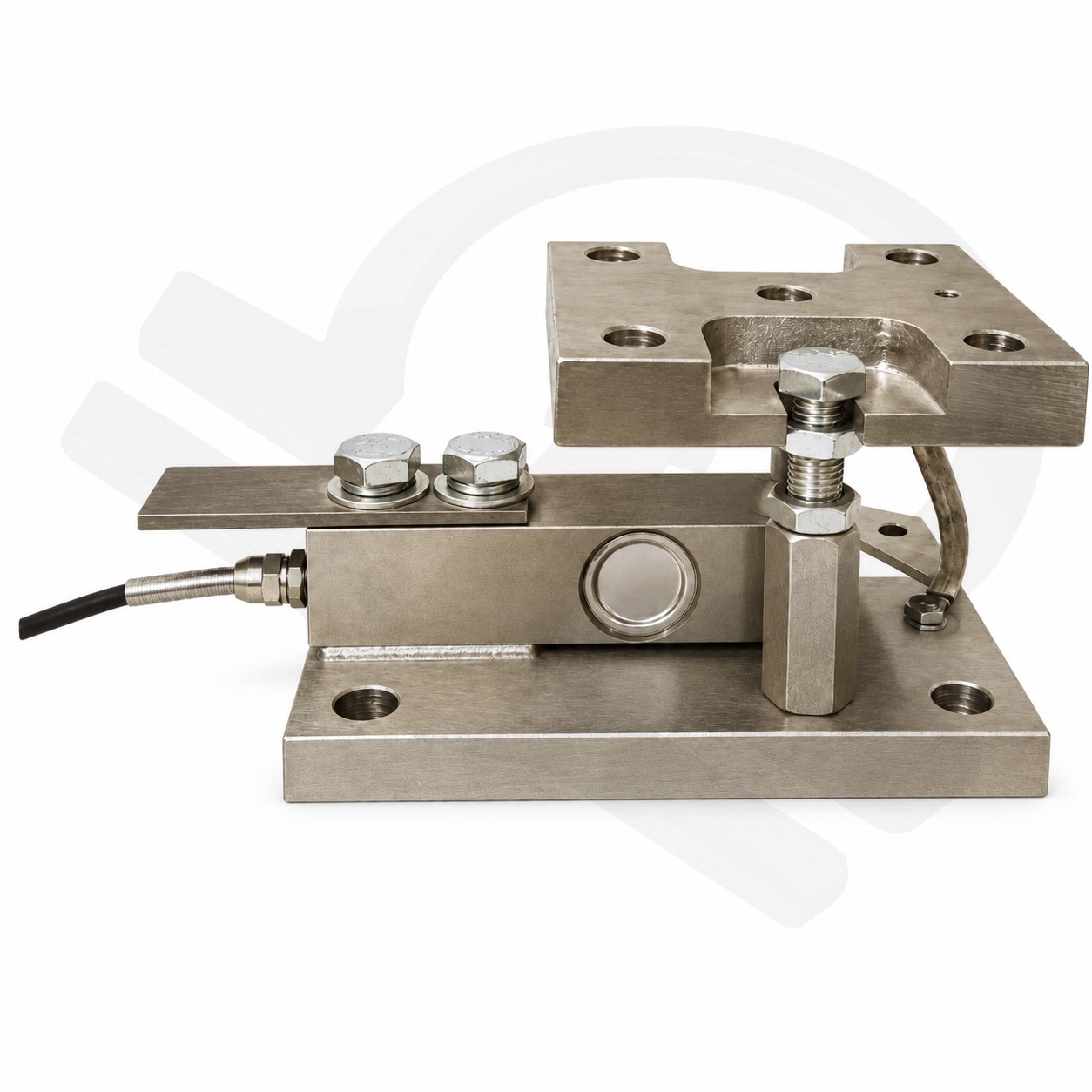

The HSC MK tank weighing assembly (0.1 t to 10 t) turns a small tank, hopper or vessel into a scale. Each module holds a shear-beam load cell with an adjustable loading bolt through a slotted top plate, and an earth strap, and mounts directly to the tank; a support bolt stops the tank overturning. It is made of nickel-plated alloy steel or stainless steel and connects through a junction box to a weighing indicator.
Why plants choose it
- Mounts directly to tanks, hoppers and vessels.
- Anti-overturn support bolt for safety.
- High accuracy and stability for process control.
- Rugged: nickel-plated alloy steel or stainless steel.
- 0.1 t to 10 t, in capacities and layouts to suit.
Specifications
| Series | HSC MK load cell mounting assembly |
|---|---|
| Capacity | 0.1 t to 10 t |
| Load cell | Shear beam with an adjustable loading bolt through a slotted top plate; earth strap |
| Mounting | Mounts directly to the tank; support bolt against overturning |
| Material | Nickel-plated alloy steel / stainless steel |
| System parts pictured | Mounting assembly, junction box, weighing indicator, printing indicator, load cell cable |
| Uses | Tank, silo and hopper weighing; platform scales |
| Warranty | 1 year |
Which tank weighing assembly?
For 20 kg to 5,000 kg, see the MT1; for 500 kg to 10 t, the MT3 or the MT2. Complete systems: the indoor and outdoor tank weighing systems. Browse all tank weighing scales.
Where it is used
Tanks, silos, hoppers and vessels in process plants, and platform scales.
Questions buyers ask
How many modules does a tank need?
Usually one per leg or support; tell us the tank layout and full weight and we will size it.
What capacity does the MK series cover?
0.1 t to 10 t per module.
What stops the tank tipping?
A support bolt in each assembly prevents overturning.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tank size, number of legs and full weight. Hindustan Scale Company, Mumbai, since 1955.
