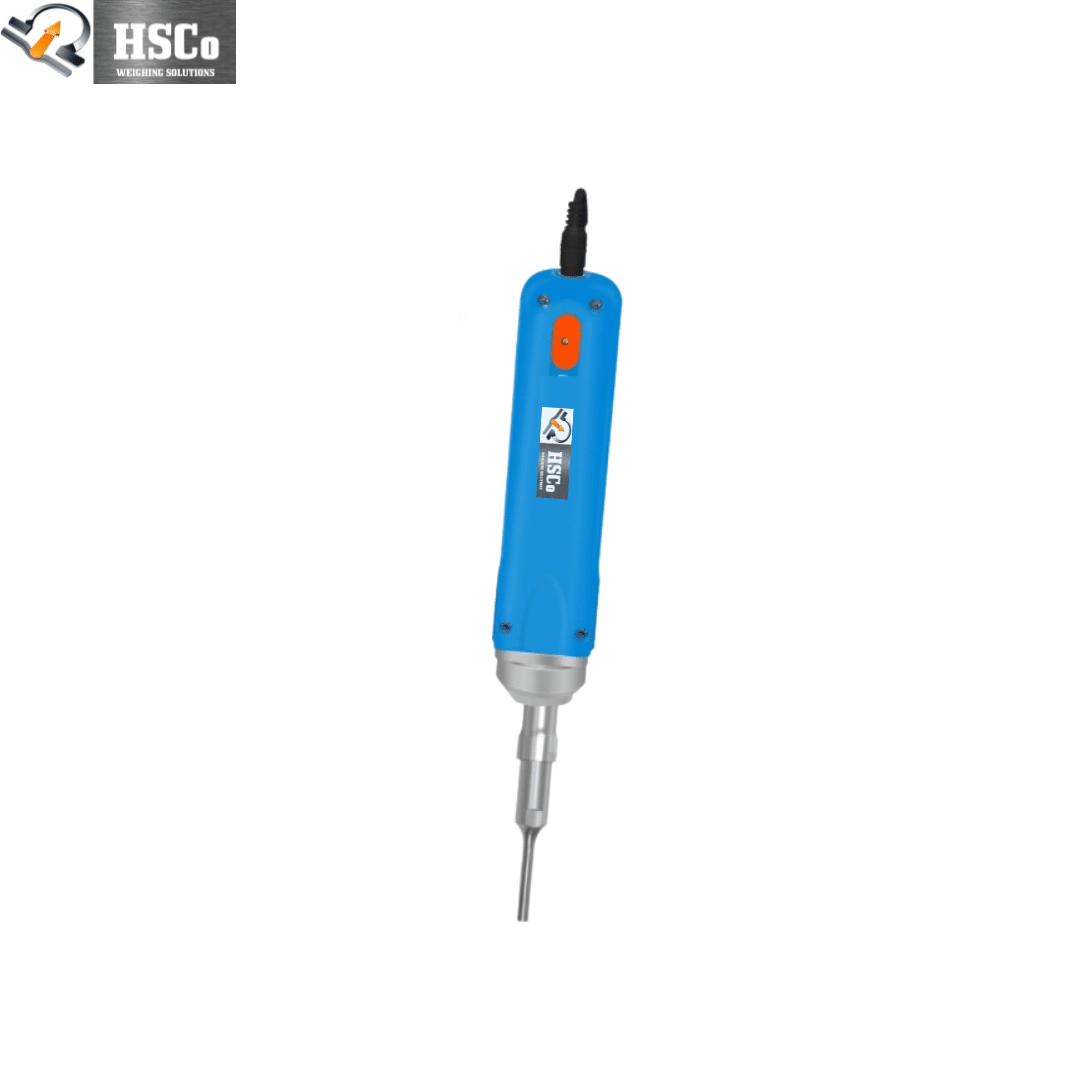

The HSCo mini ultrasonic homogenizer is a hand-held, pen-sized sonicator for small samples from 0.1 to 300 ml. At 30 kHz and up to 300 W it disrupts cells, emulsifies, disperses and prepares nanoparticles, through a titanium-alloy horn. It runs on mains or 12–24 V DC, so it works on the bench or in the field, and weighs about half a kilogram.
Why labs choose it
- Hand-held and light: about 0.4–0.5 kg.
- 0.1 – 300 ml sample volume.
- 30 kHz, up to 300 W ultrasound.
- TC4 titanium-alloy horn, 6 mm standard, other sizes optional.
- Mains or DC power: 100–230 V AC or 12–24 V DC.
- Protection alert: the power light flashes if protection trips.
Models
| Standard | E model | |
|---|---|---|
| Power | 7 – 300 W | 10 – 300 W, manual analogue adjustment |
| Sample volume | 0.1 – 300 ml | 0.1 – 300 ml |
| Single run | Under 30 min | Under 60 min (watch sample temperature) |
| Frequency | 30 kHz | 30 kHz |
| Standard horn | Ø6 mm | Ø6 mm |
| Optional horns | Ø1.5 / 2 / 3 / 6 / 8 mm | Ø2 / 6 / 8 mm |
| Horn material | TC4 titanium alloy | TC4 titanium alloy |
| Control | Push button (blue light), voice alarm and prompts | Lockable key |
| Power supply | 100 – 230 V AC or 12 – 24 V DC | 100 – 230 V AC or 12 – 24 V DC |
| Size / weight | 320 × 40 × 47 mm / 0.4 kg | 320 mm × Ø43 mm / 0.5 kg |
| Option | Fixed support bracket | |
Where it is used
Cell disruption, DNA/RNA extraction, protein studies, emulsification, dispersion and nanoparticle preparation in research, teaching and QC labs. Browse all homogenizers and stirrers.
Questions buyers ask
From 0.1 ml up to 300 ml.
Yes, it takes 12–24 V DC as well as mains.
TC4 titanium alloy; 6 mm is standard, other sizes optional.
Up to 30 minutes per run on the standard model and 60 on the E model, watching the sample temperature.
