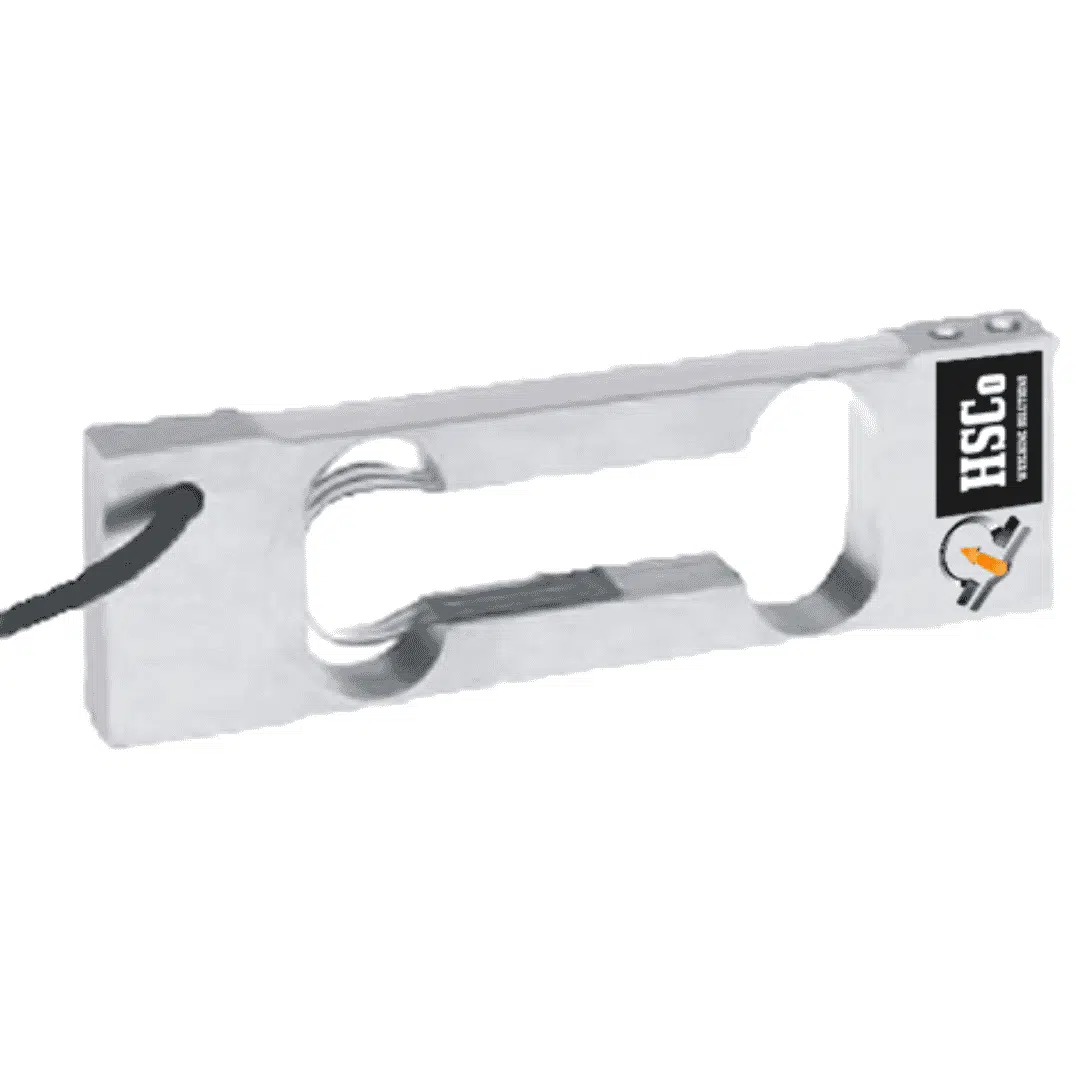

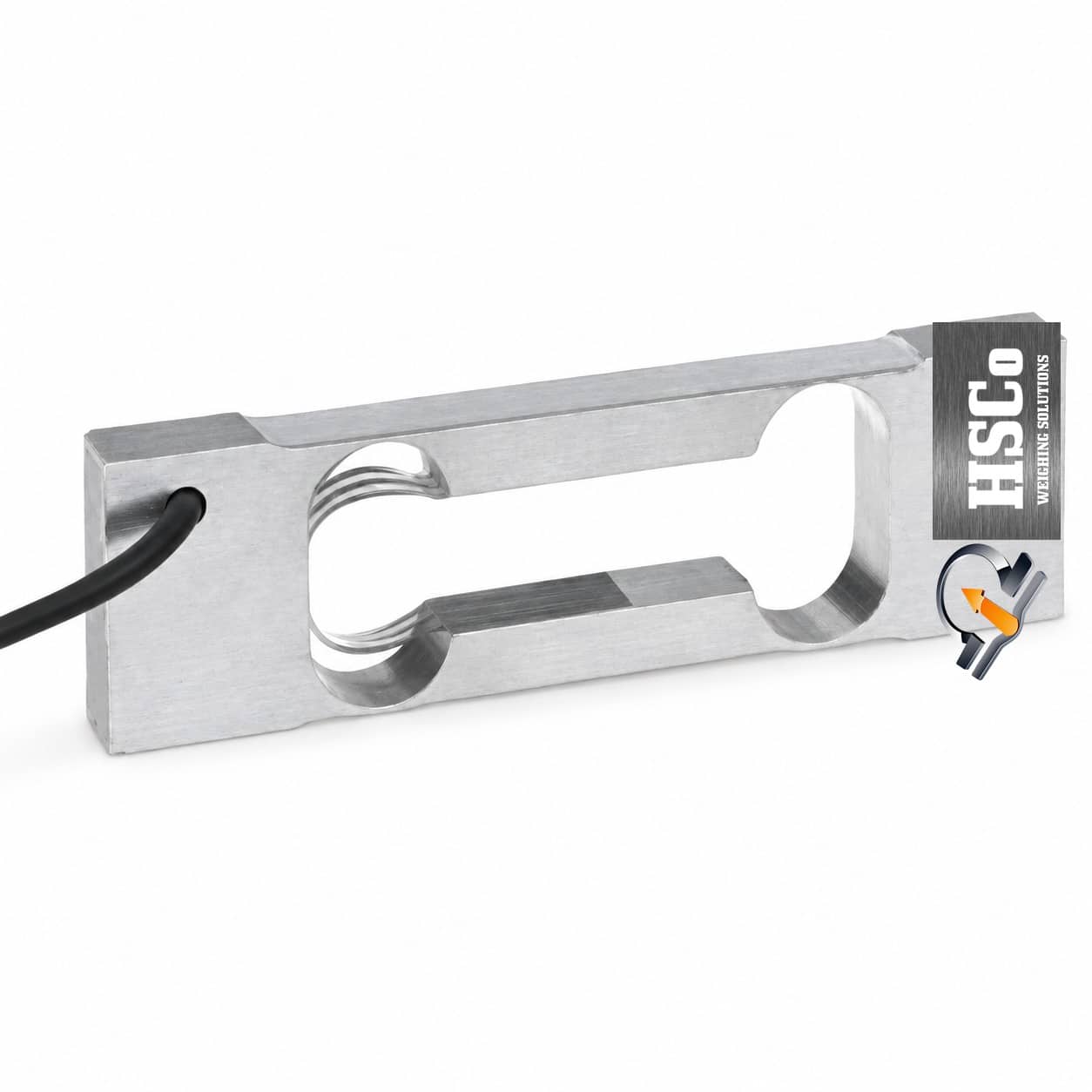

The HSCo jewellery load cell is a high-grade aluminium-alloy single-point load cell built for jewellery and diamond scales. It resolves up to 1,00,000 divisions for short-term precision, is compensated for off-centre loads, and supports platforms up to 200 × 200 mm, which makes it the heart of precise gold and gem balances.
Why scale builders choose it
- High resolution. Up to 1,00,000 divisions short-term precision.
- Off-centre compensated. The same reading wherever the item sits on the pan.
- Compact. For platforms up to 200 × 200 mm.
- Accuracy class C2 / C3.
- High-grade aluminium alloy, colourless anodised.
Specifications
| Type | Single-point strain-gauge load cell |
|---|---|
| Max. platform | 200 × 200 mm |
| Resolution | Up to 1,00,000 divisions (short term) |
| Accuracy class | C2 / C3 |
| Rated output | 1.6 ± 0.1 mV/V |
| Excitation | 9 V DC (maximum 12 V DC) |
| Non-linearity | < ±0.03% of full-scale output |
| Creep (30 min) | < ±0.025% of full-scale output |
| Zero balance | < ±1% of full-scale output |
| Input / output resistance | 400 ± 10 Ω / 350 ± 5 Ω |
| Insulation resistance | Above 5,000 MΩ |
| Capacities | 20, 60, 300, 600, 1,000, 1,200, 2,000 and 3,000 g |
| Safe / ultimate load | 120% / 150% of rated capacity |
| Temperature compensated | −10 to +40 °C |
| Material | Aluminium alloy, colourless anodised |

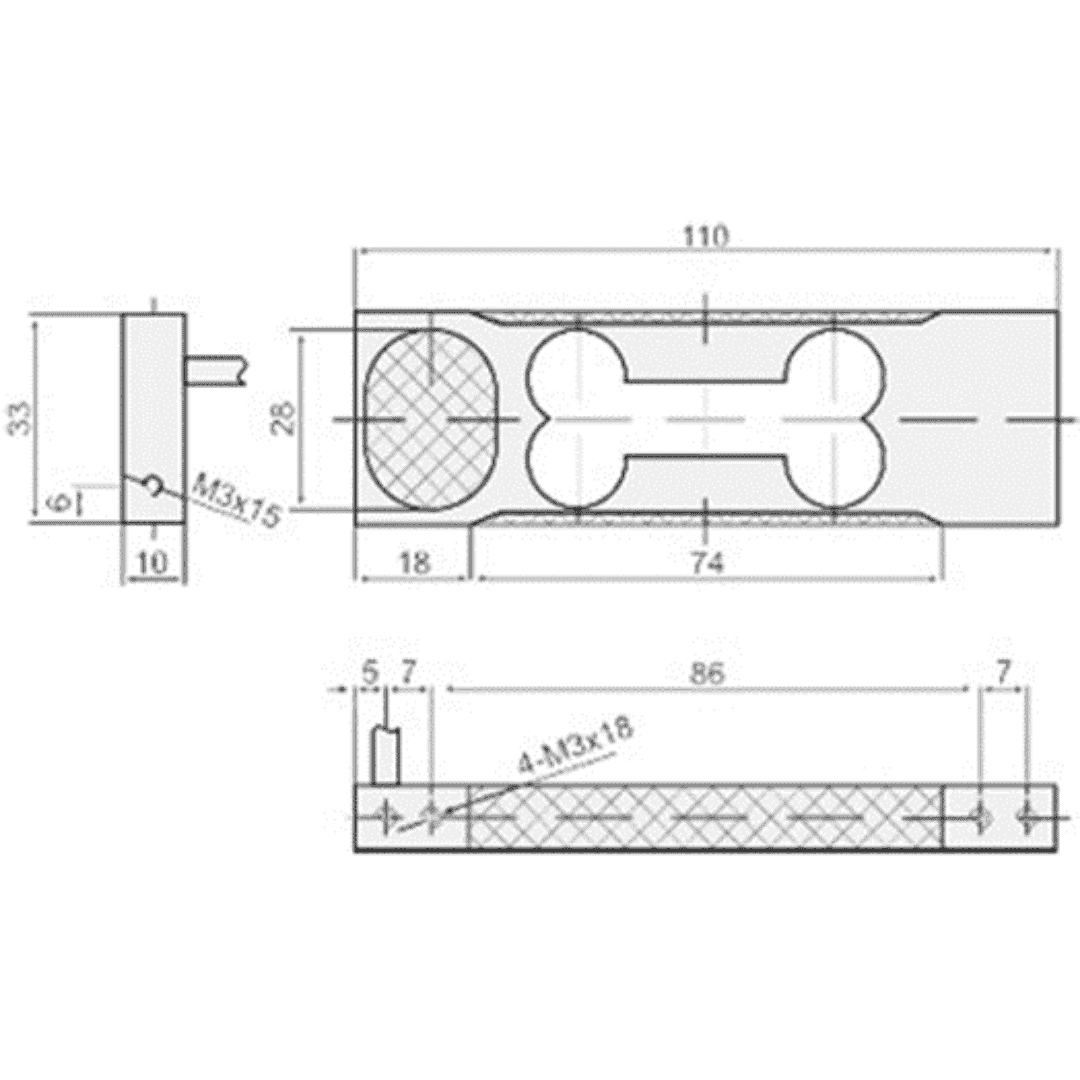

| Mounting | M3 threaded holes (see drawing) |
| Cable | 4 mm, 1 ft |
| Warranty | 1 year |
Where it is used
Jewellery scales, diamond and gem scales, and other small high-precision balances. See our finished JEWE2000 jewellery scale, or browse all load cells.
Questions buyers ask
What is it used for?
Building precise jewellery, diamond and gem scales.
What platform size does it support?
Up to 200 × 200 mm.
Which capacities are available?
20 g to 3,000 g (20, 60, 300, 600, 1,000, 1,200, 2,000 and 3,000 g). Tell us the readability you need and we will confirm the right cell.
What is it made of?
High-grade anodised aluminium alloy.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity and quantity. Hindustan Scale Company, Mumbai, since 1955.
