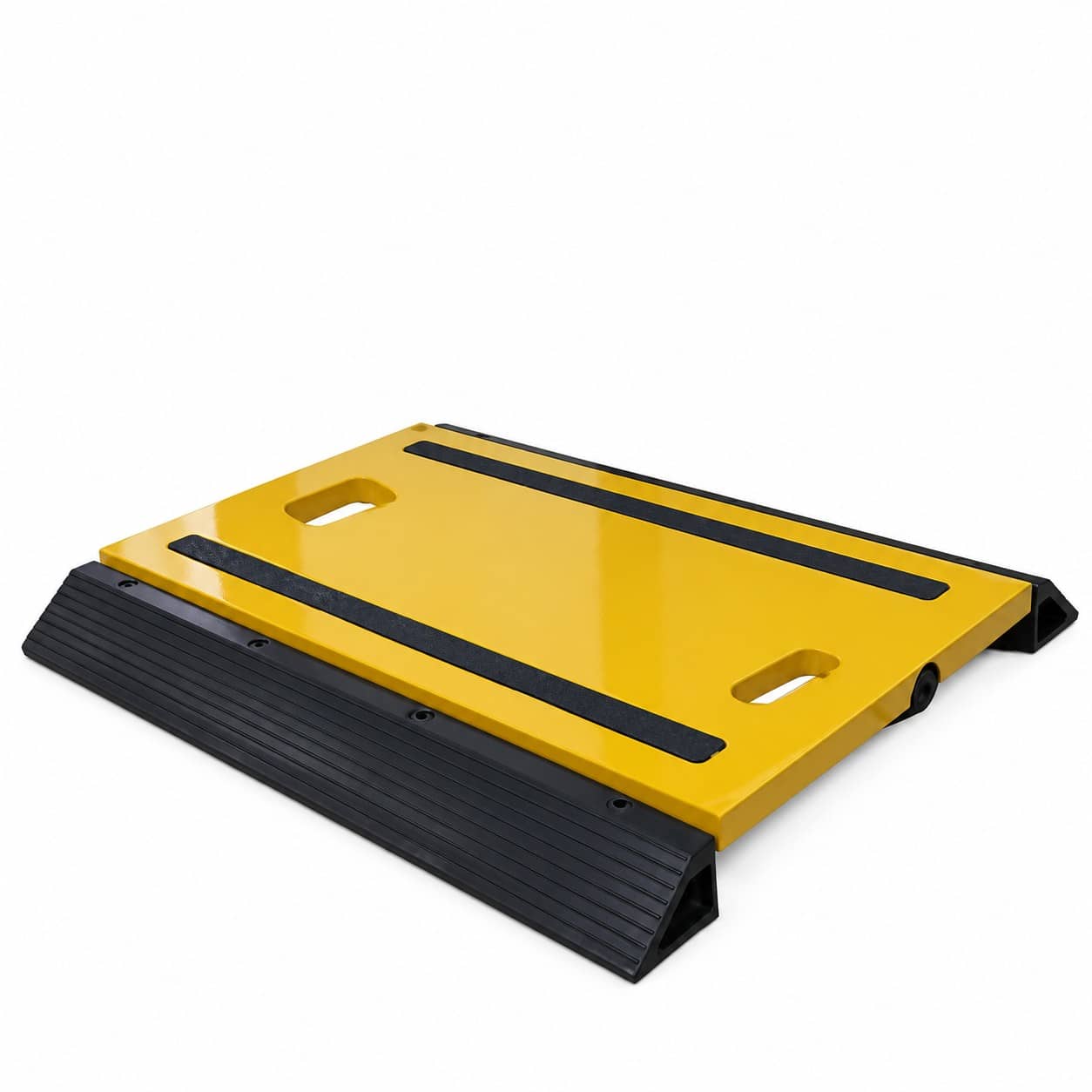

HSCo HSCWP3 weigh pads weigh each axle and the total weight of a vehicle without a weighbridge. The pads are portable, low and fitted with ramps: lay them on the ground, drive the wheels on, and read the axle and gross weight on the indicator. A system is normally one pair of pads and an indicator, with a printer as an option. The HSCWP3 series comes in four sizes, from 2 t to 20 t per pad (4 t to 40 t per axle).
Why buyers choose them
- No civil work. No pit and no foundation; set up anywhere in minutes.
- Axle by axle. Shows each axle’s weight as well as the gross vehicle weight.
- Portable: light aluminium-composite pads, each under 25 kg, carried by one person.
- Accurate on uneven ground, thanks to their load-cell arrangement.
- Weighs moving vehicles too: the HSCo Intellinet indicator captures the weight as a vehicle rolls over.
- Cabled or wireless, with plug-and-play connection to a Windows PC.
Specifications
| Model | Pad (L × W × H) | Ramp | Capacity per pad | Capacity per axle |
|---|---|---|---|---|
| HSCWP302 | 350 × 400 × 40 mm | 350 × 100 mm | 2 t | 4 t |
| HSCWP303 | 400 × 500 × 60 mm | 400 × 150 mm | 3 t | 6 t |
| HSCWP315 | 450 × 700 × 60 mm | 450 × 150 mm | 15 t | 30 t |
| HSCWP320 | 500 × 900 × 60 mm | 500 × 150 mm | 20 t | 40 t |
| System | One pair of weigh pads and an indicator; printer optional |
|---|---|
| Pad build | Aluminium composite, under 25 kg per pad; anti-slip surface; built-in ramps; water and dust resistant |
| Indicator | HSCo Intellinet, with dynamic motion capture; water-resistant PCB |
| Connection | Cabled or wireless; plug and play with a Windows PC; RS-232 |
| Power | Rechargeable battery (backup time depends on the model); extra battery packs optional |
| Delivery | Wooden packing |
| Warranty | 1 year |
Which weigh pad?
For 10 to 40 t per pad, see the HSCWP1 weigh pads. For a fixed installation that weighs whole trucks, see the HSCRCTWB weighbridge. Browse all vehicle scales.
Where it is used
Axle-load surveys, mines, ports, the automobile industry, transporters and logistics yards; places with no space or budget for a full weighbridge; cross-checking an existing weighbridge.
Questions buyers ask
No. The pads sit on the ground and have their own ramps.
One pair of weigh pads and an indicator; a printer can be added.
Pick by axle load: 4 t (HSCWP302), 6 t (HSCWP303), 30 t (HSCWP315) or 40 t (HSCWP320) per axle.
Yes. Each pad weighs under 25 kg.
Yes. Their load-cell arrangement keeps the reading accurate even when the surface is not level.
