HSCo Weigh Pads HSCWP1 – Portable Axle Weighing, 10 to 40 t per Pad
Price on Request
Portable axle weigh pads for cars, trucks and trailers: 40 mm high with ramps and anti-slip surface, no civil foundation, 10–40 t per pad (20–80 t per axle), wheel, axle and total weight on the indicator. Five models, HSCWP110–HSCWP140. 1-year warranty.
हिंदी में इसे वजन काटा कहते हैं. Vajan Kata (वजन काटा) – all types and prices

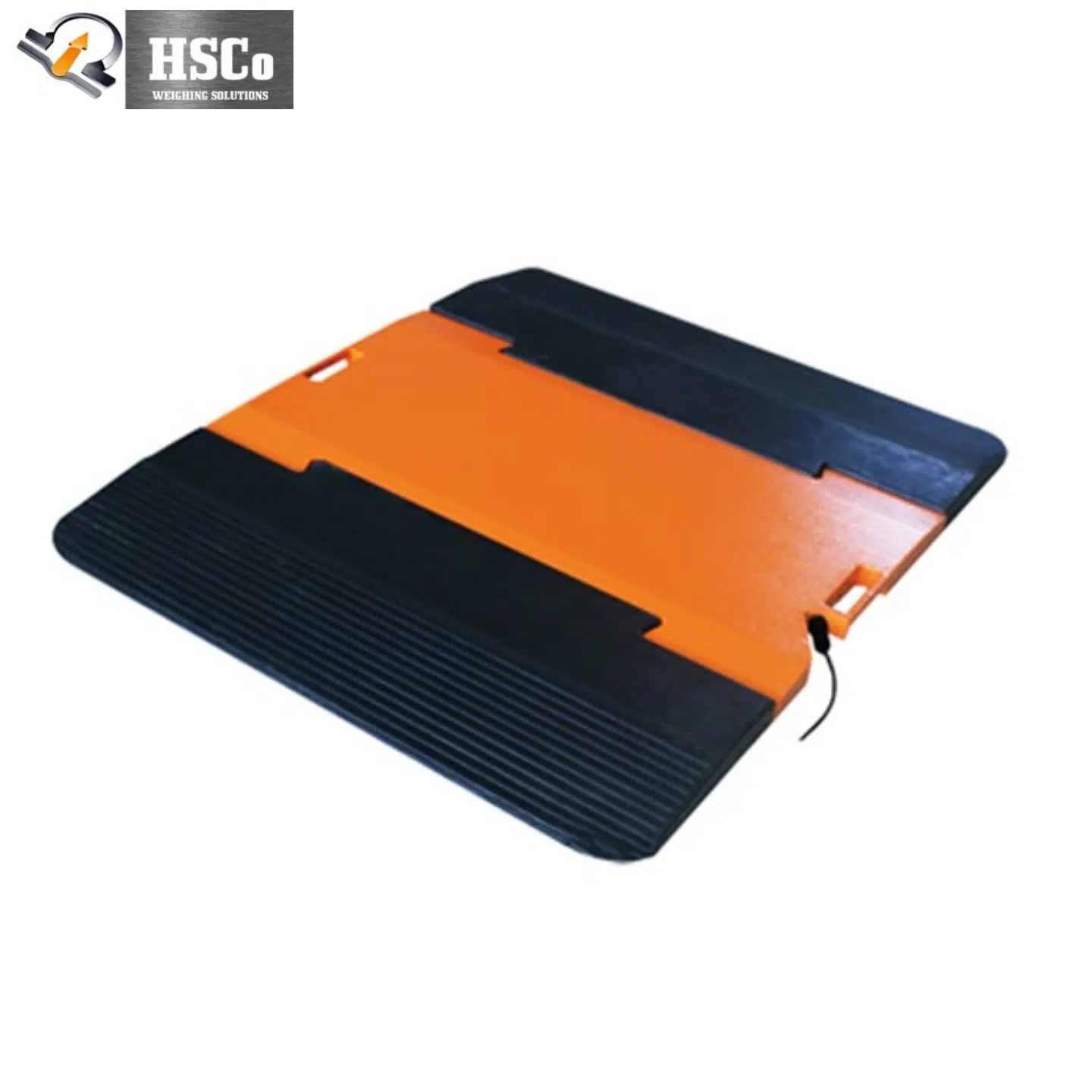

HSCo HSCWP1 weigh pads are portable axle-weighing pads that weigh cars, trucks, trailers and commercial vehicles without a fixed weighbridge. Each pad is slim, only 40 mm high, with ramps at both ends and an anti-slip surface. No civil foundation is needed: place the pads, drive on, and read each wheel, axle and the total vehicle weight on the indicator. Five models carry 10 to 40 tonnes per pad, or 20 to 80 tonnes per axle. They are used in mining, cargo terminals, logistics, transport and manufacturing.
Why buyers choose HSCWP1 weigh pads
- No weighbridge pit. No permanent civil foundation; quick to set up on site.
- Portable. A single operator can carry and place each pad; slim for storage.
- Axle and total weight. Read wheel, axle and whole-vehicle weights.

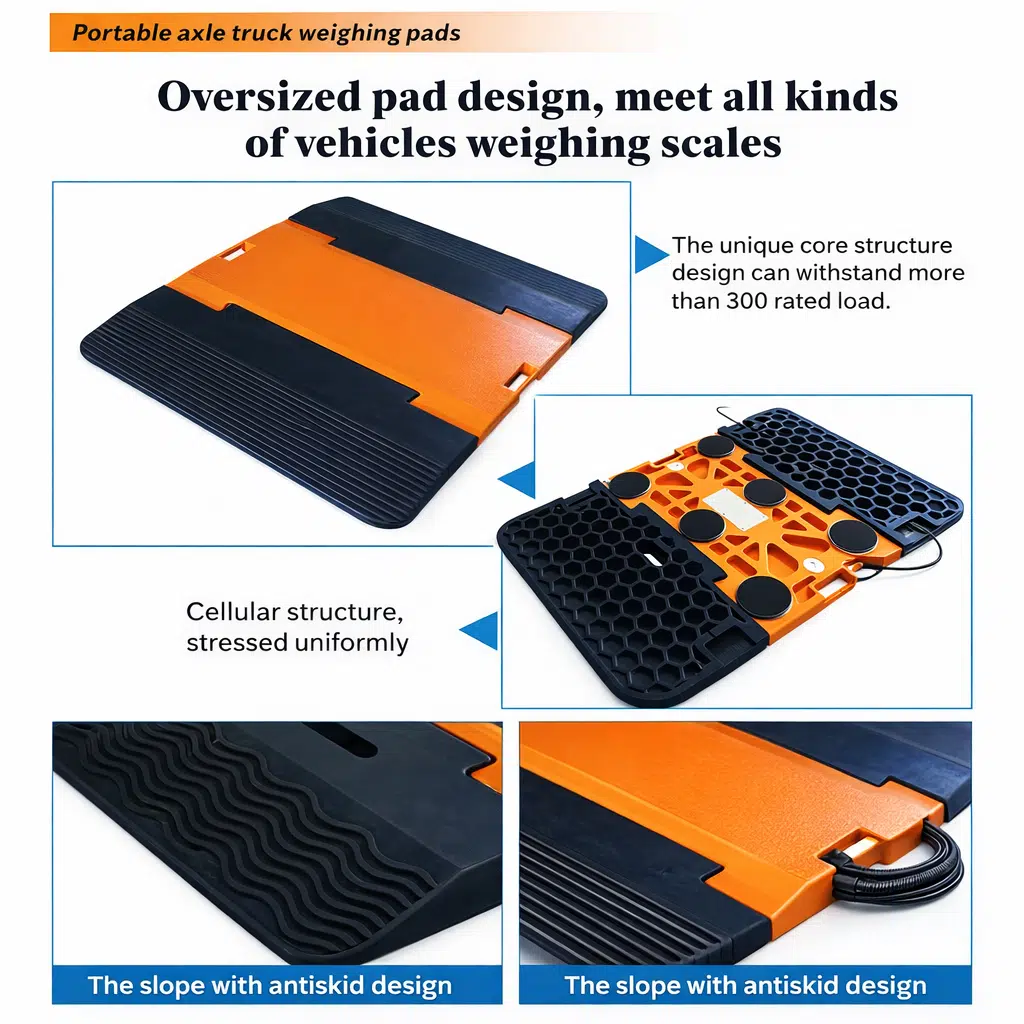

- Safe to drive on. Ramps and an anti-slip surface; weather resistant for outdoor use.
- Five capacities: 10, 20, 30, 35 and 40 tonnes per pad.

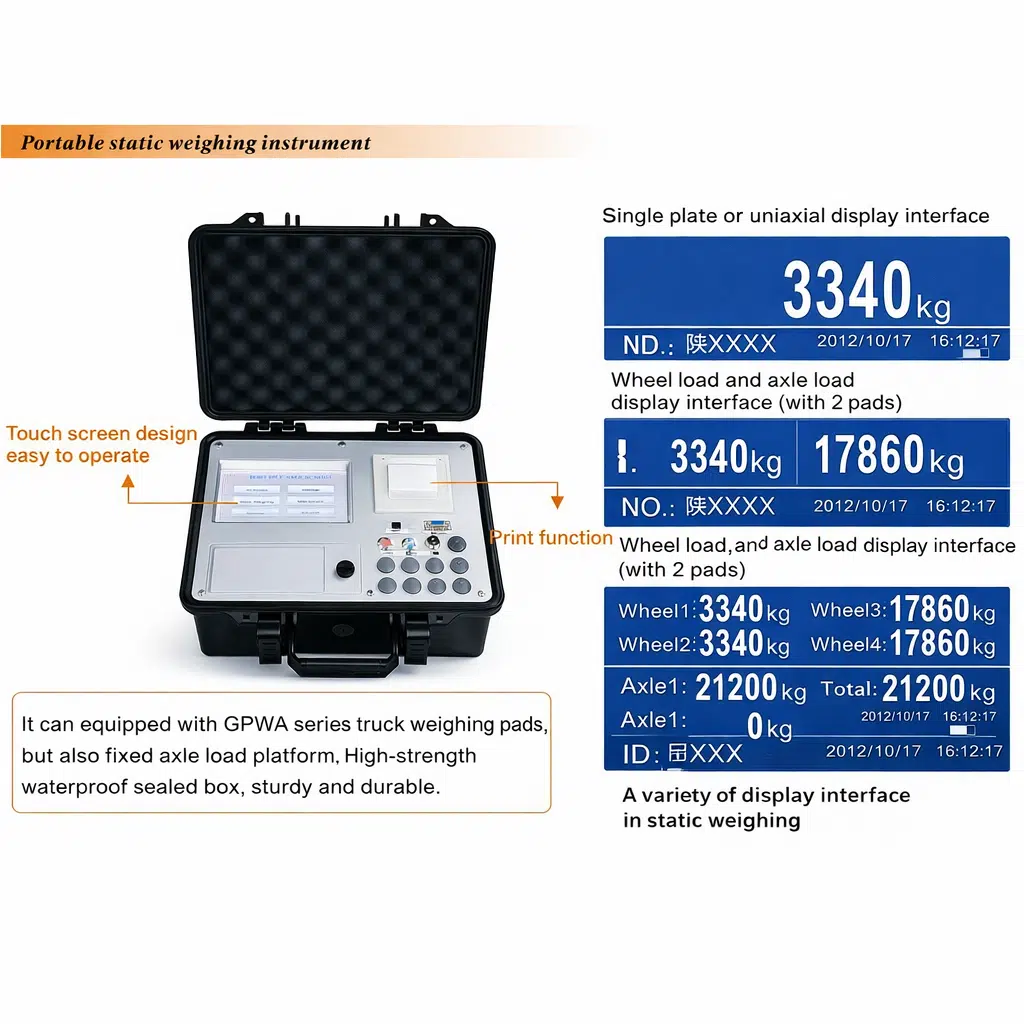

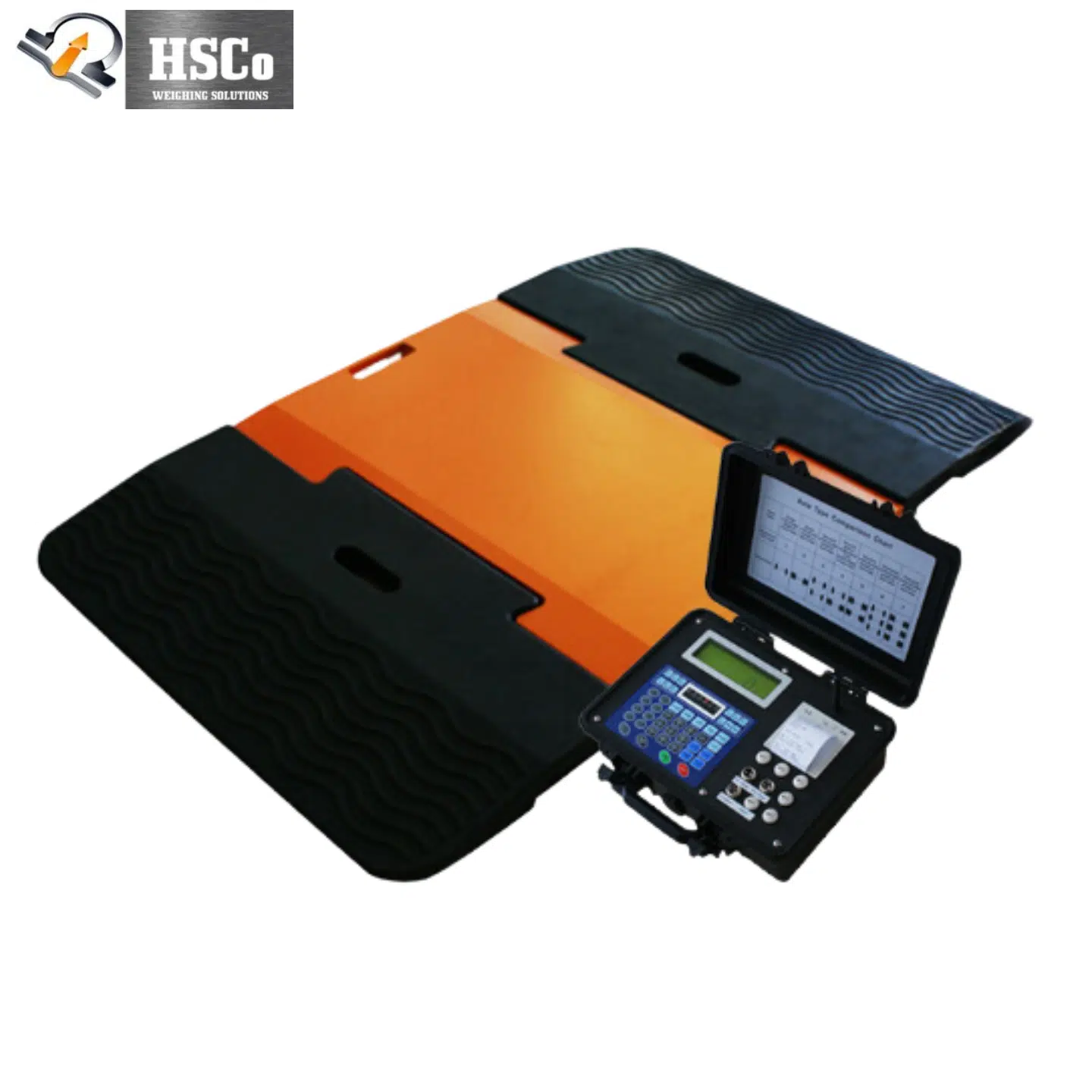

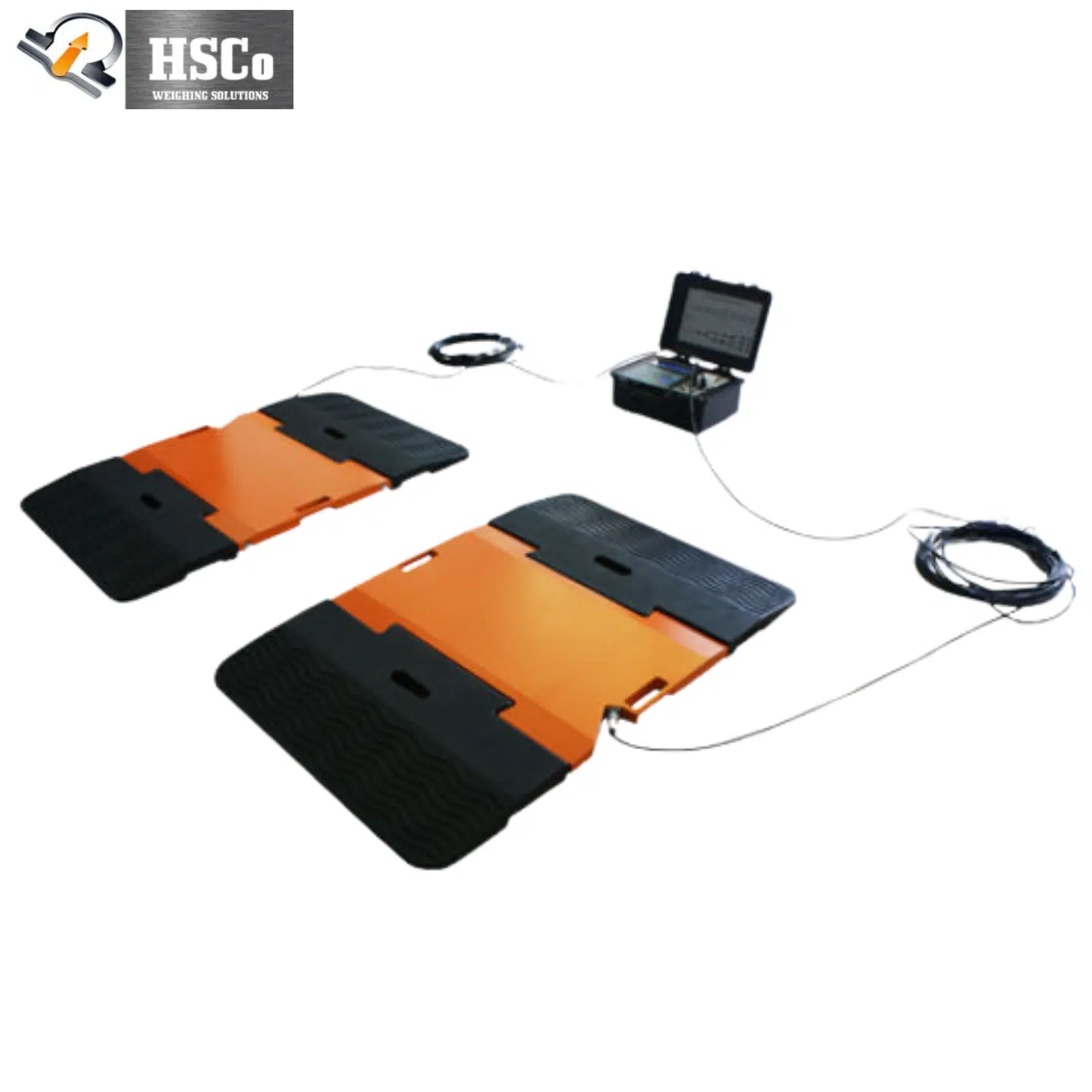

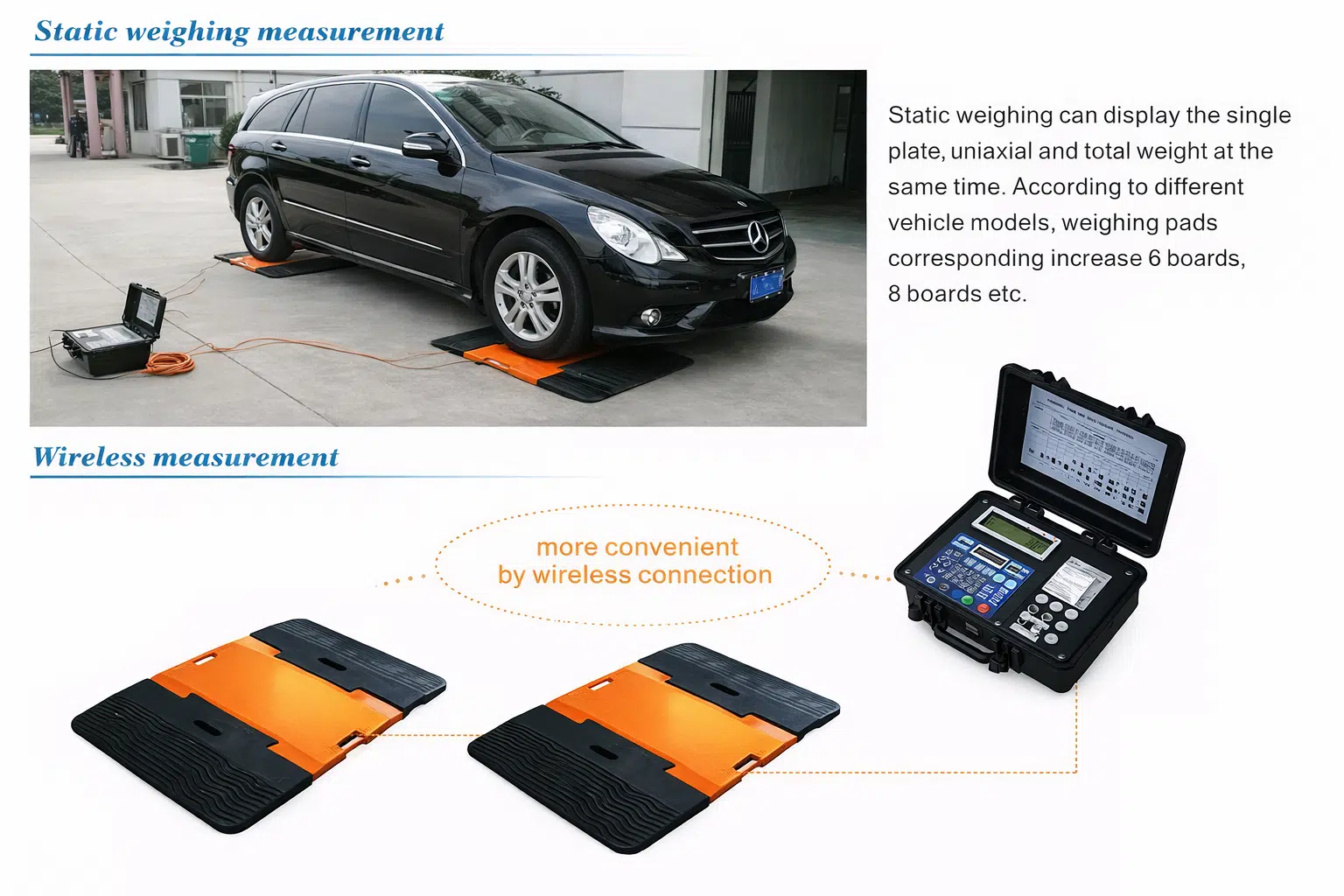

- Works with indicators and printers; a portable weighing indicator and wireless link are shown in the photos.
Models
| Model | Pad size L × B × H (mm) | Ramp size (mm) | Capacity per pad | Axle capacity |
|---|---|---|---|---|
| HSCWP110 | 400 × 300 × 40 | 400 × 250 | 10 t | 20 t |
| HSCWP120 | 400 × 500 × 40 | 400 × 250 | 20 t | 40 t |
| HSCWP130 | 700 × 450 × 40 | 700 × 350 | 30 t | 60 t |
| HSCWP135 | 800 × 450 × 40 | 800 × 350 | 35 t | 70 t |
| HSCWP140 | 900 × 550 × 40 | 900 × 350 | 40 t | 80 t |
Specifications
| Type | Portable axle / wheel weigh pads |
|---|---|
| Capacity | 10 – 40 t per pad; 20 – 80 t per axle |
| Height | 40 mm |
| Surface | Anti-slip, with ramps |
| Build | Industrial-grade, weather resistant |
| Installation | No civil foundation; plug-and-play wiring |
| Readout | Wheel, axle and total vehicle weight on a digital indicator; printer compatible |
| Warranty | 1 year |
Which vehicle scale?
For a permanent installation, see the HSCMTW weighbridge; to weigh vehicles without stopping, the in-motion weighbridge. Browse all vehicle scales.
Where it is used
Mining and quarry sites, cargo and shipment terminals, logistics and warehousing, transport and freight companies, and manufacturing plants; also for overload checks and temporary or remote weighing.
Questions buyers ask
No. The pads sit on a firm surface and need no civil work.
Choose by axle load: 20, 40, 60, 70 or 80 tonnes per axle with two pads.
Yes. Each pad can be carried and placed by a single operator.
The weight on each wheel pad, each axle and the whole vehicle.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your vehicles and axle loads. Hindustan Scale Company, Mumbai, since 1955.
