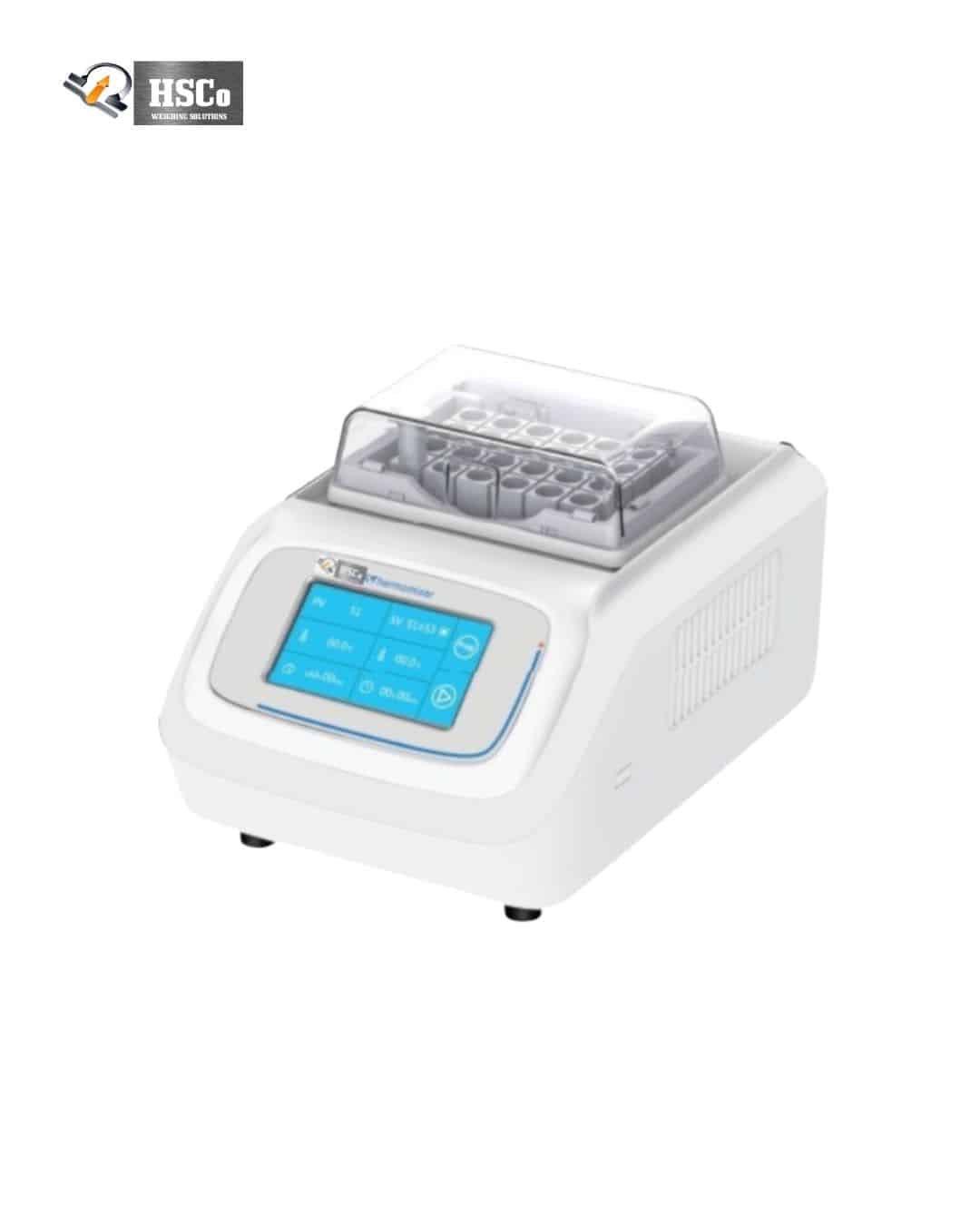

The HSCo HSC-CTDBTS constant temperature dry bath heats sample tubes in a heating block for incubation, enzyme reactions and nucleic acid denaturation in molecular biology, pharmaceutical and research labs. It is run from a 4.3-inch capacitive touch screen, holds its temperature within ±0.5 °C, is even across the block to ±0.3 °C, and heats from 20 to 100 °C in 15 minutes or less. The heating model works from 5 °C above room temperature to 100 °C; the heating-and-cooling model from −10 to 100 °C. Up to 5 program steps can be stored, and it alarms at the end of a run or on a fault.
Why labs choose the touch-screen dry bath
- 4.3-inch touch screen with live temperature and time.
- Accurate: ±0.5 °C control, ±0.3 °C across the block.
- Fast: 20 to 100 °C in 15 minutes or less.
- Heating, or heating and cooling down to −10 °C.
- Programs: up to 5 steps; end and fault alarm; temperature calibration.
Specifications
| HSC-CTDBTS-20S (heating) | HSC-CTDBTS-20LS (heating and cooling) | |
|---|---|---|
| Temperature range | RT +5 to 100 °C | −10 to 100 °C (RT −25 °C, no load) |
| Cooling time | – | ≤ 15 min (100 → 20 °C) |
| Heating / cooling method | PI heated film | Semiconductor |
| Input power | 150 W | 250 W |
| Control accuracy | ≤ ±0.5 °C; display 0.1 °C |
|---|---|
| Block uniformity | ≤ ±0.3 °C |
| Heating time | ≤ 15 min (20 → 100 °C) |
| Timer | 0 – 99 h 59 min, or continuous |
| Display / control | 4.3-inch high-definition capacitive touch screen |
| Standard block | 35 holes × 2 ml |
| Optional blocks | HX-A to HX-N |
| PC control | Optional USB port |
| Power | 200 – 240 V, 50 / 60 Hz, 1.0 A (110 V version available for the heating model) |
| Size | 280 × 210 × 180 mm; packed 340 × 270 × 240 mm |
| Fuse | 250 V, 3 A, 5 × 20 |
| Warranty | 1 year |
Which dry bath?
With a keypad, see the constant temperature dry bath HSC-CTDB; to hold samples at 4 °C, the 4 °C electronic dry bath; to shake while heating, the shaking dry bath, touch-screen type. Browse all baths.
Where it is used
Sample incubation, enzyme reactions and nucleic acid denaturation in molecular biology, pharmaceutical and research labs.
Questions buyers ask
The HSC-CTDBTS-20LS heats and cools, from −10 to 100 °C. The HSC-CTDBTS-20S heats only, from 5 °C above room temperature.
The standard block holds 35 × 2 ml tubes; other blocks (HX-A to HX-N) are available.
Yes. Up to 5 steps can be combined, and it alarms at the end or on a fault.
Order or ask for a quotation
Choose the type and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
