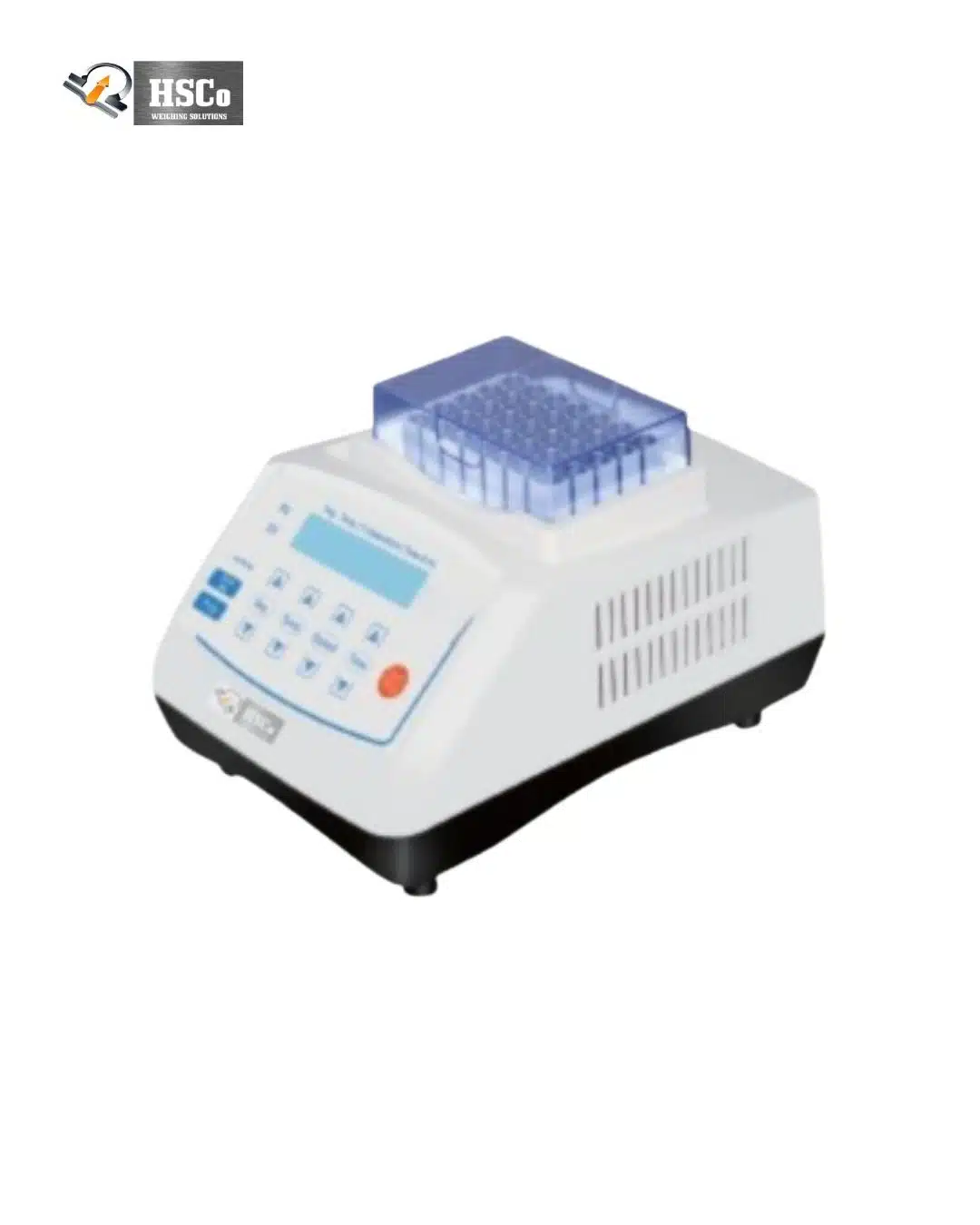

The HSCo HSC-SDBKT shaking dry bath heats and shakes tubes at the same time, for enzyme reactions, DNA extraction and protein denaturation. A digital keypad sets the temperature, shaking speed (200 to 1,800 rpm) and time, shown on an LED screen, with up to 5 program steps. The block holds its temperature within ±0.5 °C and is even to ±0.3 °C, and it heats from 25 to 100 °C in 15 minutes or less. The heating model works from 5 °C above room temperature to 100 °C; the heating-and-cooling model from 0 to 100 °C.
Why labs choose the keypad model
- Heats and shakes together: 200 to 1,800 rpm.
- Simple keypad programming, LED display.
- Accurate: ±0.5 °C control, ±0.3 °C across the block.
- Programs: up to 5 steps; or run continuously.
- Compact: 270 × 190 × 190 mm.
Specifications
| HSC-SDBKT-20T (heating) | HSC-SDBKT-20TL (heating and cooling) | |
|---|---|---|
| Temperature range | RT +5 to 100 °C | 0 to 100 °C (RT −25 °C, no load) |
| Cooling time | – | ≤ 25 min (20 → 0 °C) |
| Power supply | AC 220 V, 50 Hz | AC 220 / 120 V, 50 / 60 Hz |
| Power | 200 W | 250 W |
| Net / gross weight | 8 / 9.5 kg | 9.5 / 11 kg |
| Control accuracy | ±0.5 °C; display 0.1 °C |
|---|---|
| Block uniformity | ≤ ±0.3 °C |
| Heating time | ≤ 15 min (25 → 100 °C); heating film |
| Shaking | 200 – 1,800 rpm; 2 – 3 mm amplitude, horizontal rotation |
| Timer | 0 – 99 h 59 min (0 = continuous) |
| Programs | Up to 5 points |
| Standard block | 35 × 2.0 ml tubes |
| Optional blocks | HX-A to HX-N |
| Size | 270 × 190 × 190 mm; packed 335 × 335 × 250 mm |
| Fuse | 250 V, 3 A, Ø 5 × 20 |
| Warranty | 1 year |
Which dry bath?
With a 4.3-inch touch screen, see the shaking dry bath, touch-screen type. Without shaking, the constant temperature dry bath HSC-CTDB. Browse all baths.
Where it is used
Enzyme reactions, DNA extraction and protein denaturation in research, biotechnology and pharmaceutical labs.
Questions buyers ask
The HSC-SDBKT-20TL heats and cools, from 0 to 100 °C. The HSC-SDBKT-20T heats only, from 5 °C above room temperature.
200 to 1,800 rpm.
Yes. Set the timer to 0 and it runs continuously.
Order or ask for a quotation
Choose the type and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
