Comparison Microscope HSC-CM – Side-by-Side Viewing, 10× to 1000×, for Forensics
Price on Request
Comparison microscope for forensic and materials work: dual optical paths for side-by-side viewing, 10×–200× (to 1,000× with optional objectives), plan objectives, top and bottom LED or halogen lighting, double mechanical stage, vibration-resistant frame; camera, software and polarising filters optional. 1-year warranty.

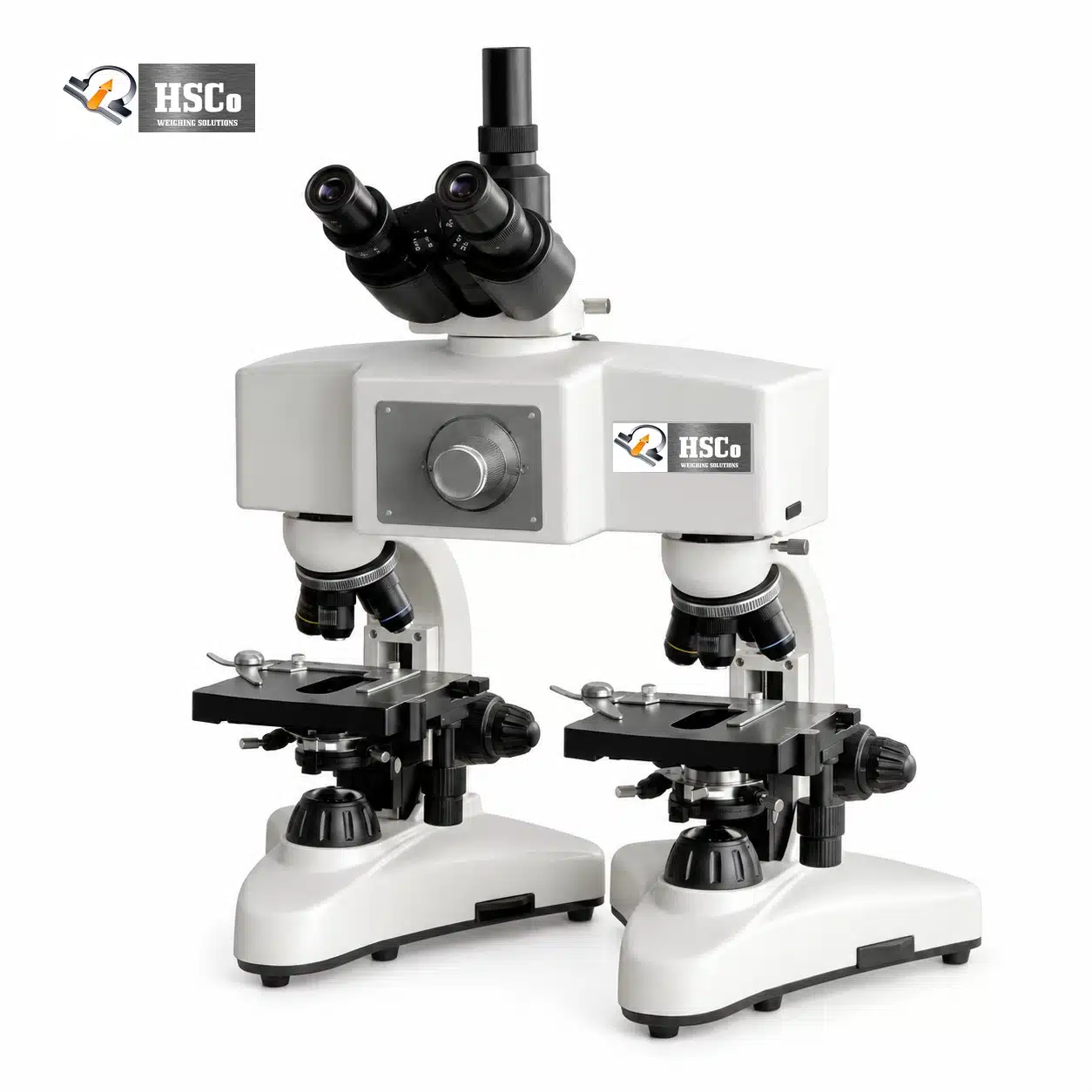

The HSCo comparison microscope shows two specimens side by side in one view through twin optical paths, so an examiner can spot small differences in structure, texture and marks. It magnifies from 10× to 200×, up to 1,000× with optional objectives, and has top and bottom lighting and a double mechanical stage. It is used in forensic labs to compare bullets, cartridge cases, fibres and tool marks, and in metallurgy and quality control.
Why labs choose it
- Two specimens, one view: dual optical paths for side-by-side comparison.
- 10× – 200×, up to 1,000× with optional objectives.
- Top and bottom lighting, each adjustable.
- Double mechanical XY stage for precise positioning.
- Vibration-resistant frame for steady viewing.
- Camera, software and polarising filters available.
Specifications
| Optical system | Dual optical paths, simultaneous viewing |
|---|---|
| Magnification | 10× – 200× (up to 1,000× with optional objectives) |
| Eyepieces | Wide-field 10× / 20×, diopter adjustment |
| Objectives | Plan achromatic or plan semi-apochromatic 4×, 10×, 40×, 100× (oil immersion optional) |
| Working distance | 10 – 50 mm, depending on objective |
| Illumination | Top and bottom, LED or halogen, adjustable intensity |
| Stage | Double mechanical stage, X-Y movement |
| Focus | Coaxial coarse and fine, with tension adjustment |
| Frame | Heavy-duty, vibration resistant |
| Options | Digital camera; measurement and documentation software; polarising filters |
| Warranty | 1 year |
Other microscopes
For routine slides and cell cultures, see the light and inverted microscopes; for questioned documents, the video spectral comparator. Browse all laboratory analytical instruments.
Where it is used
Forensic science labs (ballistics, fibres, tool marks, documents), metallurgy, materials research and quality control.
Questions buyers ask
It shows two specimens side by side in one field of view, so their features can be compared directly.
10× to 200×, and up to 1,000× with optional objectives.
Yes, with the optional digital camera and software.
Ask for a quotation
Tell us your specimens and the magnification you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
