Tensile Testing Machine HSC-TTM – 5 to 300 kN, Touchscreen, Stress-Strain Software
Price on Request
Tensile testing machine HSC-TTM: 5 kN to 300 kN by model, ±1% of reading, 0.5 – 500 mm/min, 500 – 2,000 mm travel, touchscreen controller, software with live stress-strain graphs and reports, hydraulic or mechanical grips. For metals, plastics, rubber and textiles. 1-year warranty.

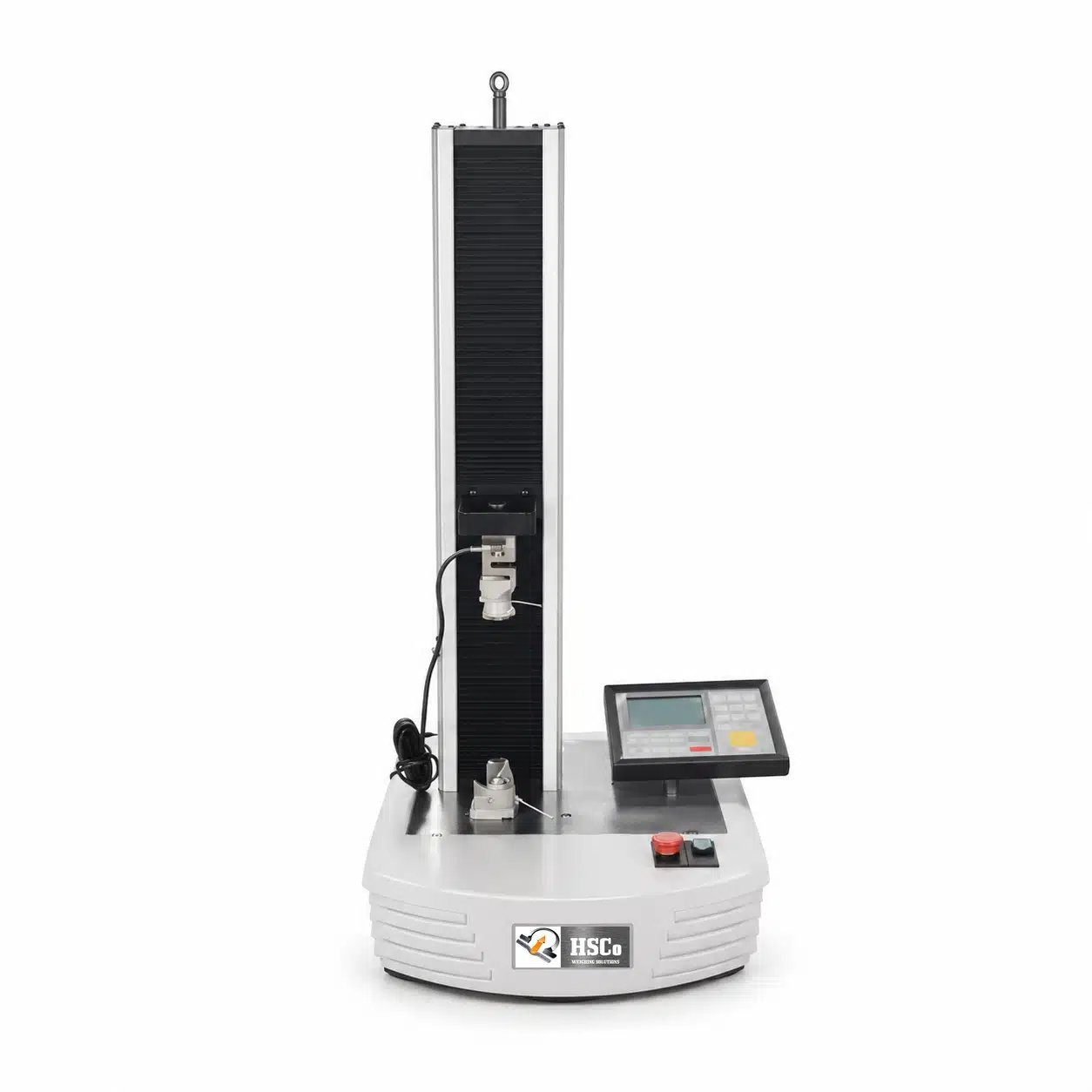

The HSCo HSC-TTM tensile testing machine measures how strong a material is when it is pulled: tensile strength, elongation and breaking point. It tests metals, plastics, rubber, textiles and composites, with capacities from 5 kN to 300 kN depending on the model and ±1% of reading accuracy. A touchscreen digital controller runs the test, and the software draws stress-strain graphs live and makes reports automatically. Grips, extensometers and a temperature chamber are available to suit the material.
Why buyers choose it
- 5 kN to 300 kN models, ±1% of reading.
- Test speed 0.5 – 500 mm/min, crosshead travel 500 – 2,000 mm.
- Touchscreen controller and software with live graphs, stress-strain analysis, automatic reports and data export.
- Grips for every material: hydraulic or mechanical grips for metals, plastics, rubber and textiles.
- Safe: emergency stop, overload protection and protective guards.
Specifications
| Model | HSC-TTM |
|---|---|
| Capacity | 5 kN – 300 kN (by model) |
| Accuracy | ±1% of reading |
| Crosshead travel | 500 – 2,000 mm |
| Test speed | 0.5 – 500 mm/min, adjustable |
| Load measurement | High-precision load cell with digital display |
| Control | Digital controller with touch screen |
| Software | Real-time graphs, stress-strain analysis, automatic reports, data export |
| Grips | Hydraulic or mechanical, for metals, plastics, rubber and textiles |
| Frame | Single or dual column |
| Safety | Emergency stop, overload protection, protective guards |
| Power | 220 – 240 V, 50/60 Hz |
| Options | Extensometers; temperature chamber; grips for thin films and wires |
| Warranty | 1 year |
Where it is used
Quality control, research and industrial testing labs: metals, plastics, rubber, textiles and composites.
Questions buyers ask
Tensile strength, elongation and breaking point of a sample as it is pulled apart.
Models run from 5 kN to 300 kN. Tell us your material and sample size and we will suggest one.
Yes. The software draws live graphs, analyses stress and strain, and generates reports automatically.
Order or ask for a quotation
Tell us the material, capacity and grips you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
