Column Load Cell HSC LCZ-2 – 5 to 450 t, Double Ball Head, Welded IP68
Price on Request
Column (canister) load cell HSC LCZ-2: 5 to 450 t, double ball head, compression, argon-arc welded and fully sealed to IP68, 1.5 or 2.0 mV/V, ±0.02% FS, safe 150% / limit 180%. For truck scales, dynamic rail scales and large-tonnage hoppers. 1-year warranty.
The HSC LCZ-2 is a heavy-capacity column (canister) load cell from 5 t up to 450 t, for truck scales, dynamic rail scales and large-tonnage hoppers. Its double ball-head design takes the load in compression. The body is argon-arc welded and fully sealed to IP68 against water and dust, and it responds fast with strong overload resistance. Sensitivity is 1.5 or 2.0 mV/V, with ±0.02% FS total error.
Why scale makers choose it
- 5 to 450 t in one family.
- Fully welded and sealed, IP68.
- Double ball head, compression loading.
- Accurate: ±0.02% FS total error.
- Easy to install.
Specifications
| Model | HSC LCZ-2 |
|---|---|
| Type | Column (canister), double ball head, compression |
| Capacities | 5, 20, 45, 90, 120, 160, 180, 225, 450 t |
| Sensitivity | 1.5 ± 0.02 mV/V or 2.0 ± 0.02 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.03% FS |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Protection | IP68, argon-arc welded, fully sealed |

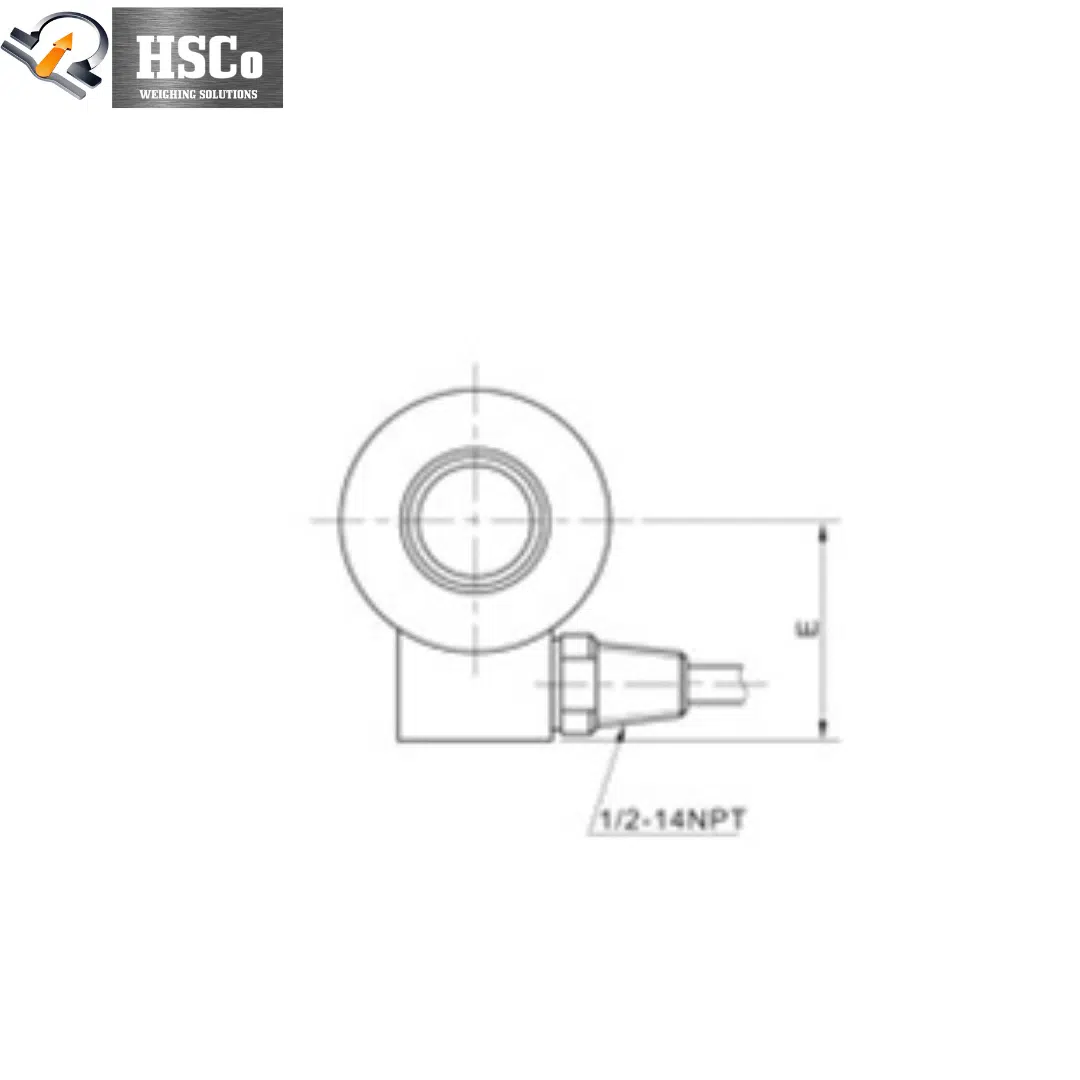

| Cable entry | ½-14 NPT (from the drawing) |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Warranty | 1 year |

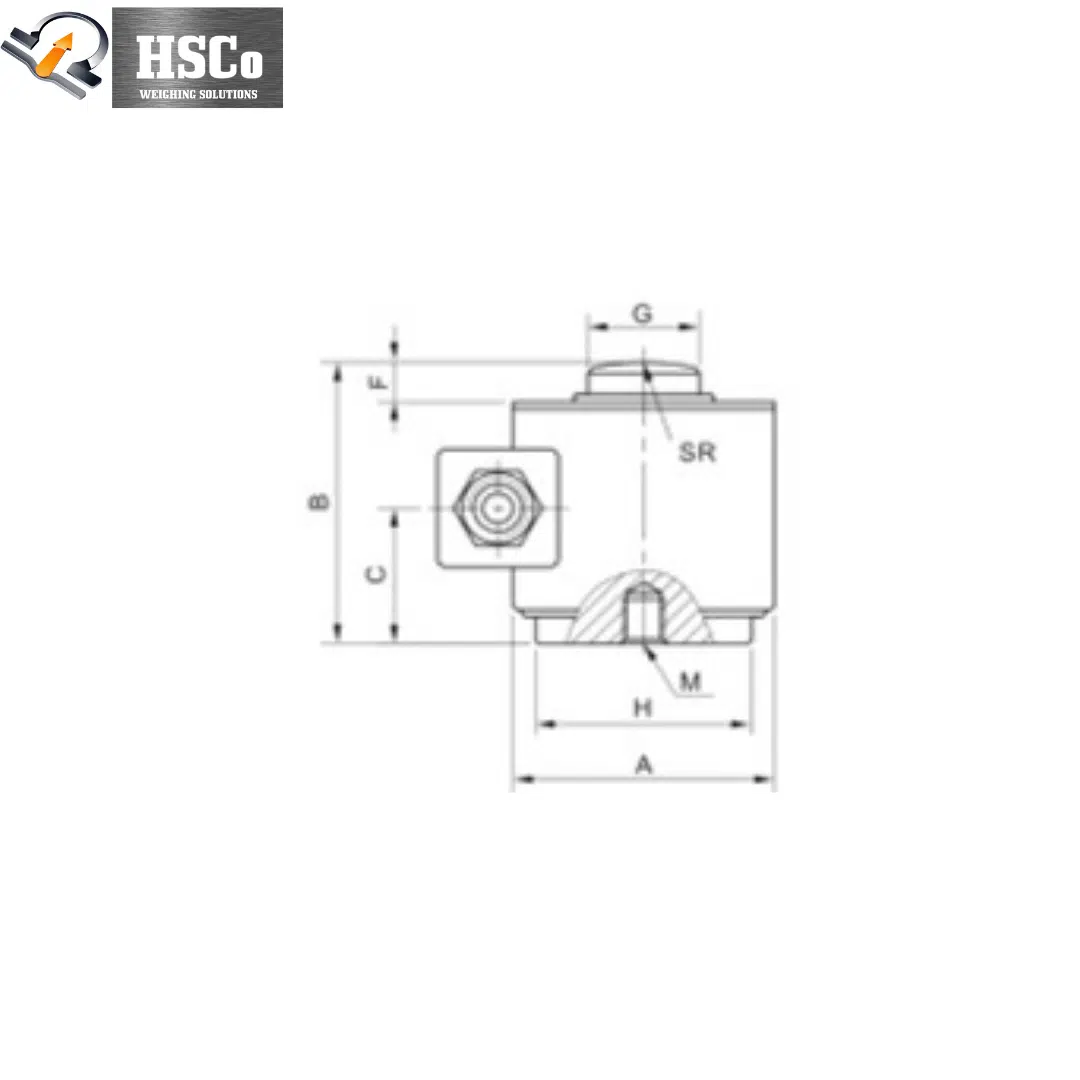

Mounting thread (M on the drawing):
| Capacity | Thread (inch) | Thread (metric) | Thread depth |
|---|---|---|---|
| 5 – 20 t | ½-20 | M12 × 1.75 | 13 mm |
| 45 t | ¾-16 | M18 × 1.5 | 18 mm |
| 90 – 180 t | ¾-16 | M20 × 1.5 | 25 mm |
| 225 t | ¾-16 | M20 × 1.5 | 25 mm |
| 450 t | ¾-16 | M20 × 1.5 | 32 mm |
Which load cell?
For other column cells, see the LCZ-1 or the LCZ-3 (20 – 40 t, threaded ends); for a weighbridge shear beam, the LCQ-11. To connect several cells, use a junction box. Browse all load cells.
Where it is used
Electronic truck scales (weighbridges), dynamic rail scales and large-tonnage hopper scales.
Questions buyers ask
5, 20, 45, 90, 120, 160, 180, 225 and 450 tonnes.
Yes. It is argon-arc welded and fully sealed to IP68.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
