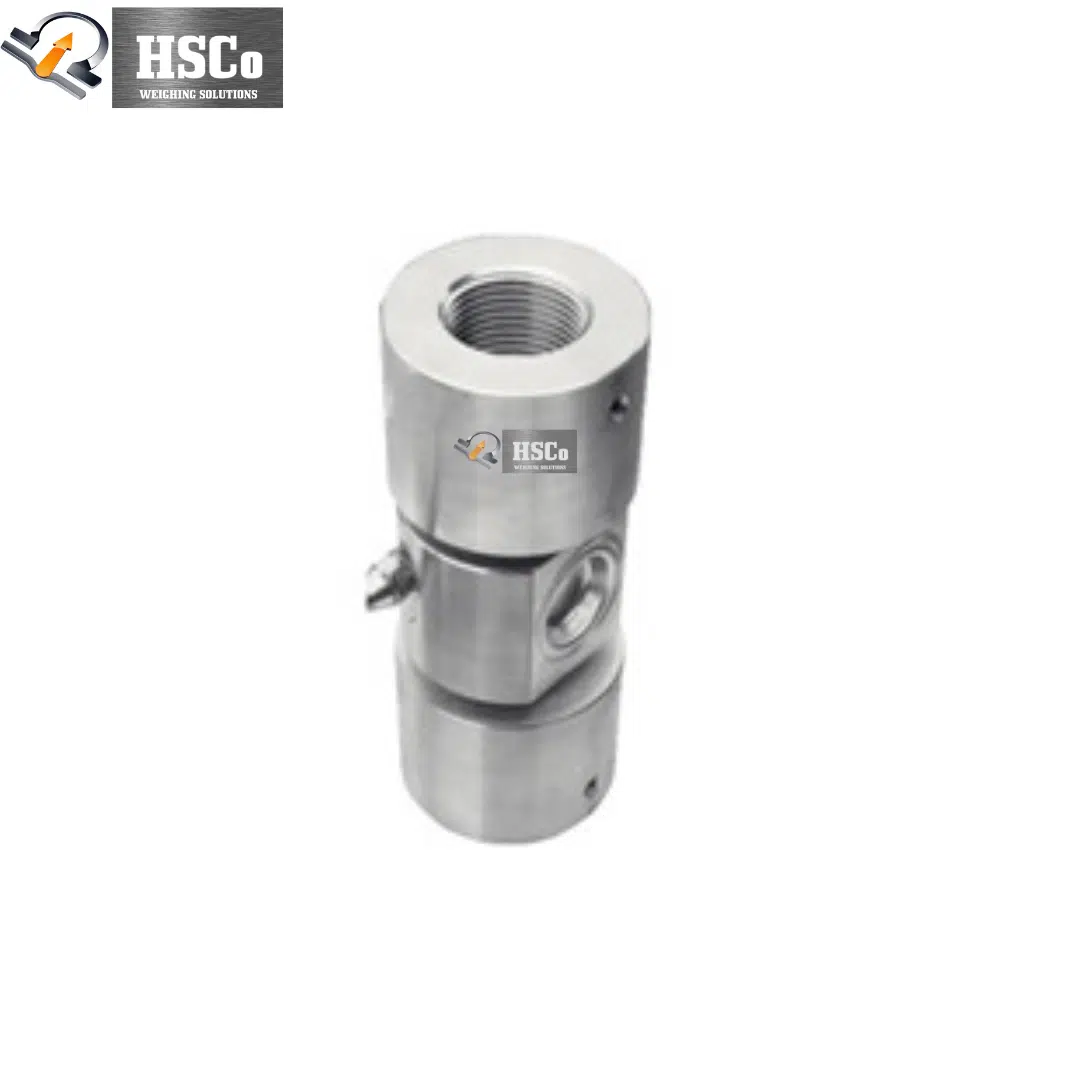

The HSC LCZ-3 is a compact column (spoke) load cell with threaded ends, for 20, 30 and 40 tonne tension or compression loads. It is easy to install, comes with a rubber or welded seal, and is used in electromechanical scales, hook scales, hopper scales and batching systems in cement plants.
Why scale makers choose it
- Compact column design with threaded ends for easy fitting.
- 20, 30 and 40 t capacities.
- Rubber or welded seal for good protection.
- Accurate: ±0.02% FS total error.
Specifications
| Model | HSC LCZ-3 |
|---|---|
| Type | Column, threaded ends |
| Capacities | 20, 30, 40 t |
| Sensitivity | 2.0 ± 0.05 mV/V |
| Total error | ±0.02% FS max |
| Creep (30 min) | 0.03% FS |
| Zero balance | ±1% FS |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended |
| Seal | Rubber or welded |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Warranty | 1 year |

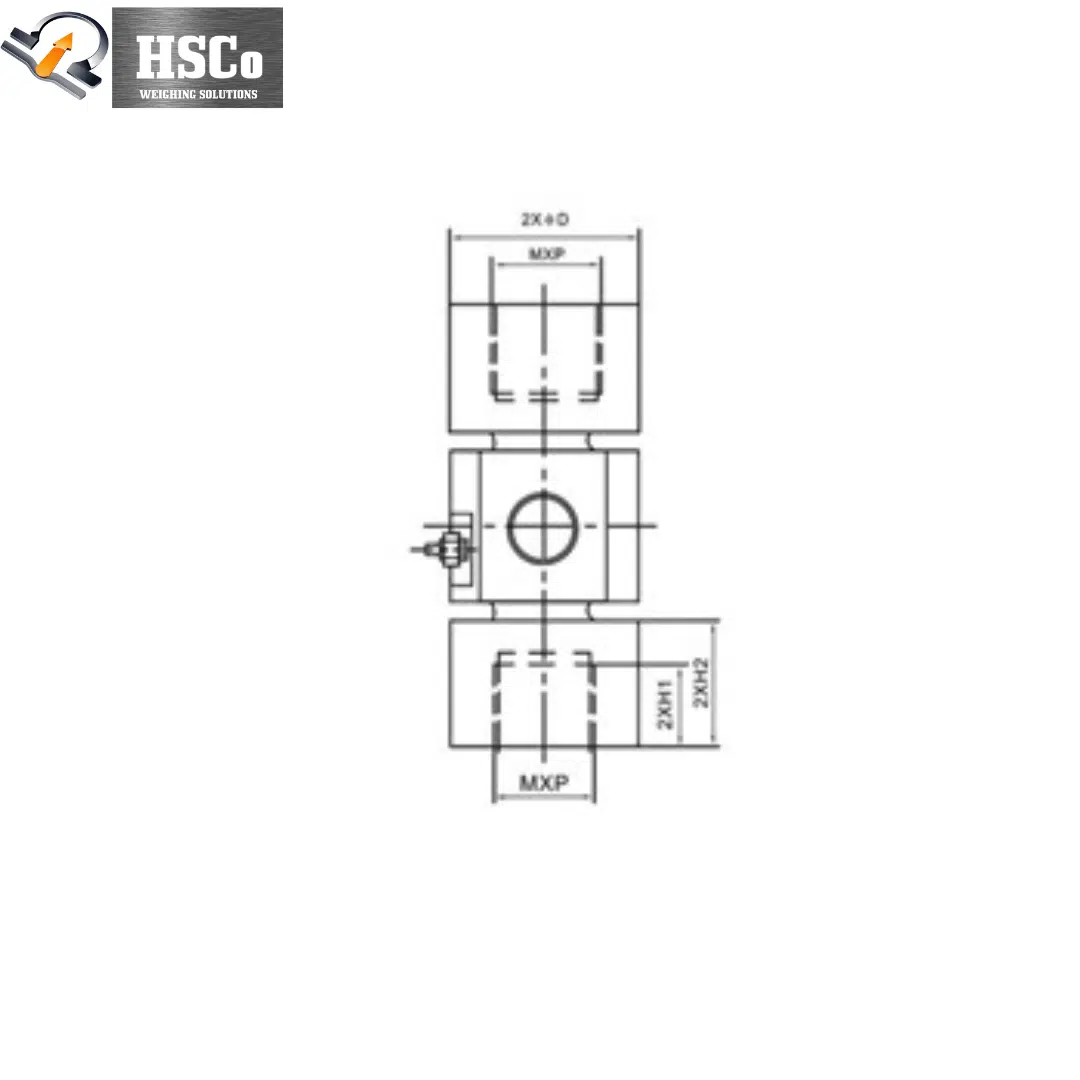

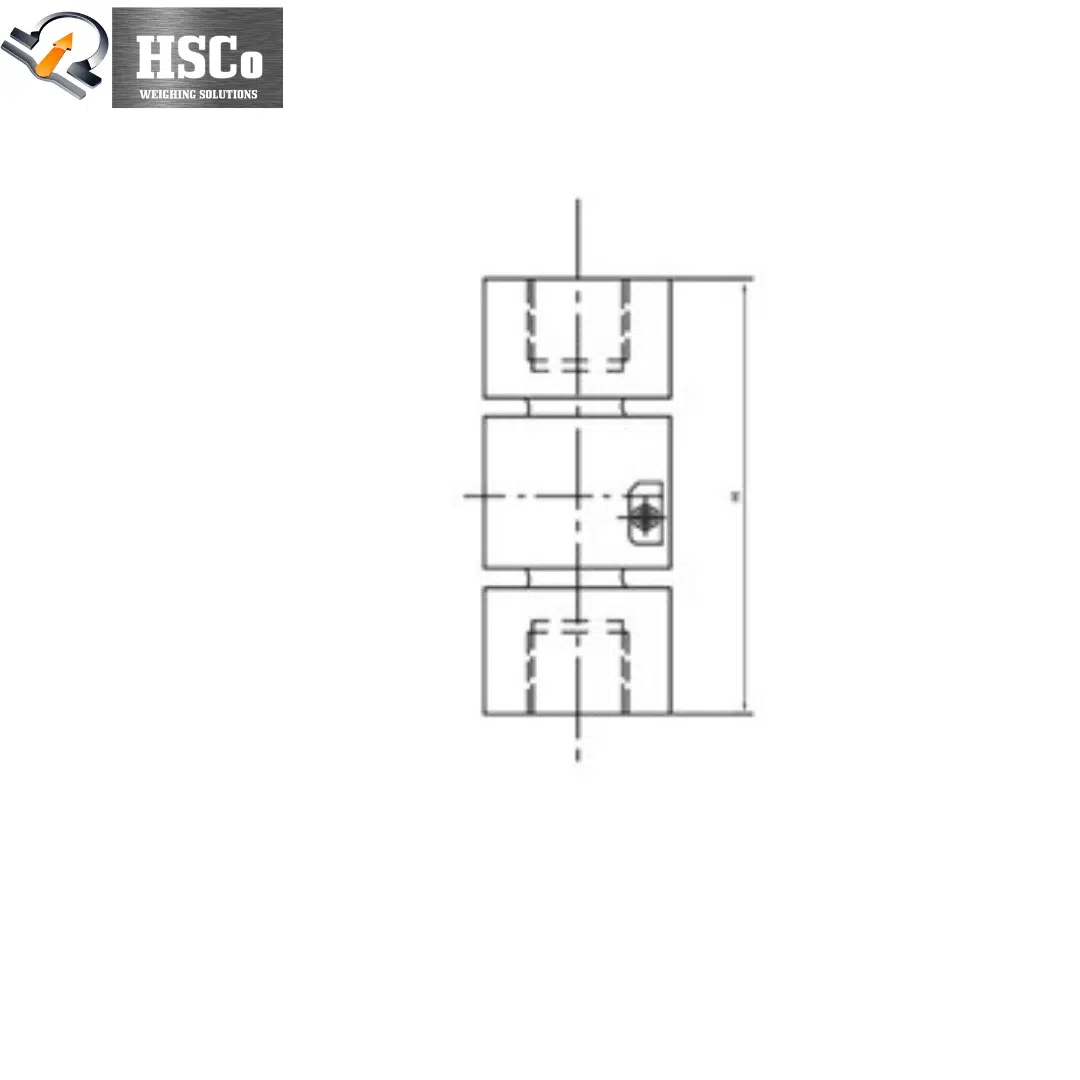

Dimensions (mm), from the drawing:
| Capacity | H | H1 | H2 | ΦD | Thread |
|---|---|---|---|---|---|
| 20 t | 185 | 38 | 57 | 78 | M42 |
| 30, 40 t | 225 | 50 | 77 | 105 | M56 × 3 |
Which load cell?
For a low-profile compression cell, see the LCL-5 (2.5 – 30 t); for an S-type cell up to 20 t, the LCS-2. Browse all load cells.
Where it is used
Electromechanical scales, hook and crane scales, hopper scales, and batching systems in cement plants.
