Column Load Cell HSC LCZ-4 – 20 to 60 t, Double Ball Head, IP68
Price on Request
Column load cell HSC LCZ-4: double ball-head (rocker) structure, fully sealed by argon-arc welding to IP68, fast response, strong overload resistance, easy to install. 20, 30, 40 and 60 t. For weighbridges, rail scales and large-capacity scales. 1-year warranty.

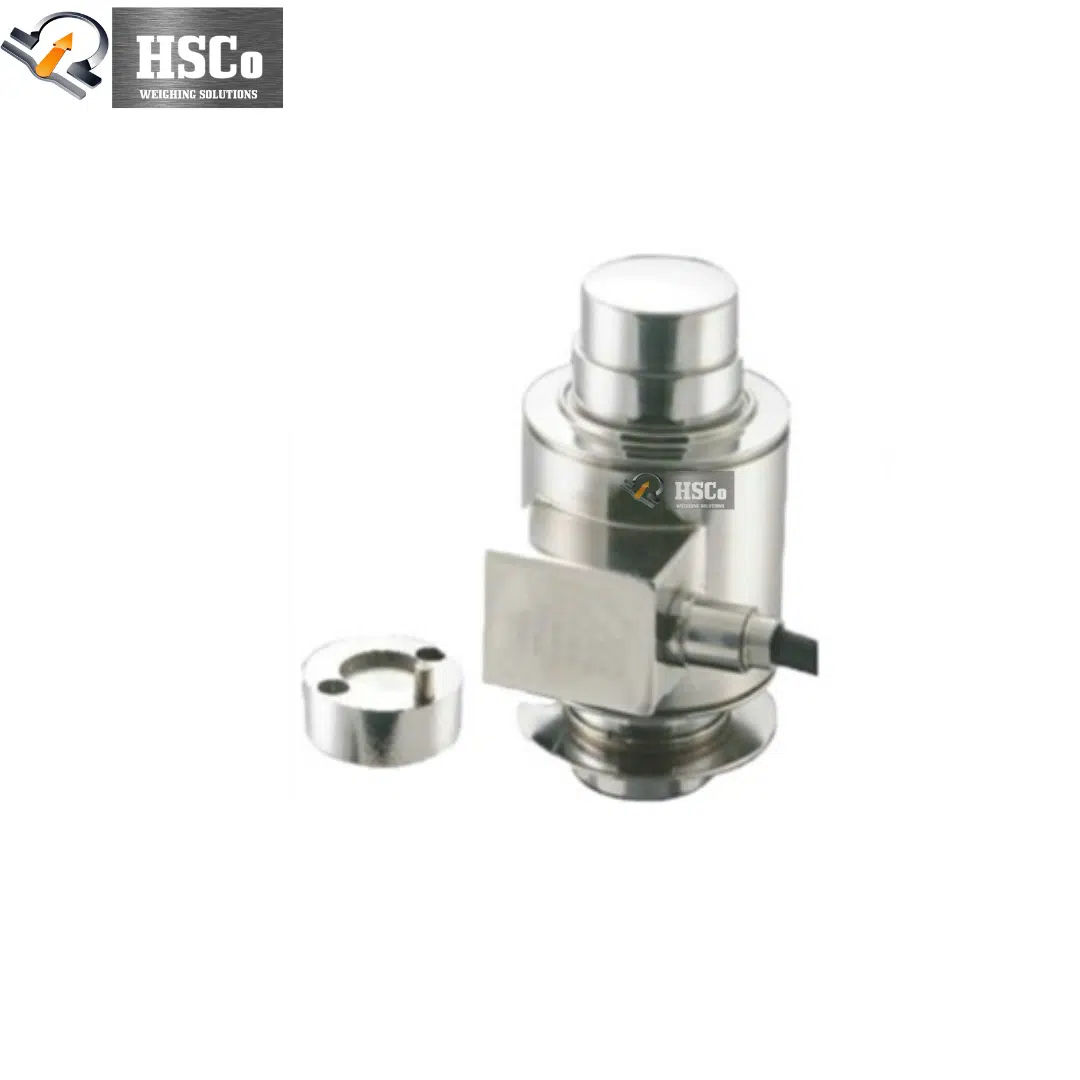

The HSC LCZ-4 is a fully sealed column load cell with a double ball-head (rocker) structure, for 20 to 60 tonne compression loads. It is argon-arc welded, waterproof and dustproof to IP68, responds fast, stands up well to overload and is easy to install. It is used to build electronic truck scales (weighbridges), rail scales and other large-capacity scales.
Why scale makers choose it
- Double ball-head column: self-centring under load.
- Fully sealed to IP68 by argon-arc welding: waterproof and dustproof.
- Fast response and strong resistance to overload.
- Easy to install.
- 20 to 60 t capacities.
Specifications
| Model | HSC LCZ-4 |
|---|---|
| Type | Column, double ball head, compression |
| Capacities | 20, 30, 40, 60 t |
| Sealing | Fully sealed, argon-arc welded; IP68 |
| Wiring | Input + red, input − black, output + green, output − white, shield yellow |
| Warranty | 1 year |

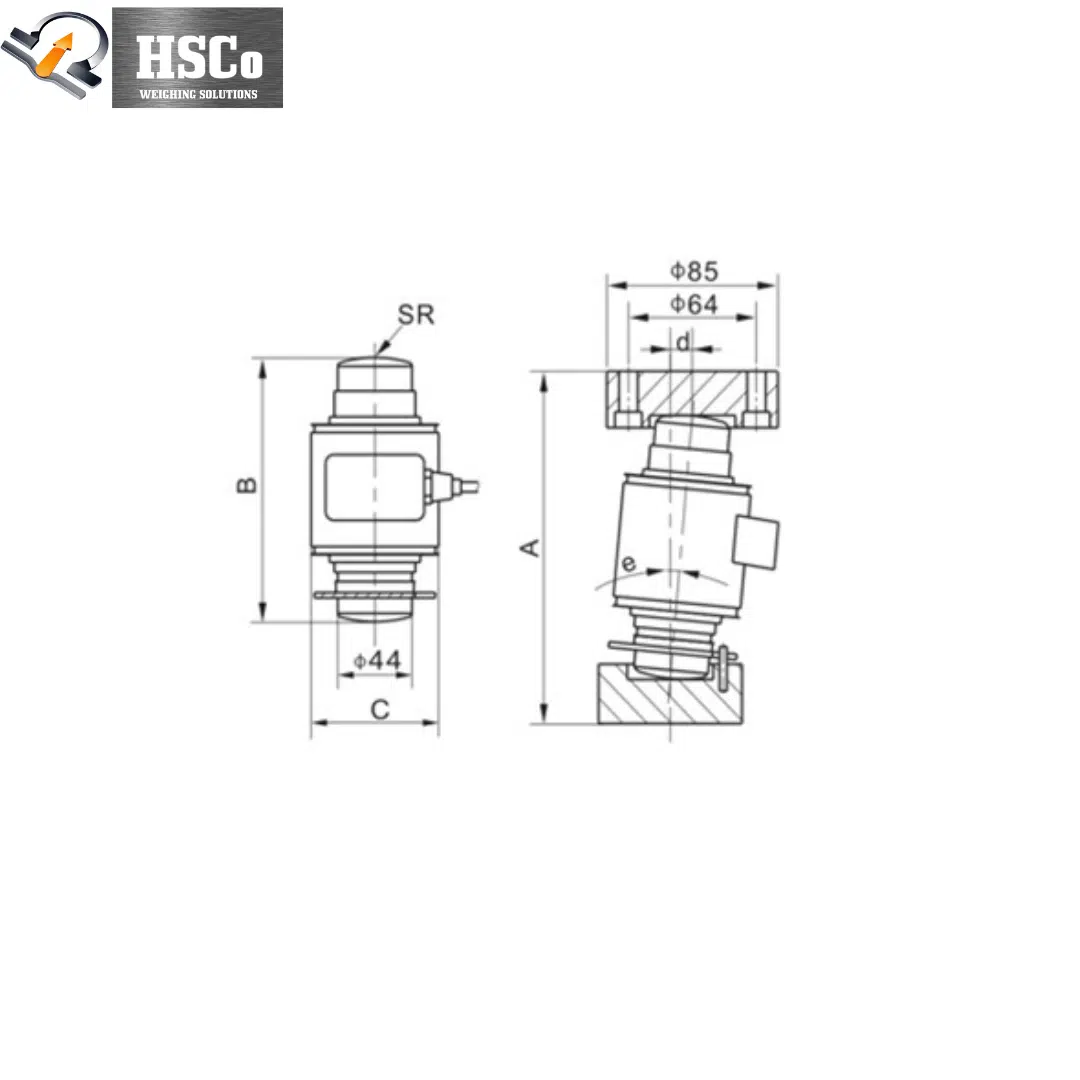

Dimensions (mm), letters as on the drawing:
| Capacity | A | B | d (max) | C | e (min) | SR |
|---|---|---|---|---|---|---|
| 20 t | 200 | 150 | 13 | 76 | 5 | 130 |
| 30 t | 200 | 150 | 13 | 76 | 3 | 160 |
| 40 t | 200 | 150 | 13 | 76 | 3 | 180 |
| 60 t | 200 | 210 | 11 | 88 | 3 | 220 |
Which load cell?
For a column cell with threaded ends, see the LCZ-3 (20 – 40 t); for a low-profile compression cell, the LCL-5 (2.5 – 30 t). Browse all load cells.
Where it is used
Electronic truck scales (weighbridges), rail scales, and large-capacity material scales.
Questions buyers ask
20, 30, 40 and 60 tonnes.
Yes. It is fully sealed by argon-arc welding to IP68, waterproof and dustproof.
Input + red, input − black, output + green, output − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
